2017 Street Bike VXN150 - VXN150 (BK82) [010] STAND & FOOTREST diagramme

1
Yamaha Motors
STAND, SIDE3C1-F7311-00
Requis: 1
STAND, SIDE
Prix indisponible

2
Yamaha Motors
SPRING, TENSION90506-28800
Requis: 1
SPRING, TENSION
Prix indisponible

3
Yamaha Motors
BOLT, FLANGE90105-10888
Requis: 1
BOLT, FLANGE
Prix indisponible
-10%
$26.09
Vous économisez $2.90
-10%

5
Yamaha Motors
92990-10600-0092901-10600-00
Requis: 1
WASHER, PLATE
Remplace à : 92902-10600-00
Non disponible à l'achatRecherche dans l'inventaire national
$2.70
Vous économisez $0.30
-10%

6
Yamaha Motors
NUT95617-10100-00
Requis: 1
NUT, U
Remplace à : 95612-10100-00
$8.54
Vous économisez $0.95

7
Yamaha Motors
HOSE (L70)90445-21848
Requis: 1
HOSE (L70)
Prix indisponible

8
Yamaha Motors
STAND, MAIN3C1-F7111-10
Requis: 1
STAND, MAIN
Prix indisponible

9
Yamaha Motors
SHAFT, MAIN STAND1PA-F7112-00
Requis: 1
SHAFT, MAIN STAND
Prix indisponible

10
Yamaha Motors
WASHER, PLATE90201-16813
Requis: 1
WASHER, PLATE
Prix indisponible
-15%

11
Yamaha Motors
Cotter Pin91490-30030-00
Requis: 1
PIN, COTTER
Remplace à : 91401-30030-00
En stock
5+ en stock
$7.22
Vous économisez $1.27

12
Yamaha Motors
SPRING, TENSION90506-35812
Requis: 1
SPRING, TENSION
Prix indisponible

13
Yamaha Motors
HOSE (L70)90445-21848
Requis: 1
HOSE (L70)
Prix indisponible

14
Yamaha Motors
BRACKET, FOOTREST 12TP-F7452-00-P0
Requis: 1
BRACKET, FOOTREST 1
Prix indisponible

15
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-08803
Requis: 2
BOLT, HEXAGON SOCKET HEAD
Prix indisponible

16
Yamaha Motors
FOOTREST 15BP-F7411-00
Requis: 1
FOOTREST 1
Prix indisponible
-10%

17
Yamaha Motors
Hexagon Socket Bolt90110-10026-00
Requis: 1
BOLT, HEXAGON SOCKET HEAD
$11.24
Vous économisez $1.25
-10%
$11.24
Vous économisez $1.25
-10%

19
Yamaha Motors
Plate Washer90201-173U5-00
Requis: 1
WASHER, PLATE
$9.44
Vous économisez $1.05

20
Yamaha Motors
FOOTREST5BP-F7451-00
Requis: 1
FOOTREST
Prix indisponible

21
Yamaha Motors
COVER, FOOTREST3C1-F7413-00
Requis: 1
COVER, FOOTREST
Prix indisponible
-20%

22
Yamaha Motors
Pan Head Screw98502-05014-00
Requis: 2
SCREW, PAN HEAD
En stock
5+ en stock
$1.92
Vous économisez $0.48
-10%
Non disponible à l'achatRecherche dans l'inventaire national
$2.56
Vous économisez $0.29
Non disponible à l'achatRecherche dans l'inventaire national
$0.61
-10%

25
Yamaha Motors
Torsion Spring90508-183B9-00
Requis: 1
SPRING, TORSION
$4.14
Vous économisez $0.46

26
Yamaha Motors
BRACKET, FOOTREST 22TP-F7462-00-P0
Requis: 1
BRACKET, FOOTREST 2
Prix indisponible

27
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-08803
Requis: 2
BOLT, HEXAGON SOCKET HEAD
Prix indisponible

28
Yamaha Motors
FOOTREST5BP-F7461-00
Requis: 1
FOOTREST
Prix indisponible

29
Yamaha Motors
COVER, FOOTREST3C1-F7413-00
Requis: 1
COVER, FOOTREST
Prix indisponible
-20%

30
Yamaha Motors
Pan Head Screw98502-05014-00
Requis: 2
SCREW, PAN HEAD
En stock
5+ en stock
$1.92
Vous économisez $0.48
-10%
$4.94
Vous économisez $0.55
Non disponible à l'achatRecherche dans l'inventaire national
$0.61

33
Yamaha Motors
PEDAL, BRAKE1PA-F7211-10
Requis: 1
PEDAL, BRAKE
Prix indisponible

34
Yamaha Motors
LEVER1PA-F7262-00
Requis: 1
LEVER
Prix indisponible
-10%

35
Yamaha Motors
91311-06020-0091312-06020-00
Requis: 1
BOLT, HEXAGON SOCKET HEAD
Non disponible à l'achatRecherche dans l'inventaire national
$1.89
Vous économisez $0.21

36
Yamaha Motors
SPRING, RETURN3C1-F7216-00
Requis: 1
SPRING, RETURN
Prix indisponible

37
Yamaha Motors
FOOTREST, REAR 13C1-F7431-01
Requis: 1
FOOTREST, REAR 1
Prix indisponible

38
Yamaha Motors
FOOTREST, REAR 23C1-F7441-01
Requis: 1
FOOTREST, REAR 2
Prix indisponible
-10%

39
Yamaha Motors
Compression Spring90501-12743-00
Requis: 2
SPRING, COMPRESSION
$4.94
Vous économisez $0.55

40
Yamaha Motors
BALL93501-04830
Requis: 2
BALL
Prix indisponible
-10%
Non disponible à l'achatRecherche dans l'inventaire national
$2.56
Vous économisez $0.29
Non disponible à l'achatRecherche dans l'inventaire national
$0.61

43
Yamaha Motors
SPRING, RETURN5BP-27426-00
Requis: 1
SPRING, RETURN
Prix indisponible
* La quantité requise montrée est la quantité utilisée par assemblage. Les prix sont basés sur une quantité d'une seule unité et tous les articles sont vendus individuellement.

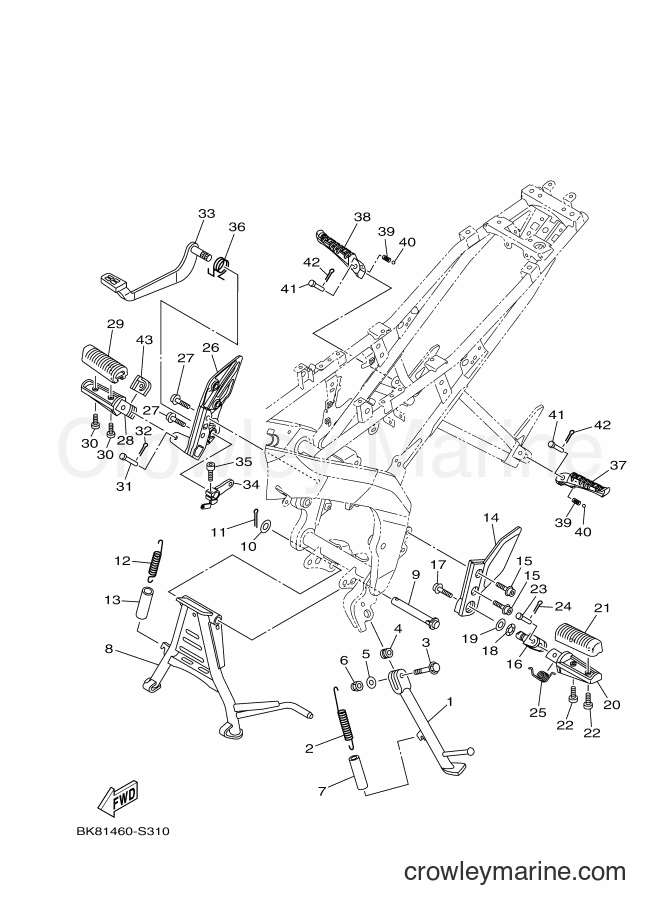

![Yamaha Motors VXN150 (BK82) [010] - STAND & FOOTREST](https://cdn.crowleymarine.com/yamaha/54SijUT5.png)
