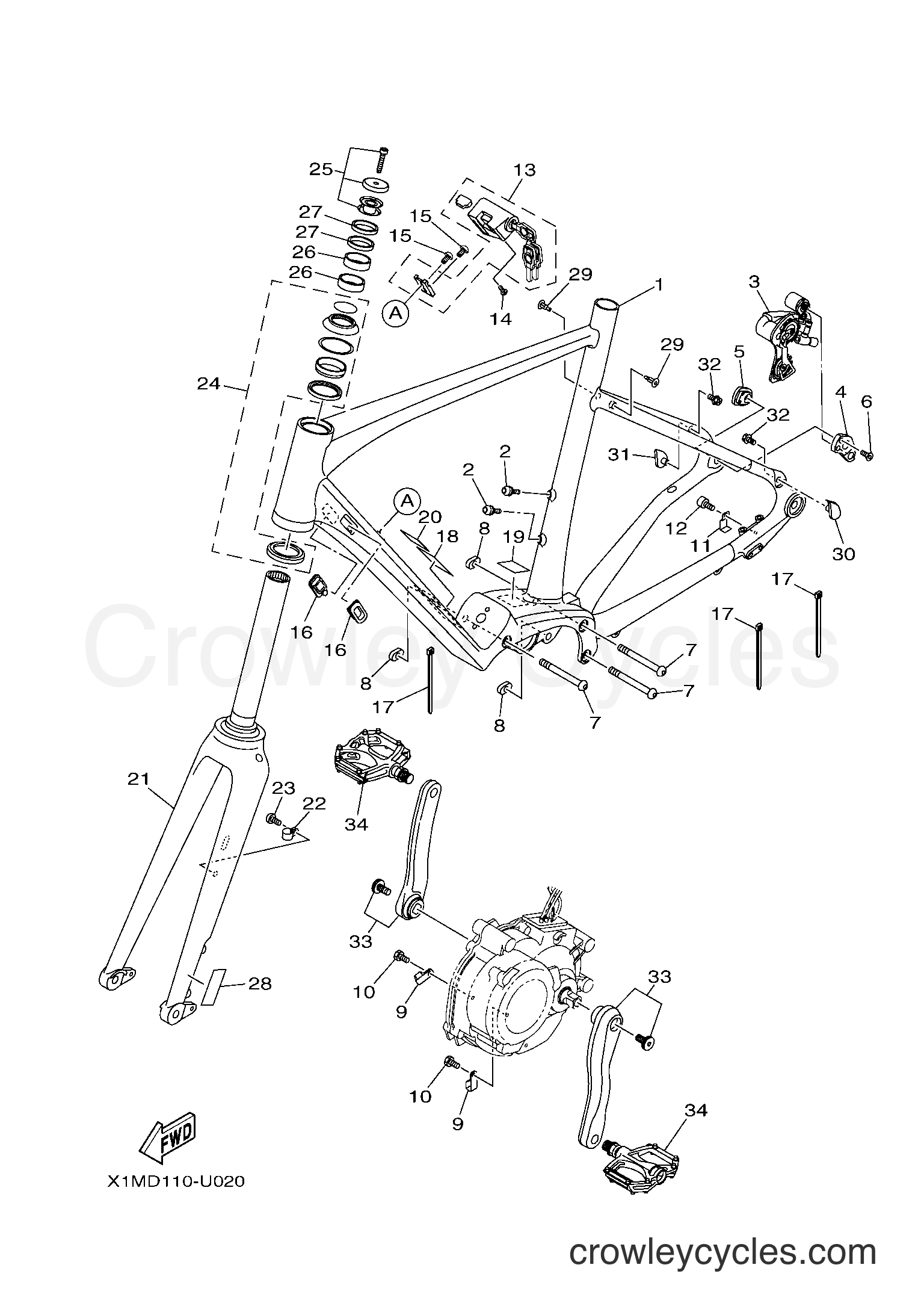

All Years Bicycle Wabash - PW70WS (X1MF) USA FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

All Years Bicycle Wabash - PW70WS (X1MF) USA - FRAME All Years Bicycle Wabash - PW70WS (X1MF) USA - FRAME
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
Frame Complete
X1M-F1110-90-0X ← X1M-F1110-90-0X

FRAME COMP.

Notes:X1MS MODELS
$886.00
You save $46.99. $932.99
Cross Ship
1
Frame Complete
X1M-F1110-A0-0X ← X1M-F1110-A0-0X

FRAME COMP.

Notes:X1MT MODELS
$911.00
You save $48.99. $959.99
Cross Ship
1
Frame Complete
X1M-F1110-B0-0X ← X1M-F1110-B0-0X

FRAME COMP.

Notes:X1MU MODELS
$911.00
You save $48.99. $959.99
Cross Ship
2
BOLT
X1M-F1531-00-00 ← X1M-F1531-00-00

BOLT

$2.04
You save 5%. $2.15
Cross Ship
3
Rear Derailler
X1M-F535B-20-00 ← X1M-F535B-20-00

REAR DERAILLER

$404.95
You save $21.04. $425.99
Cross Ship
5
Bracket
X1M-F112K-00-00 ← X1M-F112K-00-00

BRACKET 5

$8.07
You save 5%. $8.49
Cross Ship
6
Screw
X1M-F11C6-00-00 ← X1M-F11C6-00-00

SCREW 2

$2.09
You save 5%. $2.20
Cross Ship
7
BOLT
X0N-F2125-10-00 ← X0N-F2125-10-00

BOLT

$3.14
You save 5%. $3.30
Cross Ship
8
Special Nut
X0N-F3393-00-00 ← X0N-F3393-00-00

NUT, SPECIAL

$9.95
$9.99
Cross Ship
9
Wire Guide
X1M-F1339-00-00 ← X1M-F1339-00-00

GUIDE, WIRE

$2.95
You save 5%. $3.10
Cross Ship
10
SCREW 6
X1M-F11D3-00-00 ← X1M-F11D3-00-00

SCREW 6

$2.00
You save 5%. $2.10
Cross Ship
11
Bracket
X1M-F256L-00-00 ← X1M-F256L-00-00

BRACKET

$6.17
You save 5%. $6.49
Cross Ship
12
Screw 3
X1M-F11C7-00-00 ← X1M-F11C7-00-00

SCREW 3

$2.09
You save 5%. $2.20
Cross Ship
13
LOCK COMP.
X1M-H256A-00-00 ← X1M-H256A-00-00

LOCK COMP.

$92.14
You save $4.85. $96.99
Cross Ship
14
BOLT
X1M-F1738-00-00 ← X1M-F1738-00-00

BOLT

$3.14
You save 5%. $3.30
Cross Ship
15
Screw 4
X1M-F11C8-00-00 ← X1M-F11C8-00-00

SCREW 4

$1.89
You save 5%. $1.99
Cross Ship
16
GROMMET, WATER TUBE (UPPER)
X1M-F1719-30-00 ← X1M-F1719-30-00

GROMMET

$11.39
You save 5%. $11.99
Cross Ship
19
Caution Label
X1M-H4306-00-00 ← X1M-H4306-00-00

LABEL, CAUTION

$2.09
You save 5%. $2.20
Cross Ship
20
Caution Label
X1M-F2298-00-00 ← X1M-F2298-00-00

LABEL, CAUTION

$2.09
You save 5%. $2.20
Cross Ship
21
FORK COMP. 1
X1M-F3780-90-0X ← X1M-F3780-90-0X

FORK COMP. 1

Notes:X1MS MODELS
$242.24
You save $12.75. $254.99
Cross Ship
21
FORK COMP. 1
X1M-F3780-A0-0X ← X1M-F3780-A0-0X

FORK COMP. 1

Notes:X1MT MODELS
$248.89
You save $13.10. $261.99
Cross Ship
21
FORK COMP. 1
X1M-F3780-B0-0X ← X1M-F3780-B0-0X

FORK COMP. 1

Notes:X1MU MODELS
$248.89
You save $13.10. $261.99
Cross Ship
22
Wire Guide
X0N-F1339-00-00 ← X0N-F1339-00-00

GUIDE, WIRE

$2.04
You save 5%. $2.15
Cross Ship
23
SCREW 6
X1M-F11D3-00-00 ← X1M-F11D3-00-00

SCREW 6

$2.00
You save 5%. $2.10
Cross Ship
24
Steering Set
X0N-F341A-00-00 ← X0N-F341A-00-00

STEERING SET

$64.95
You save $3.04. $67.99
Cross Ship
25
COMMUTATOR END CAP ASSEMBLY
X0N-F287K-10-00 ← X0N-F287K-10-00

CAP ASSY

$7.12
You save 5%. $7.49
Cross Ship
26
Collar 1
X0N-F3363-00-00 ← X0N-F3363-00-00

COLLAR 1

$5.95
$5.99
Cross Ship
27
Collar
X0N-F3364-00-00 ← X0N-F3364-00-00

COLLAR 2

$5.49
Cross Ship
28
Caution Label
X1M-F389C-00-00 ← X1M-F389C-00-00

LABEL, CAUTION

$2.09
You save 5%. $2.20
Cross Ship
29
Cap
X1M-F143A-10-00 ← X1M-F143A-10-00

CAP

$2.09
You save 5%. $2.20
Cross Ship
30
Cap
X1M-F1399-00-00 ← X1M-F1399-00-00

CAP

Notes:L.H.
$6.17
You save 5%. $6.49
Cross Ship
31
Cap
X1M-F1399-10-00 ← X1M-F1399-10-00

CAP

Notes:R.H.
$5.99
You save 20%. $7.49
Ships immediately
1 in stock
32
Bolt
X1M-F1532-00-00 ← X1M-F1532-00-00

BOLT 2

$1.99
You save 10%. $2.20
Ships immediately
1 in stock
33
Crank Set
X1M-F781A-10-00 ← X1M-F781A-10-00

CRANK SET

Notes:X1MS, X1MT MODELS
$54.99
You save $5.00. $59.99
Cross Ship
33
CRANK SET
X1M-F781A-21-00

CRANK SET

Notes:X1MU MODELS
$89.95
You save $5.04. $94.99
Cross Ship
34
PEDAL SET
X1M-F785A-00-00 ← X1M-F785A-00-00

PEDAL SET

$19.95
You save $1.04. $20.99
Cross Ship
