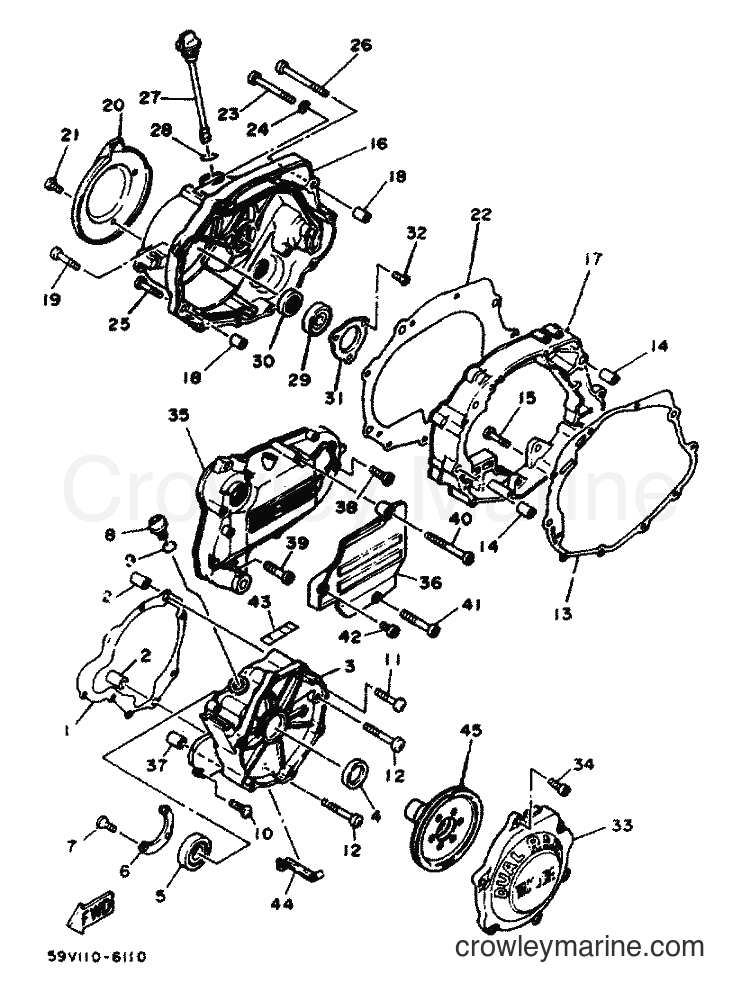

1986 ATV YFM225N - YFM225N (59V) [999] CRANKCASE COVER 1 diagram
![Yamaha Motors YFM225N (59V) [999] - CRANKCASE COVER 1](https://cdn.crowleymarine.com/yamaha/DLnn61Nb.png)
-10%
1
Yamaha Motors
Crankcase Cover Gasket3GH-15451-00-00
Required: 1
GASKET, CRANKCASE COVER 1
Supersedes: 59V-15451-01-00
$17.09
You save $1.90
-50%
2
Yamaha Motors
Dowel Pin99530-12016-00
Required: 2
PIN, DOWEL
Supersedes: 99510-12016-00
In stock
Only 2 remaining
$2.45
You save $2.45
-10%
No longer availableSearch Nationwide Inventory
$269.09
You save $29.90
-10%
$17.54
You save $1.95
-10%
5
Yamaha Motors
BEARING93306-07801-00
Required: 1
BEARING
Supersedes: 93306-20547-00
$54.89
You save $6.10
-10%
$9.89
You save $1.10
-10%
7
Yamaha Motors
Countersunk Screw90151-05023-00
Required: 1
SCREW, COUNTERSUNK
Supersedes: 90151-05031-00
$9.44
You save $1.05
-15%
$7.22
You save $1.27
-10%
10
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 6
SCREW, PAN HEAD
Supersedes: 98506-06025-00
$3.65
You save $0.40
-10%
11
Yamaha Motors
Pan Screw98507-06040-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98506-06040-00
$2.90
You save $0.32
-20%
12
Yamaha Motors
Pan Head Screw98507-06060-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98506-06060-00
In stock
Only 2 remaining
$6.39
You save $1.60
-10%
13
Yamaha Motors
CRANKCASE COVER GASKET 34BD-15462-00-00
Required: 1
GASKET, CRANKCASE COVER 3
Supersedes: 5H0-15462-00-00
$31.49
You save $3.50
-50%
14
Yamaha Motors
Dowel Pin99530-12016-00
Required: 2
PIN, DOWEL
Supersedes: 99510-12016-00
In stock
Only 2 remaining
$2.45
You save $2.45
-10%
15
Yamaha Motors
Pan Head Screw98580-06040-00
Required: 3
SCREW, PAN HEAD
$8.54
You save $0.95
-10%
16
Yamaha Motors
CRANKCASE COVER 399999-02617-00
Required: 1
COVER, CRANKCASE 3
Supersedes: 21V-15431-00-00
No longer availableSearch Nationwide Inventory
$199.79
You save $22.20
-10%
17
Yamaha Motors
SPACER, ENGINE21V-15317-01-00
Required: 1
SPACER, ENGINE MOUNT
Supersedes: 21V-15317-00-00
No longer availableSearch Nationwide Inventory
$88.19
You save $9.80
-50%
18
Yamaha Motors
Dowel Pin99530-12016-00
Required: 2
PIN, DOWEL
Supersedes: 99510-12016-00
In stock
Only 2 remaining
$2.45
You save $2.45
-10%
19
Yamaha Motors
Pan Screw98507-06040-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98506-06040-00
$2.90
You save $0.32
-10%
20
Yamaha Motors
Cover Protector21V-15499-00-00
Required: 1
PROTECTOR, COVER
No longer availableSearch Nationwide Inventory
$34.19
You save $3.80
-50%
21
Yamaha Motors
Bind Screw98907-06014-00
Required: 3
SCREW, BIND
Supersedes: 98906-06014-00
In stock
Only 1 remaining
$4.00
You save $4.00
-10%
22
Yamaha Motors
4BD-15463-00-0021V-15462-01-00
Required: 1
GASKET, CRANKCASE COVER 3
No longer availableSearch Nationwide Inventory
$17.99
You save $2.00
-10%
23
Yamaha Motors
Pan Screw98507-06070-00
Required: 5
SCREW, PAN HEAD
Supersedes: 98506-06070-00
$8.99
You save $1.00
-10%
$8.09
You save $0.90
-10%
25
Yamaha Motors
Pan Screw98507-06040-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98506-06040-00
$2.90
You save $0.32
-10%
26
Yamaha Motors
Pan Screw98507-06080-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98506-06080-00
$6.29
You save $0.70
-10%
27
Yamaha Motors
Oil Level Plug1UY-15362-01-00
Required: 1
PLUG, OIL LEVEL
$17.09
You save $1.90
-15%
In stock
Only 3 remaining
$7.64
You save $1.35
-10%
29
Yamaha Motors
BEARING93306-20326-00
Required: 1
BEARING
Supersedes: 93306-20313-00
No longer availableSearch Nationwide Inventory
$18.89
You save $2.10
-10%
$11.24
You save $1.25
-10%
31
Yamaha Motors
BEARING COVER PLATE21V-15381-00-00
Required: 1
PLATE, BEARING COVER
No longer availableSearch Nationwide Inventory
$14.39
You save $1.60
-10%
32
Yamaha Motors
Countersunk Screw90151-06025-00
Required: 3
SCREW, COUNTERSUNK
$7.64
You save $0.85
-10%
33
Yamaha Motors
CRCS COVER ASSY (L)59V-15410-01-00
Required: 1
CRANKCASE COVER ASSY 1
No longer availableSearch Nationwide Inventory
$98.99
You save $11.00
-50%
34
Yamaha Motors
Bolt (4MY)91317-06025-00
Required: 6
BOLT
Supersedes: 91316-06025-00
In stock
Only 1 remaining
$1.33
You save $1.33
-10%
35
Yamaha Motors
CRANKCASE COVER59V-15421-00-00
Required: 1
COVER, CRANKCASE 2
No longer availableSearch Nationwide Inventory
$147.59
You save $16.40
-10%
No longer availableSearch Nationwide Inventory
$17.54
You save $1.95
-50%
37
Yamaha Motors
Dowel Pin99530-12016-00
Required: 2
PIN, DOWEL
Supersedes: 99510-12016-00
In stock
Only 2 remaining
$2.45
You save $2.45
-20%
38
Yamaha Motors
HEX SOCKET HEAD BOLT90110-06138-00
Required: 4
BOLT, HEXAGON SOCKET HEAD
In stock
Only 1 remaining
$5.19
You save $1.30
-10%
39
Yamaha Motors
Bolt (4MY)91317-06045-00
Required: 4
BOLT
Supersedes: 91316-06045-00
$4.94
You save $0.55
-10%
40
Yamaha Motors
BOLT,(4MY)91317-06080-00
Required: 1
BOLT
Supersedes: 91316-06080-00
$5.84
You save $0.65
-10%
41
Yamaha Motors
Bolt (4MY)91317-06055-00
Required: 1
BOLT
Supersedes: 91316-06055-00
$4.05
You save $0.45
-10%
42
Yamaha Motors
Bolt (4MY)91317-06016-00
Required: 1
BOLT
Supersedes: 91316-06016-00
$1.17
You save $0.13
-10%
No longer availableSearch Nationwide Inventory
$3.96
You save $0.44
-10%
No longer availableSearch Nationwide Inventory
$14.39
You save $1.60
45
Yamaha Motors
PULLEY STARTER59V-15?23-00
Required: 1
PULLEY STARTER
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
