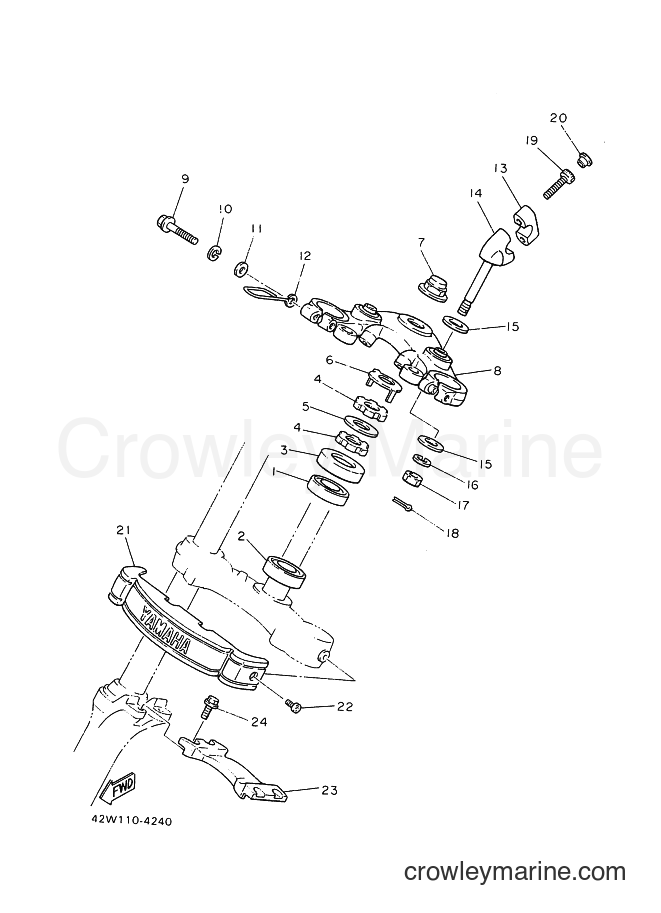

1986 Cruiser XV1000 - XV1000 (2AE) [99A] STEERING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1986 Cruiser XV1000 - XV1000 (2AE) [99A] - STEERING 1986 Cruiser XV1000 - XV1000 (2AE) [99A] - STEERING
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
Tapered Bearing, #32
93332-00008-00 ← 93332-00008

BEARING

$52.24
You save $2.75. $54.99
Cross Ship
4
Nut
90179-25004-00

NUT

$21.84
You save $1.15. $22.99
Cross Ship
6
Special Washer
26H-23418-01-00 ← 26H-23418-01

WASHER, SPECIAL

$12.34
You save 5%. $12.99
Cross Ship
7
Crown Nut
90176-22081-00

NUT, CROWN

$16.62
You save 5%. $17.49
Cross Ship
8
HANDLE CROWN
42X-W2341-01-38

CROWN, HANDLE

Notes:CLEAR BUFFING
$253.99
No longer available
12
Cable Holder
42X-23317-01-00

HOLDER, CABLE

$9.95
You save 5%. $10.49
No longer available
15
Plate Washer
90201-100A1-00 ← 90201-100A1

WASHER, PLATE

$6.64
You save 5%. $6.99
Cross Ship
17
Nut
95380-10700-00

NUT

$5.40
Cross Ship
18
Clip
90468-12006-00 ← 90468-12006

CLIP

$6.64
You save 5%. $6.99
Cross Ship
19
BOLT (3BM)
91314-08030-00

BOLT

$6.64
You save 5%. $6.99
Cross Ship
21
COVER,OUTER 1
42X-23122-00-00 ← 42X-23122-00

COVER, OUTER 1

$74.99
You save $2.00. $76.99
No longer available
22
Bind Screw
98903-05010-00 ← 98903-05010

SCREW, BIND

$1.45
No longer available
23
FORK BRACE
42H-2313A-01-00 ← 42H-2313A-01

BRACE, FORK

$164.99
You save $2.00. $166.99
No longer available
