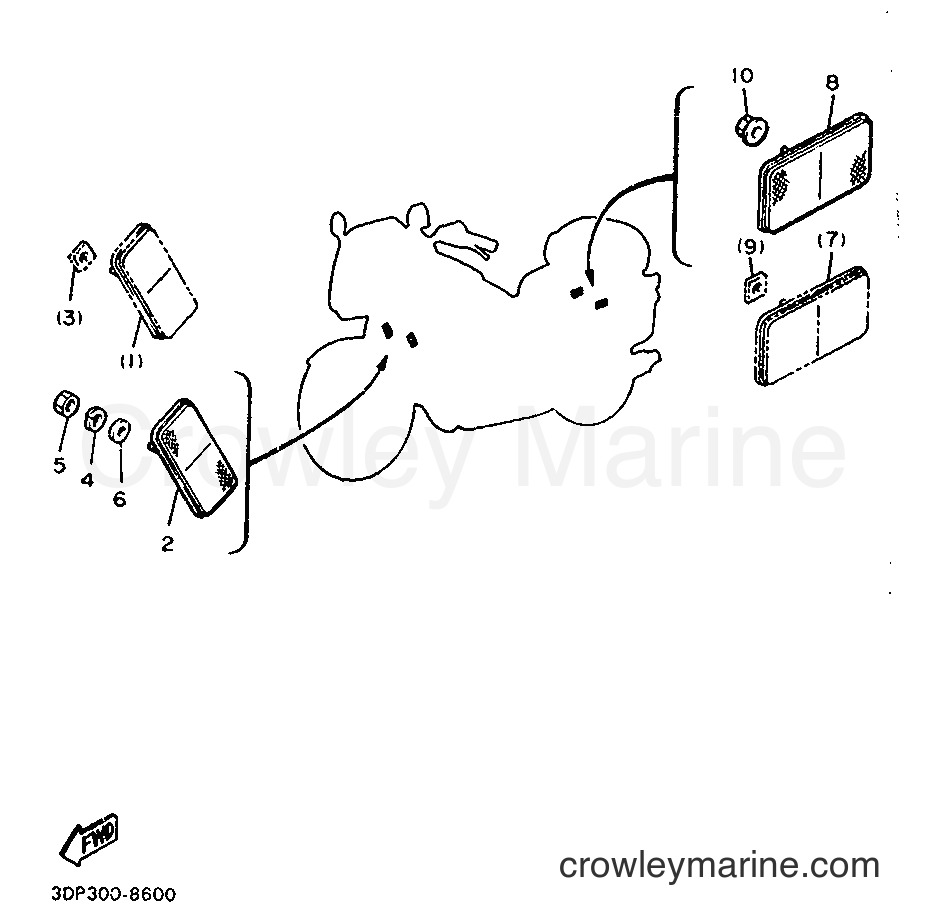

1988 Cruiser XVZ12TD - XVZ12TD (3DP1) [999] ALTERNATE FOR ELECTRICAL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XVZ12TD (3DP1) [999] - ALTERNATE FOR ELECTRICAL
Change View:
-10%
FRONT REFLECTOR ASSEMBLY
2
Yamaha Motors
FRONT REFLECTOR ASSEMBLY11H-85110-01-00
Required: 2
REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$30.99
$27.89
You save $3.10
More details
-15%
Spring Washer
4
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$0.35
$0.30
You save $0.05
More details
-10%
Hexagon Nut - Small
5
Yamaha Motors
Hexagon Nut - Small95317-05700-00
Required: 2
NUT
Supersedes: 95302-05700-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
FRONT REFLECTOR ASSEMBLY
8
Yamaha Motors
FRONT REFLECTOR ASSEMBLY11H-85110-01-00
Required: 2
REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$30.99
$27.89
You save $3.10
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
