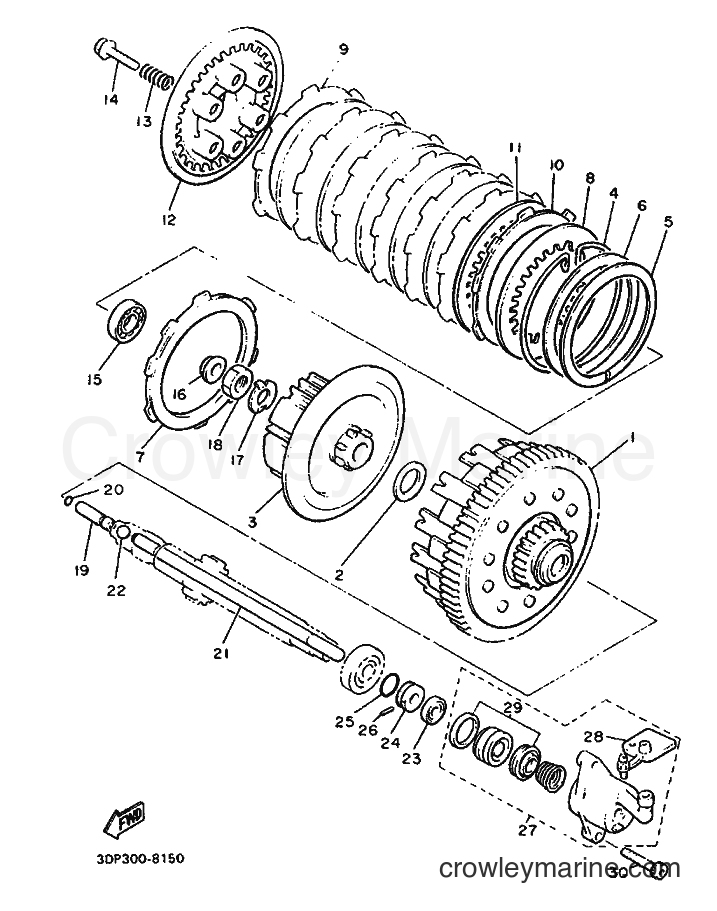

1988 Cruiser XVZ12TD - XVZ12TD (3DP1) [999] CLUTCH diagram
![Yamaha Motors XVZ12TD (3DP1) [999] - CLUTCH](https://cdn.crowleymarine.com/yamaha/np3m11hR.png)
-10%
1
Yamaha Motors
Primary Driven Gear99999-02924-00
Required: 1
PRIMARY DRIVEN GEAR COMP.
Supersedes: 26H-16150-00-00
No longer availableSearch Nationwide Inventory
$501.29
You save $55.70
-10%
2
Yamaha Motors
Thrust Plate26H-16154-00-00
Required: 1
PLATE, THRUST 1
$20.69
You save $2.30
-10%
No longer availableSearch Nationwide Inventory
$172.79
You save $19.20
-10%
4
Yamaha Motors
Clutch Boss Ring26H-16385-00-00
Required: 1
RING, CLUTCH BOSS
$8.54
You save $0.95
-10%
$30.59
You save $3.40
-10%
6
Yamaha Motors
Clutch Boss Spring26H-16383-00-00
Required: 1
SPRING, CLUTCH BOSS
No longer availableSearch Nationwide Inventory
$20.45
You save $2.27
-10%
7
Yamaha Motors
Friction Plate26H-16321-01-00
Required: 1
PLATE, FRICTION
Supersedes: 26H-16321-00-00
$22.49
You save $2.50
-10%
8
Yamaha Motors
PLATE, CLUTCH 126H-16324-10-00
Required: 1
PLATE, CLUTCH 1
Supersedes: 26H-16324-00-00
$13.94
You save $1.55
-10%
9
Yamaha Motors
26H-16307-00-0026H-16331-01-00
Required: 1
PLATE, FRICTION 2
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
-10%
10
Yamaha Motors
FRICTION PLATE26H-16307-01-00
Required: 6
PLATE, FRICTION 3
Supersedes: 26H-16307-00-00
$24.29
You save $2.70
-10%
11
Yamaha Motors
PLATE, CLUTCH 126H-16324-10-00
Required: 6
PLATE, CLUTCH 1
Supersedes: 26H-16324-00-00
$13.94
You save $1.55
-10%
12
Yamaha Motors
PRESSURE PLATE 126H-16351-00-00
Required: 1
PLATE, PRESSURE 1
No longer availableSearch Nationwide Inventory
$44.09
You save $4.90
-10%
13
Yamaha Motors
Compression Spring90501-24734-00
Required: 6
SPRING, COMPRESSION
No longer availableSearch Nationwide Inventory
$8.99
You save $1.00
-10%
14
Yamaha Motors
Screw with Washer90159-06010-00
Required: 6
SCREW, WITH WASHER
$7.64
You save $0.85
-10%
15
Yamaha Motors
BEARING93306-00315-00
Required: 1
BEARING
Supersedes: 93306-00304-00
$33.29
You save $3.70
-10%
16
Yamaha Motors
PIECE,CLUTH PUSH2H7-16386-00-00
Required: 1
PIECE, CLUTH PUSH
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
-10%
$9.44
You save $1.05
-10%
$21.59
You save $2.40
-10%
No longer availableSearch Nationwide Inventory
$8.09
You save $0.90
-15%
In stock
5+ in stock
$8.07
You save $1.42
-10%
21
Yamaha Motors
Push Rod4NK-16357-00-00
Required: 1
ROD, PUSH 2
Supersedes: 26H-16357-00-00
$20.69
You save $2.30
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
-10%
$7.64
You save $0.85
-10%
24
Yamaha Motors
Push Rod Guide26H-Y1639-00-00
Required: 1
GUIDE, PUSH ROD
Supersedes: 26H-16399-00-00
$40.49
You save $4.50
-15%
In stock
5+ in stock
$5.09
You save $0.90
-50%
In stock
Only 5 remaining
$5.25
You save $5.25
-50%
27
Yamaha Motors
Push Lever Component1FK-16381-11-00
Required: 1
PUSH LEVER COMP.
Supersedes: 1FK-16381-01-00
In stock
Only 1 remaining
$95.50
You save $95.50
-10%
28
Yamaha Motors
Bleed Screw Kit1NL-W0048-00-00
Required: 1
BLEED SCREW KIT
$26.09
You save $2.90
-10%
29
Yamaha Motors
Push Lever Seal Kit26H-W0098-00-00
Required: 1
. PUSH LEVER SEAL KIT
$54.89
You save $6.10
-10%
30
Yamaha Motors
HEX SOCKET HEAD BOLT90110-06035-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$8.54
You save $0.95
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
