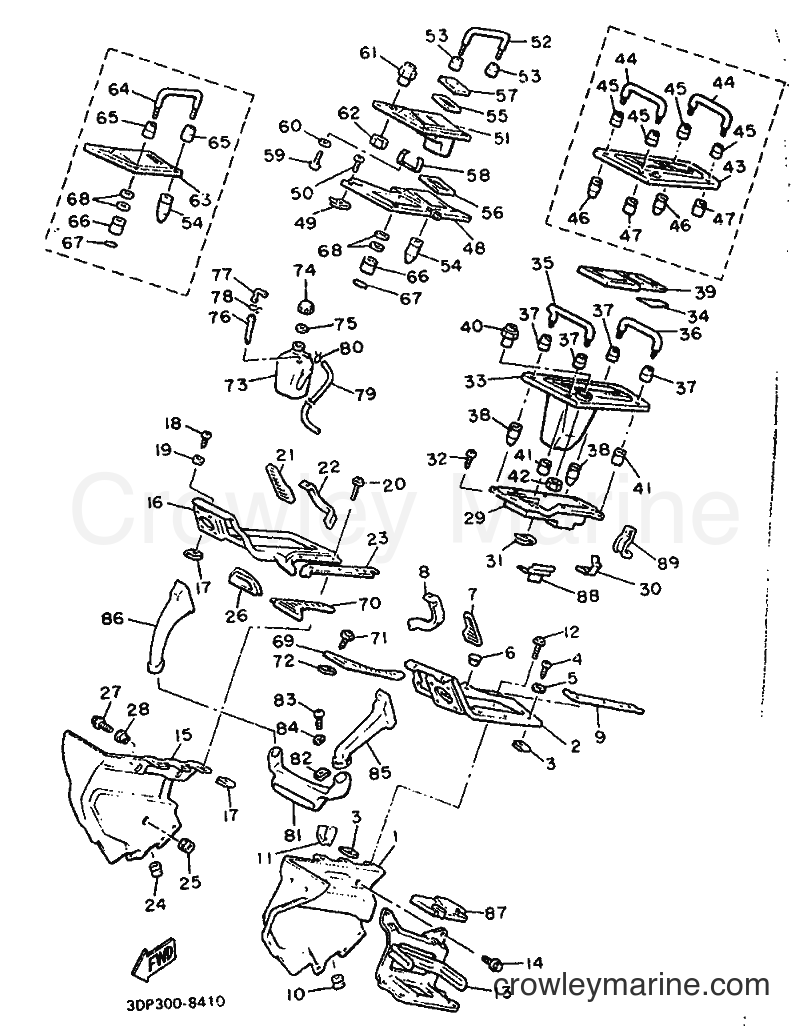

1988 Cruiser XVZ12TD - XVZ12TD (3DP1) [999] COWLING 2 diagram
![Yamaha Motors XVZ12TD (3DP1) [999] - COWLING 2](https://cdn.crowleymarine.com/yamaha/r3gKg4Qu.png)
-10%
1
Yamaha Motors
Inner Panel26H-2836K-00-00
Required: 1
PANEL, INNER 1
No longer availableSearch Nationwide Inventory
$143.99
You save $16.00
-10%
2
Yamaha Motors
PANEL,CONSOLE 126H-2837L-02-00
Required: 1
PANEL, CONSOLE 1
No longer availableSearch Nationwide Inventory
$91.79
You save $10.20
-10%
3
Yamaha Motors
Spring Nut90183-051A0-00
Required: 11
NUT, SPRING
Supersedes: 90183-05024-00
$3.69
You save $0.41
-50%
4
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 3
SCREW, PAN HEAD
Supersedes: 98506-05016-00
In stock
Only 4 remaining
$0.90
You save $0.90
5
Yamaha Motors
Plate Washer92907-05600-00
Required: 3
WASHER, PLATE
Supersedes: 92906-05600-00
$1.98
-10%
No longer availableSearch Nationwide Inventory
$13.94
You save $1.55
-10%
7
Yamaha Motors
GRILL,AIR OUTLET 126H-2837V-00-00
Required: 1
GRILL, AIR OUTLET 1
No longer availableSearch Nationwide Inventory
$99.89
You save $11.10
-10%
No longer availableSearch Nationwide Inventory
$47.69
You save $5.30
-10%
9
Yamaha Motors
Locating Damper26H-2836T-00-00
Required: 1
DAMPER, LOCATING 1
No longer availableSearch Nationwide Inventory
$38.69
You save $4.30
-10%
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$5.84
You save $0.65
-10%
12
Yamaha Motors
Screw with Washer90159-05134-00
Required: 8
SCREW, WITH WASHER
No longer availableSearch Nationwide Inventory
$0.45
You save $0.05
-10%
13
Yamaha Motors
ACCESSORY BRACKET26H-28232-00-00
Required: 1
. BRACKET, ACCESSORY 1
No longer availableSearch Nationwide Inventory
$29.69
You save $3.30
-10%
14
Yamaha Motors
Bolt95811-06020-00
Required: 2
BOLT, FLANGE
Supersedes: 95801-06020-00
No longer availableSearch Nationwide Inventory
$1.48
You save $0.17
-10%
15
Yamaha Motors
Inner Panel26H-2836L-00-00
Required: 1
PANEL, INNER 2
No longer availableSearch Nationwide Inventory
$99.89
You save $11.10
-10%
16
Yamaha Motors
Console Panel26H-2837M-01-00
Required: 1
PANEL, CONSOLE 2
No longer availableSearch Nationwide Inventory
$89.99
You save $10.00
-10%
17
Yamaha Motors
Spring Nut90183-051A0-00
Required: 11
NUT, SPRING
Supersedes: 90183-05024-00
$3.69
You save $0.41
-50%
18
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 3
SCREW, PAN HEAD
Supersedes: 98506-05016-00
In stock
Only 4 remaining
$0.90
You save $0.90
19
Yamaha Motors
Plate Washer92907-05600-00
Required: 3
WASHER, PLATE
Supersedes: 92906-05600-00
$1.98
-10%
20
Yamaha Motors
Screw with Washer90159-05134-00
Required: 8
SCREW, WITH WASHER
No longer availableSearch Nationwide Inventory
$0.45
You save $0.05
-10%
21
Yamaha Motors
GRILL,AIR OUTLET 226H-2837W-00-00
Required: 1
GRILL, AIR OUTLET 2
No longer availableSearch Nationwide Inventory
$117.89
You save $13.10
-10%
No longer availableSearch Nationwide Inventory
$42.29
You save $4.70
-10%
23
Yamaha Motors
LOCATING DAMPER26H-2836U-00-00
Required: 1
DAMPER, LOCATING 2
No longer availableSearch Nationwide Inventory
$31.49
You save $3.50
-10%
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$9.44
You save $1.05
26
Yamaha Motors
CAP 247G-2834J-00
Required: 1
CAP 2
Price unavailable
-10%
27
Yamaha Motors
Bolt95811-06020-00
Required: 2
BOLT, FLANGE
Supersedes: 95801-06020-00
No longer availableSearch Nationwide Inventory
$1.48
You save $0.17
-10%
$9.44
You save $1.05
-10%
29
Yamaha Motors
TERMINAL PANELASSY26H-28210-00-00
Required: 1
TERMINAL PANEL ASSY
No longer availableSearch Nationwide Inventory
$178.19
You save $19.80
-10%
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
$2.34
You save $0.26
-10%
32
Yamaha Motors
Tapping Screw90164-04006-00
Required: 6
SCREW, TAPPING
$5.84
You save $0.65
-10%
33
Yamaha Motors
PANEL,ACCESSORY 126H-28212-00-00
Required: 1
PANEL, ACCESSORY 1
No longer availableSearch Nationwide Inventory
$125.99
You save $14.00
-10%
No longer availableSearch Nationwide Inventory
$8.09
You save $0.90
-10%
35
Yamaha Motors
Carrying Handle26H-28214-00-00
Required: 1
HANDLE, CARRYING 1
No longer availableSearch Nationwide Inventory
$35.09
You save $3.90
-10%
36
Yamaha Motors
HANDLE, CARRYING 226H-28224-00-00
Required: 1
HANDLE, CARRYING 2
No longer availableSearch Nationwide Inventory
$26.99
You save $3.00
-10%
37
Yamaha Motors
Special Washer26H-28215-00-00
Required: 4
WASHER, SPECIAL
No longer availableSearch Nationwide Inventory
$3.19
You save $0.35
-10%
No longer availableSearch Nationwide Inventory
$8.09
You save $0.90
-10%
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
No longer availableSearch Nationwide Inventory
$83.69
You save $9.30
-10%
41
Yamaha Motors
SPECIAL NUT26H-28244-00-00
Required: 2
NUT, SPECIAL 2
No longer availableSearch Nationwide Inventory
$5.84
You save $0.65
-50%
In stock
Only 1 remaining
$5.25
You save $5.25
-10%
No longer availableSearch Nationwide Inventory
$47.69
You save $5.30
-10%
44
Yamaha Motors
HANDLE, CARRYING 226H-28224-00-00
Required: 2
HANDLE, CARRYING 2
No longer availableSearch Nationwide Inventory
$26.99
You save $3.00
-10%
45
Yamaha Motors
Special Washer26H-28215-00-00
Required: 4
WASHER, SPECIAL
No longer availableSearch Nationwide Inventory
$3.19
You save $0.35
-10%
No longer availableSearch Nationwide Inventory
$8.09
You save $0.90
-10%
47
Yamaha Motors
SPECIAL NUT26H-28244-00-00
Required: 2
NUT, SPECIAL 2
No longer availableSearch Nationwide Inventory
$5.84
You save $0.65
-10%
48
Yamaha Motors
TERMINAL PANEL 226H-28220-00-00
Required: 1
TERMINAL PANEL ASSY 2
No longer availableSearch Nationwide Inventory
$116.09
You save $12.90
-10%
$2.34
You save $0.26
-10%
50
Yamaha Motors
Tapping Screw90164-04006-00
Required: 4
SCREW, TAPPING
$5.84
You save $0.65
-10%
51
Yamaha Motors
PANEL,ACCESSORY 226H-28222-00-00
Required: 1
PANEL,ACCESSORY 2
No longer availableSearch Nationwide Inventory
$40.49
You save $4.50
-10%
52
Yamaha Motors
HANDLE,CARRYING 326H-28234-00-00
Required: 1
HANDLE, CARRYING 3
No longer availableSearch Nationwide Inventory
$23.39
You save $2.60
-10%
53
Yamaha Motors
Special Washer26H-28215-00-00
Required: 2
WASHER, SPECIAL
No longer availableSearch Nationwide Inventory
$3.19
You save $0.35
-10%
No longer availableSearch Nationwide Inventory
$8.09
You save $0.90
-10%
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-10%
57
Yamaha Motors
PANEL,BLIND 331M-28233-00-00
Required: 1
PANEL, BLIND 3
No longer availableSearch Nationwide Inventory
$36.89
You save $4.10
-10%
No longer availableSearch Nationwide Inventory
$3.96
You save $0.44
-15%
59
Yamaha Motors
Screw98580-04010-00
Required: 2
SCREW, PAN HEAD
In stock
Only 2 remaining
$8.07
You save $1.42
-50%
60
Yamaha Motors
Plate Washer92990-04600-00
Required: 2
WASHER, PLATE
Supersedes: 92901-04600-00
In stock
Only 1 remaining
$0.49
You save $0.49
-10%
No longer availableSearch Nationwide Inventory
$83.69
You save $9.30
-50%
In stock
Only 1 remaining
$5.25
You save $5.25
-10%
No longer availableSearch Nationwide Inventory
$62.09
You save $6.90
-10%
64
Yamaha Motors
HANDLE,CARRYING 326H-28234-00-00
Required: 2
HANDLE, CARRYING 3
No longer availableSearch Nationwide Inventory
$23.39
You save $2.60
-10%
65
Yamaha Motors
Special Washer26H-28215-00-00
Required: 2
WASHER, SPECIAL
No longer availableSearch Nationwide Inventory
$3.19
You save $0.35
-10%
66
Yamaha Motors
SPECIAL NUT26H-28244-00-00
Required: 2
NUT, SPECIAL 2
No longer availableSearch Nationwide Inventory
$5.84
You save $0.65
-50%
In stock
5+ in stock
$4.75
You save $4.75
-10%
68
Yamaha Motors
Plate Washer90201-044H9-00
Required: 4
WASHER, PLATE
Supersedes: 90201-044A2-00
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-10%
No longer availableSearch Nationwide Inventory
$24.29
You save $2.70
-10%
71
Yamaha Motors
Screw with Washer90159-05134-00
Required: 2
SCREW, WITH WASHER
No longer availableSearch Nationwide Inventory
$0.45
You save $0.05
-10%
72
Yamaha Motors
Spring Nut90183-051A0-00
Required: 2
NUT, SPRING
Supersedes: 90183-05024-00
$3.69
You save $0.41
-10%
73
Yamaha Motors
Recovery Tank26H-21871-01-00
Required: 1
TANK, RECOVERY
No longer availableSearch Nationwide Inventory
$35.99
You save $4.00
-10%
$34.19
You save $3.80
-10%
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$17.99
You save $2.00
-10%
$27.89
You save $3.10
-15%
78
Yamaha Motors
Clip90467-11M08-00
Required: 1
CLIP
Supersedes: 90467-11019-00
In stock
5+ in stock
$2.38
You save $0.42
-10%
79
Yamaha Motors
Hose91A10-07150-00
Required: 1
HOSE
Supersedes: 90446-11206-00
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
80
Yamaha Motors
Clip90467-100A1-00
Required: 1
CLIP
Supersedes: 90467-10008-00
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$60.29
You save $6.70
-10%
82
Yamaha Motors
Spring Nut90183-051A0-00
Required: 2
NUT, SPRING
Supersedes: 90183-05024-00
$3.69
You save $0.41
-50%
83
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-05016-00
In stock
Only 4 remaining
$0.90
You save $0.90
-15%
84
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
$0.30
You save $0.05
-10%
No longer availableSearch Nationwide Inventory
$47.69
You save $5.30
-10%
No longer availableSearch Nationwide Inventory
$48.59
You save $5.40
-10%
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-10%
88
Yamaha Motors
CLAMP, CONNECTING26H-28265-00-00
Required: 1
CLAMP, CONNECTING
No longer availableSearch Nationwide Inventory
$10.34
You save $1.15
-10%
89
Yamaha Motors
CLAMP,CONNECT. 226H-28266-00-00
Required: 1
CLAMP, CONNECTING 2
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
