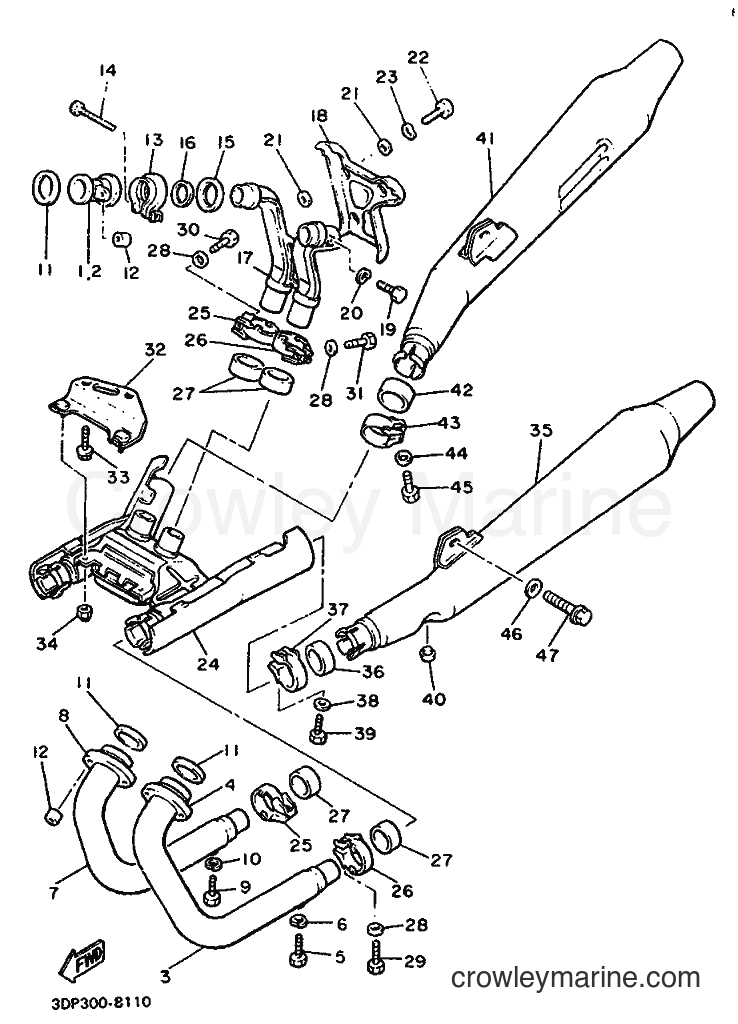

1988 Cruiser XVZ12TD - XVZ12TD (3DP1) [999] EXHAUST diagram
![Yamaha Motors XVZ12TD (3DP1) [999] - EXHAUST](https://cdn.crowleymarine.com/yamaha/a9UFFkS8.png)
-10%
1
Yamaha Motors
Exhaust Pipe26H-14611-01-00
Required: 1
PIPE, EXHAUST 1
No longer availableSearch Nationwide Inventory
$57.59
You save $6.40
-10%
2
Yamaha Motors
Exhaust Pipe 326H-14631-01-00
Required: 1
PIPE, EXHAUST 3
No longer availableSearch Nationwide Inventory
$57.59
You save $6.40
-10%
3
Yamaha Motors
Exhaust Pipe26H-14621-02-00
Required: 1
PIPE, EXHAUST 2
No longer availableSearch Nationwide Inventory
$246.59
You save $27.40
-10%
No longer availableSearch Nationwide Inventory
$22.49
You save $2.50
-10%
$8.54
You save $0.95
-15%
6
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
7
Yamaha Motors
PIPE,EXHAUST 426H-14641-02-00
Required: 1
PIPE, EXHAUST 4
No longer availableSearch Nationwide Inventory
$111.59
You save $12.40
-10%
$8.54
You save $0.95
-10%
$8.54
You save $0.95
-15%
10
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
$13.94
You save $1.55
-10%
$8.54
You save $0.95
-10%
$46.79
You save $5.20
-10%
14
Yamaha Motors
HEX SOCKET HEAD BOLT90110-06054-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
No longer availableSearch Nationwide Inventory
$3.59
You save $0.40
-10%
$46.79
You save $5.20
-10%
16
Yamaha Motors
EXHAUST PIPE GASKET26H-14613-01-00
Required: 2
GASKET, EXHAUST PIPE
$25.19
You save $2.80
-10%
17
Yamaha Motors
EXHAUST JOINT26H-14615-01-00
Required: 1
JOINT, EXHAUST 1
No longer availableSearch Nationwide Inventory
$192.59
You save $21.40
-10%
18
Yamaha Motors
COVER,EXHAUST26H-14624-01-00
Required: 1
COVER, EXHAUST
No longer availableSearch Nationwide Inventory
$40.49
You save $4.50
-10%
$8.54
You save $0.95
-15%
20
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-20%
21
Yamaha Motors
Plate Washer90202-05187-00
Required: 6
WASHER, PLATE
Supersedes: 90202-06010-00
In stock
Only 4 remaining
$1.36
You save $0.34
-10%
$8.54
You save $0.95
-50%
23
Yamaha Motors
Wave Washer90206-06090-00
Required: 3
WASHER, WAVE
Supersedes: 90206-06060-00
In stock
Only 3 remaining
$4.75
You save $4.75
24
Yamaha Motors
CHAMBER 147G-14731-00
Required: 1
CHAMBER 1
Price unavailable
-10%
25
Yamaha Motors
BAND,SILENCER26H-14788-01-00
Required: 2
BAND, SILENCER
No longer availableSearch Nationwide Inventory
$21.59
You save $2.40
-10%
26
Yamaha Motors
BAND,SILENCER26H-14789-01-00
Required: 2
BAND, SILENCER
No longer availableSearch Nationwide Inventory
$21.59
You save $2.40
-10%
27
Yamaha Motors
Exhaust Pipe Gasket3JJ-14623-00-00
Required: 4
GASKET, EXHAUST PIPE
Supersedes: 26H-14623-01-00
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-15%
28
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER, PLATE
Supersedes: 92901-08600-00
In stock
5+ in stock
$2.38
You save $0.42
-20%
In stock
Only 4 remaining
$7.59
You save $1.90
-15%
30
Yamaha Motors
Bolt97095-08020-00
Required: 1
BOLT
Supersedes: 97301-08020-00
In stock
5+ in stock
$3.40
You save $0.60
-20%
In stock
Only 4 remaining
$7.59
You save $1.90
-10%
32
Yamaha Motors
MUFFLER STAY 226H-14772-01-00
Required: 1
STAY, MUFFLER 2
No longer availableSearch Nationwide Inventory
$104.39
You save $11.60
-10%
No longer availableSearch Nationwide Inventory
$1.44
You save $0.16
-10%
34
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95601-08200-00
$8.54
You save $0.95
35
Yamaha Motors
MUFFLER 147G-14711-00
Required: 1
MUFFLER 1
Price unavailable
-10%
36
Yamaha Motors
Exhaust Gasket 43JJ-14653-00-00
Required: 1
GASKET, EXHAUST 4
Supersedes: 47G-14653-00-00
$42.29
You save $4.70
-10%
37
Yamaha Motors
BAND, SILENCER 426H-14797-00-00
Required: 1
BAND, SILENCER 4
No longer availableSearch Nationwide Inventory
$19.79
You save $2.20
-15%
38
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER, PLATE
Supersedes: 92901-08600-00
In stock
5+ in stock
$2.38
You save $0.42
-20%
In stock
Only 4 remaining
$7.59
You save $1.90
40
Yamaha Motors
STOPPER, MAIN STAND1AO-27114-00
Required: 1
STOPPER, MAIN STAND
Price unavailable
41
Yamaha Motors
MUFFLER 247G-14721-00
Required: 1
MUFFLER 2
Price unavailable
-10%
42
Yamaha Motors
Exhaust Gasket 43JJ-14653-00-00
Required: 1
GASKET, EXHAUST 4
Supersedes: 47G-14653-00-00
$42.29
You save $4.70
-10%
43
Yamaha Motors
BAND, SILENCER 326H-14796-00-00
Required: 1
BAND, SILENCER 3
No longer availableSearch Nationwide Inventory
$19.79
You save $2.20
-15%
44
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER, PLATE
Supersedes: 92901-08600-00
In stock
5+ in stock
$2.38
You save $0.42
-20%
In stock
Only 4 remaining
$7.59
You save $1.90
-10%
46
Yamaha Motors
Plate Washer90201-10742-00
Required: 2
WASHER, PLATE
$8.54
You save $0.95
-10%
47
Yamaha Motors
Washer Based Bolt90105-10271-00
Required: 2
BOLT, WASHER BASED
$9.44
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
