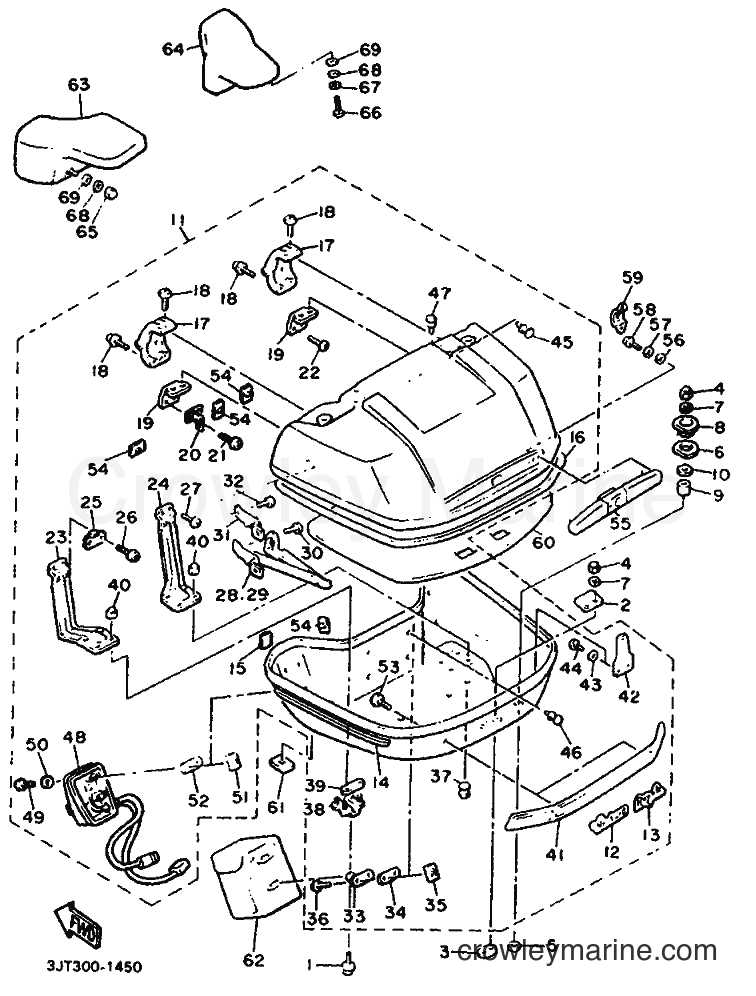

1991 Cruiser XVZ13TD - XVZ13TD (3JT3) [999] TRAVEL BAG diagram
![Yamaha Motors XVZ13TD (3JT3) [999] - TRAVEL BAG](https://cdn.crowleymarine.com/yamaha/0CUTtpmZ.png)
-10%
1
Yamaha Motors
Flange Bolt95024-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95023-06010-00
$4.50
You save $0.50
-10%
No longer availableSearch Nationwide Inventory
$10.34
You save $1.15
-10%
3
Yamaha Motors
RUBBER PLATE54K-2849J-00-00
Required: 2
PLATE, RUBBER 9
No longer availableSearch Nationwide Inventory
$3.96
You save $0.44
-10%
4
Yamaha Motors
NUT95307-06800-00
Required: 6
NUT
Supersedes: 95306-06800-00
$3.74
You save $0.42
-10%
5
Yamaha Motors
Plate Washer90202-06058-00
Required: 2
WASHER, PLATE
$3.29
You save $0.36
-10%
6
Yamaha Motors
RUBBER PLATE1NL-2845K-00-00
Required: 2
PLATE, RUBBER 10
No longer availableSearch Nationwide Inventory
$2.21
You save $0.25
-50%
7
Yamaha Motors
Spring Washer92907-06100-00
Required: 6
WASHER, SPRING
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$0.65
You save $0.65
-10%
8
Yamaha Motors
Reinforcement1NL-2843K-00-00
Required: 2
REINFORCEMENT 4
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
$8.54
You save $0.95
-10%
10
Yamaha Motors
Plate Washer90202-10120-00
Required: 2
WASHER, PLATE
Supersedes: 90202-08125-00
$9.44
You save $1.05
-10%
11
Yamaha Motors
TRAVEL TRUNK1NL-Y284E-40-9X
Required: 1
TRAVEL TRANK COMP.
No longer availableSearch Nationwide Inventory
$2255.39
You save $250.60
11
Yamaha Motors
TRAVEL TANK COMP1NL-Y283E-50-0Y
Required: 1
TRAVEL TANK COMP
Price unavailable
-10%
12
Yamaha Motors
Emblem26H-21783-00-00
Required: 1
. EMBLEM 3
Supersedes: 54K-2842J-01-00
No longer availableSearch Nationwide Inventory
$34.19
You save $3.80
-10%
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-10%
14
Yamaha Motors
GRAPHIC SET,TRUNK3JJ-2840H-10-00
Required: 1
. GRAPHIC SET, TRAVEL TRUNK
No longer availableSearch Nationwide Inventory
$72.89
You save $8.10
-10%
14
Yamaha Motors
GRAPHIC SET,TRUNK3JJ-2840H-20-00
Required: 1
. GRAPHIC SET, TRAVEL TRUNK
No longer availableSearch Nationwide Inventory
$79.19
You save $8.80
-10%
No longer availableSearch Nationwide Inventory
$14.39
You save $1.60
-10%
No longer availableSearch Nationwide Inventory
$17.99
You save $2.00
-10%
No longer availableSearch Nationwide Inventory
$52.19
You save $5.80
-10%
18
Yamaha Motors
Screw With Washer90159-05132-00
Required: 8
. SCREW, WITH WASHER
No longer availableSearch Nationwide Inventory
$0.89
You save $0.10
-10%
19
Yamaha Motors
REINFORCEMENT 354K-2845H-00-00
Required: 2
. REINFORCEMENT 3
No longer availableSearch Nationwide Inventory
$10.34
You save $1.15
-10%
20
Yamaha Motors
BRACKET1NL-28469-00-00
Required: 1
. TRUNK SWITCH BRKT. 8
No longer availableSearch Nationwide Inventory
$10.79
You save $1.20
-10%
21
Yamaha Motors
Tapping Screw97707-30108-00
Required: 2
. SCREW, TAPPING
Supersedes: 97701-30108-00
No longer availableSearch Nationwide Inventory
$0.68
You save $0.07
-10%
22
Yamaha Motors
Tapping Screw97701-30606-00
Required: 2
. SCREW, TAPPING
Supersedes: 97701-30106-00
No longer availableSearch Nationwide Inventory
$0.50
You save $0.05
-10%
No longer availableSearch Nationwide Inventory
$17.54
You save $1.95
-10%
No longer availableSearch Nationwide Inventory
$14.63
You save $1.63
-10%
25
Yamaha Motors
Bracket 91NL-28468-00-00
Required: 1
. TRUNK SWITCH BRKT. 7
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
26
Yamaha Motors
Tapping Screw97707-30108-00
Required: 2
. SCREW, TAPPING
Supersedes: 97701-30108-00
No longer availableSearch Nationwide Inventory
$0.68
You save $0.07
-10%
27
Yamaha Motors
Tapping Screw97701-30606-00
Required: 2
. SCREW, TAPPING
Supersedes: 97701-30106-00
No longer availableSearch Nationwide Inventory
$0.50
You save $0.05
-10%
28
Yamaha Motors
STOPPER, SDLBAG RT1NL-2845L-00-00
Required: 1
. STOPPER, OPEN
No longer availableSearch Nationwide Inventory
$47.69
You save $5.30
-10%
29
Yamaha Motors
STOPPER, SDLBAG LT1NL-2845M-00-00
Required: 1
. STOPPER, OPEN
No longer availableSearch Nationwide Inventory
$51.29
You save $5.70
-10%
30
Yamaha Motors
Tapping Screw97701-30606-00
Required: 4
. SCREW, TAPPING
Supersedes: 97701-30106-00
No longer availableSearch Nationwide Inventory
$0.50
You save $0.05
-10%
31
Yamaha Motors
Tapping Screw1NL-2849R-00-00
Required: 2
. BRACKET,TRANK STOPPER
No longer availableSearch Nationwide Inventory
$22.49
You save $2.50
-10%
32
Yamaha Motors
Tapping Screw97701-30606-00
Required: 4
. SCREW, TAPPING
Supersedes: 97701-30106-00
No longer availableSearch Nationwide Inventory
$0.50
You save $0.05
-10%
No longer availableSearch Nationwide Inventory
$8.09
You save $0.90
-10%
No longer availableSearch Nationwide Inventory
$1.85
You save $0.21
-10%
No longer availableSearch Nationwide Inventory
$5.84
You save $0.65
-10%
36
Yamaha Motors
Tapping Screw97707-40710-00
Required: 4
. SCREW, TAPPING
Supersedes: 97701-40710-00
No longer availableSearch Nationwide Inventory
$0.63
You save $0.07
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$19.79
You save $2.20
-10%
39
Yamaha Motors
Rubber Plate1NL-28485-00-00
Required: 4
. PLATE, RUBBER 3
No longer availableSearch Nationwide Inventory
$2.16
You save $0.24
-10%
40
Yamaha Motors
Nut95307-05800-00
Required: 8
. NUT, CAP
Supersedes: 95306-05800-00
$7.64
You save $0.85
-10%
41
Yamaha Motors
REAR REFLECTOR ASSEMBLY54K-85140-00-00
Required: 1
. REAR REFLECTOR ASSY
No longer availableSearch Nationwide Inventory
$487.14
You save $54.13
-10%
No longer availableSearch Nationwide Inventory
$16.60
You save $1.84
-10%
43
Yamaha Motors
Plate Washer90201-06057-00
Required: 4
. WASHER, PLATE
Supersedes: 90201-06059-00
$5.84
You save $0.65
-50%
44
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 4
. SCREW, PAN HEAD
Supersedes: 98506-05010-00
In stock
Only 4 remaining
$2.30
You save $2.30
-10%
$7.64
You save $0.85
46
Yamaha Motors
. PLUG90338-07181
Required: 4
. PLUG
Price unavailable
-10%
47
Yamaha Motors
DAMPER,GRIP26H-2843A-00-00
Required: 2
. DAMPER, GRIP
No longer availableSearch Nationwide Inventory
$2.88
You save $0.32
-10%
48
Yamaha Motors
REMOTE CONTROL BASE1NL-8816A-00-00
Required: 1
. REMOTE CONTROL BASE ASS'Y
No longer availableSearch Nationwide Inventory
$397.79
You save $44.20
-10%
49
Yamaha Motors
Tapping Screw90167-40042-00
Required: 4
. SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$0.23
You save $0.02
-10%
50
Yamaha Motors
Washer92907-04600-00
Required: 4
. WASHER, PLATE
Supersedes: 92906-04600-00
$1.67
You save $0.19
-10%
No longer availableSearch Nationwide Inventory
$5.84
You save $0.65
-10%
No longer availableSearch Nationwide Inventory
$1.85
You save $0.21
-10%
53
Yamaha Motors
SCREW,TAPPING(2WR)97706-40008-00
Required: 3
. SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$1.06
You save $0.12
-10%
$7.64
You save $0.85
-10%
55
Yamaha Motors
GRIP, SADDLEBAG54K-28408-00-00
Required: 1
GRIP, SADDLEBAG
No longer availableSearch Nationwide Inventory
$170.09
You save $18.90
-10%
56
Yamaha Motors
Plate Washer90202-08146-00
Required: 6
WASHER, PLATE
$10.34
You save $1.15
-10%
57
Yamaha Motors
Plate Washer90201-05029-00
Required: 2
WASHER, PLATE
Supersedes: 90201-05721-00
$8.54
You save $0.95
-50%
58
Yamaha Motors
Pan Head Screw98507-05008-00
Required: 6
SCREW, PAN HEAD
Supersedes: 98506-05008-00
In stock
Only 1 remaining
$1.92
You save $1.92
-10%
59
Yamaha Motors
COVER,LOCK ASSY 254K-28493-00-00
Required: 2
COVER LOCK ASSY 2
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$36.89
You save $4.10
-10%
No longer availableSearch Nationwide Inventory
$2.34
You save $0.26
-10%
62
Yamaha Motors
POUCH, 23JJ-28402-00-00
Required: 1
POUCH COMP. 2
No longer availableSearch Nationwide Inventory
$233.99
You save $26.00
-10%
63
Yamaha Motors
POUCH, 23JJ-2840R-00-00
Required: 1
ARM REST ASS'Y
No longer availableSearch Nationwide Inventory
$109.79
You save $12.20
-10%
64
Yamaha Motors
POUCH, 23JJ-2840T-00-00
Required: 1
ARM REST ASS'Y 2
No longer availableSearch Nationwide Inventory
$166.49
You save $18.50
-10%
65
Yamaha Motors
Nut95307-05800-00
Required: 2
NUT, CAP
Supersedes: 95306-05800-00
$7.64
You save $0.85
-50%
66
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98506-05016-00
In stock
Only 4 remaining
$0.90
You save $0.90
-10%
67
Yamaha Motors
Spring Washer92907-05100-00
Required: 2
WASHER, SPRING
Supersedes: 92906-05100-00
$8.54
You save $0.95
-10%
68
Yamaha Motors
Plate Washer90202-05147-00
Required: 4
WASHER, PLATE
$1.22
You save $0.14
-10%
69
Yamaha Motors
Plate Washer90201-05029-00
Required: 4
WASHER, PLATE
Supersedes: 90201-05721-00
$8.54
You save $0.95
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
