1978 Dirt Bike XT500 - XT500 (1U6) [999] FLYWHEEL HOUSING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

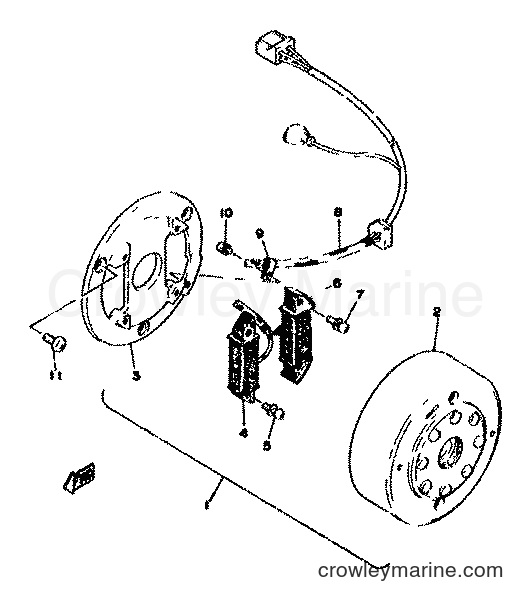

Yamaha Motors XT500 (1U6) [999] - FLYWHEEL HOUSING
Change View:
FLYWHEEL MAGNETO ASSY
1
Yamaha Motors
FLYWHEEL MAGNETO ASSY2H1-81300-50
Required: 1
FLYWHEEL MAGNETO ASSY
Price unavailable
. ROTOR ASSY
2
Yamaha Motors
. ROTOR ASSY2H1-81350-50
Required: 1
. ROTOR ASSY
Price unavailable
. COIL, LIGHTING 1
6
Yamaha Motors
. COIL, LIGHTING 12H1-81313-50
Required: 1
. COIL, LIGHTING 1
Price unavailable
. SCREW, PAN HEAD
7
Yamaha Motors
. SCREW, PAN HEAD2H1-81346-50
Required: 2
. SCREW, PAN HEAD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
