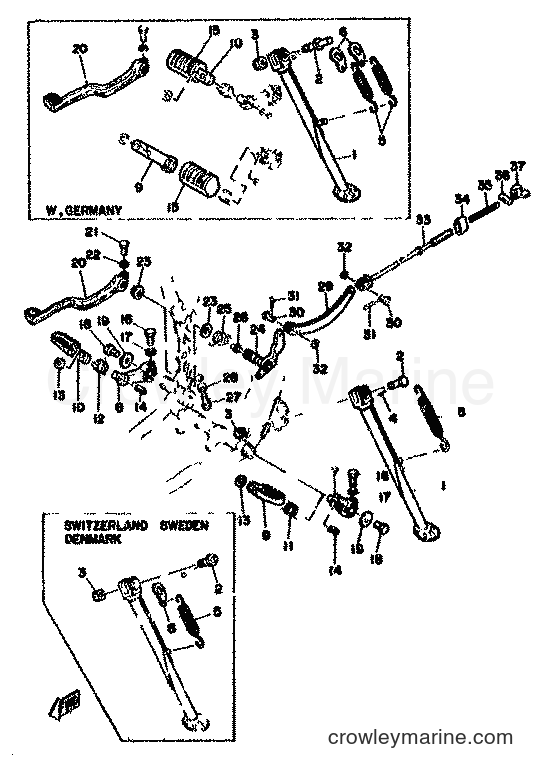

1978 Dirt Bike XT500 - XT500 (1U6) [999] STAND & FOOTREST diagram
![Yamaha Motors XT500 (1U6) [999] - STAND & FOOTREST](https://cdn.crowleymarine.com/yamaha/2flCptPF.png)
-10%
1
Yamaha Motors
SIDE STAND1T1-27311-00-33
Required: 1
STAND, SIDE
Supersedes: 1T1-27311-00-00
No longer availableSearch Nationwide Inventory
$54.89
You save $6.10
1
Yamaha Motors
STAND, SIDE1U6-27311-01
Required: 1
STAND, SIDE
Price unavailable
2
Yamaha Motors
BOLT1U4-27317-00
Required: 1
BOLT
Price unavailable
-10%
2
Yamaha Motors
BOLT,WITH HOLE90102-10006-00
Required: 1
BOLT, WITH HOLE
$10.34
You save $1.15
-10%
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
3
Yamaha Motors
Castellated Nut90171-10049-00
Required: 1
NUT, CASTLE
Supersedes: 90171-10012-00
No longer availableSearch Nationwide Inventory
$2.61
You save $0.29
-10%
3
Yamaha Motors
Castle Nut95307-10900-00
Required: 1
NUT, SLOTTED
Supersedes: 95302-10900-00
$10.34
You save $1.15
-10%
3
Yamaha Motors
NUT, SLOTTED95307-08900-00
Required: 1
NUT, SLOTTED
Supersedes: 95301-08900-00
No longer availableSearch Nationwide Inventory
$1.89
You save $0.21
4
Yamaha Motors
PIN, COTTER91401-20025
Required: 1
PIN, COTTER
Price unavailable
5
Yamaha Motors
SPRING, TENSION90507-32029
Required: 1
SPRING, TENSION
Price unavailable
-10%
5
Yamaha Motors
TENSION SPRING90507-29021-00
Required: 1
SPRING, TENSION
$23.39
You save $2.60
5
Yamaha Motors
SPRING, TENSION90507-26025
Required: 2
SPRING, TENSION
Price unavailable
6
Yamaha Motors
LINK, SIDE STAND1U6-27315-00
Required: 2
LINK, SIDE STAND
Price unavailable
6
Yamaha Motors
LINK, SIDE STAND458-27315-00
Required: 1
LINK, SIDE STAND
Price unavailable
-10%
7
Yamaha Motors
Footrest Bracket2Y0-27412-00-33
Required: 1
BRACKET, FOOTREST 1
Supersedes: 583-27412-00-00
No longer availableSearch Nationwide Inventory
$52.19
You save $5.80
-10%
8
Yamaha Motors
Footrest Bracket2Y0-27422-00-33
Required: 1
BRACKET, FOOTREST 2
Supersedes: 583-27422-00-00
No longer availableSearch Nationwide Inventory
$68.39
You save $7.60
-10%
No longer availableSearch Nationwide Inventory
$62.09
You save $6.90
9
Yamaha Motors
FOOTREST 11E6-27411-00
Required: 1
FOOTREST 1
Price unavailable
10
Yamaha Motors
FOOTREST 21E6-27421-00
Required: 1
FOOTREST 2
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$59.39
You save $6.60
-10%
11
Yamaha Motors
Torsion Spring90508-26277-00
Required: 1
SPRING, TORSION
No longer availableSearch Nationwide Inventory
$3.78
You save $0.42
-10%
12
Yamaha Motors
Torsion Spring90508-26276-00
Required: 1
SPRING, TORSION
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
-50%
13
Yamaha Motors
Plate Washer90201-12631-00
Required: 2
WASHER, PLATE
In stock
Only 1 remaining
$5.25
You save $5.25
-15%
14
Yamaha Motors
Spring Pin91690-30020-00
Required: 2
PIN, SPRING
Supersedes: 91609-30020-00
In stock
5+ in stock
$3.10
You save $0.55
-10%
15
Yamaha Motors
FOOTREST COVER214-27413-00-00
Required: 2
COVER, FOOTREST
$23.39
You save $2.60
-10%
No longer availableSearch Nationwide Inventory
$2.56
You save $0.29
-15%
17
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, SPRING
Supersedes: 92901-08100-00
In stock
5+ in stock
$4.76
You save $0.84
-10%
No longer availableSearch Nationwide Inventory
$2.43
You save $0.27
-10%
19
Yamaha Motors
Plate Washer90201-10639-00
Required: 2
WASHER, PLATE
$10.34
You save $1.15
-10%
20
Yamaha Motors
Brake Pedal1U6-27211-00-93
Required: 1
PEDAL, BRAKE
Supersedes: 583-27211-01-R4
No longer availableSearch Nationwide Inventory
$53.99
You save $6.00
-10%
20
Yamaha Motors
Brake Pedal1U6-27211-00-93
Required: 1
PEDAL, BRAKE
Supersedes: 1U6-27211-00-R4
No longer availableSearch Nationwide Inventory
$53.99
You save $6.00
-10%
$5.84
You save $0.65
-15%
22
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92901-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
$10.79
You save $1.20
-10%
24
Yamaha Motors
Brake Pedal Lever1E6-27252-00-00
Required: 1
LEVER, BRAKE PEDAL
No longer availableSearch Nationwide Inventory
$42.29
You save $4.70
-10%
25
Yamaha Motors
Torsion Spring90508-32278-00
Required: 1
SPRING, TORSION
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-15%
26
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
NIPPLE, GREASE
Supersedes: 93700-06004-00
In stock
5+ in stock
$7.22
You save $1.27
-10%
27
Yamaha Motors
Hexagon Screw90153-06008-00
Required: 1
SCREW, HEXAGON
$7.64
You save $0.85
-10%
$5.84
You save $0.65
-10%
29
Yamaha Motors
ROD,JOINT583-27241-00-00
Required: 1
ROD, JOINT
Supersedes: 583-27241-01-00
No longer availableSearch Nationwide Inventory
$9.89
You save $1.10
-10%
No longer availableSearch Nationwide Inventory
$3.42
You save $0.38
31
Yamaha Motors
PIN, COTTER91401-20012
Required: 2
PIN, COTTER
Price unavailable
-10%
32
Yamaha Motors
Plate Washer90201-08083-00
Required: 2
WASHER
Supersedes: 807-14617-00-00
$9.44
You save $1.05
-10%
33
Yamaha Motors
BRAKE ROD583-27231-00-00
Required: 1
ROD, BRAKE
Supersedes: 583-27231-01-00
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
-10%
No longer availableSearch Nationwide Inventory
$13.04
You save $1.45
-10%
35
Yamaha Motors
Compression Spring90501-10245-00
Required: 1
SPRING, COMPRESSION
$8.54
You save $0.95
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
-50%
In stock
Only 1 remaining
$2.75
You save $2.75
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
