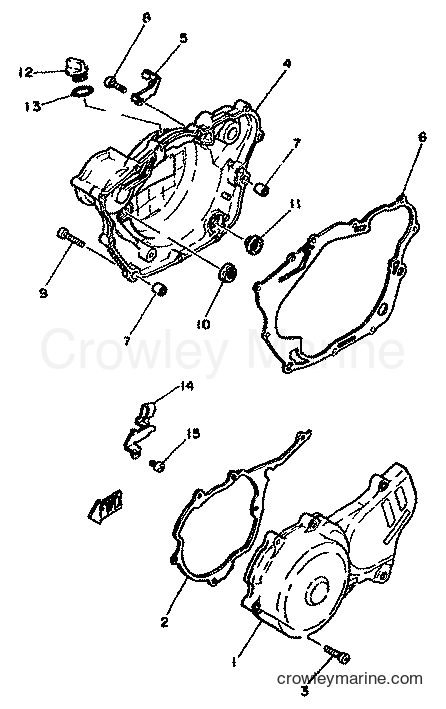

1981 Dirt Bike XT250 - XT250 (5G4) [999] CRANKCASE COVER 1 diagram
![Yamaha Motors XT250 (5G4) [999] - CRANKCASE COVER 1](https://cdn.crowleymarine.com/yamaha/nPrmHSeY.png)
-10%
1
Yamaha Motors
Crankcase Cover3Y1-15411-01-00
Required: 1
COVER, CRANKCASE 1
No longer availableSearch Nationwide Inventory
$151.19
You save $16.80
-10%
2
Yamaha Motors
Crankcase Cover Gasket3Y1-15451-10-00
Required: 1
GASKET, CRANKCASE COVER 1
Supersedes: 3Y1-15451-01-00
$22.49
You save $2.50
-10%
3
Yamaha Motors
98516-06030-0092516-06030-00
Required: 6
SCREW, PAN HEAD
Supersedes: 92506-06030-00
No longer availableSearch Nationwide Inventory
$3.02
You save $0.33
-10%
4
Yamaha Motors
Crankcase Cover3Y1-15421-01-00
Required: 1
COVER, CRANKCASE 2
No longer availableSearch Nationwide Inventory
$116.09
You save $12.90
-10%
No longer availableSearch Nationwide Inventory
$15.74
You save $1.75
-10%
6
Yamaha Motors
Crankcase Gasket Cover 23Y1-15461-10-00
Required: 1
GASKET, CRANKCASE COVER 2
Supersedes: 3Y1-15461-00-00
$25.19
You save $2.80
-50%
7
Yamaha Motors
Dowel Pin99530-12016-00
Required: 2
PIN, DOWEL
Supersedes: 91810-05016-00
In stock
Only 2 remaining
$2.45
You save $2.45
-10%
8
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 7
SCREW, PAN HEAD
Supersedes: 92506-06025-00
$3.65
You save $0.40
-10%
9
Yamaha Motors
98506-06035-0092506-06035-00
Required: 2
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$0.95
You save $0.10
-10%
$11.24
You save $1.25
-10%
$30.59
You save $3.40
-10%
12
Yamaha Motors
Oil Plug3Y1-15363-10-00
Required: 1
PLUG, OIL
Supersedes: 3Y1-15363-00-00
$17.99
You save $2.00
-15%
In stock
Only 3 remaining
$7.64
You save $1.35
-10%
No longer availableSearch Nationwide Inventory
$9.44
You save $1.05
-10%
15
Yamaha Motors
Pan Head Screw98516-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92506-06012-00
No longer availableSearch Nationwide Inventory
$2.07
You save $0.23
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
