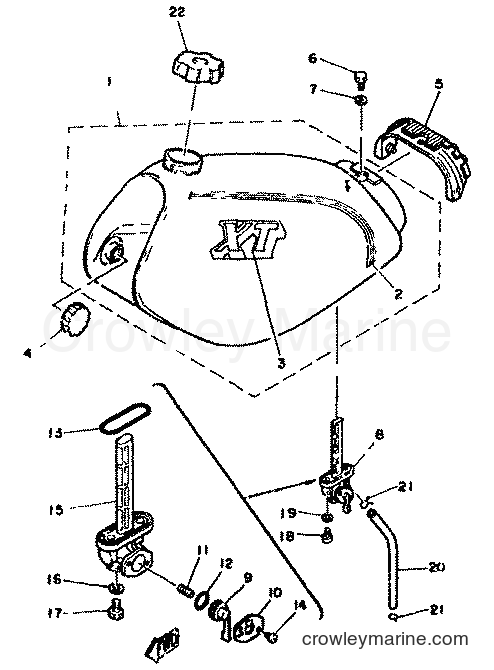

1981 Dirt Bike XT250 - XT250 (5G4) [999] FUEL TANK diagram
![Yamaha Motors XT250 (5G4) [999] - FUEL TANK](https://cdn.crowleymarine.com/yamaha/CmhTeNUP.png)
1
Yamaha Motors
FUEL TANK COMP.3Y1-24110-00-09
Required: 1
FUEL TANK COMP.
Price unavailable
2
Yamaha Motors
. GRAPHIC SET5G4-24240-00
Required: 1
. GRAPHIC SET
Price unavailable
3
Yamaha Motors
. EMBLEM 15G4-24161-00
Required: 2
. EMBLEM 1
Price unavailable
-10%
4
Yamaha Motors
Locating Damper3TB-24181-00-00
Required: 2
DAMPER, LOCATING 1
Supersedes: 278-24181-00-00
$13.94
You save $1.55
-10%
5
Yamaha Motors
LOCATING DAMPER3Y1-24182-01-00
Required: 1
DAMPER, LOCATING 2
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
-15%
In stock
5+ in stock
$1.36
You save $0.24
-10%
7
Yamaha Motors
Plain Washer90201-06095-00
Required: 1
WASHER, PLATE
Supersedes: 90201-06063-00
$8.54
You save $0.95
-10%
8
Yamaha Motors
15A-24500-03-003Y1-24500-10-00
Required: 1
FUEL COCK ASSY 1
Supersedes: 3Y1-24500-00-00
No longer availableSearch Nationwide Inventory
$22.49
You save $2.50
-10%
9
Yamaha Motors
Cock Lever3Y1-24524-00-00
Required: 1
. LEVER, COCK
No longer availableSearch Nationwide Inventory
$3.21
You save $0.36
-10%
10
Yamaha Motors
PLATE,LVR FITTING3Y1-24525-00-00
Required: 1
. PLATE, LEVER FITTING
No longer availableSearch Nationwide Inventory
$1.06
You save $0.12
-10%
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
$3.38
You save $0.38
-15%
13
Yamaha Motors
O-Ring2W6-24512-00-00
Required: 1
. GASKET
Supersedes: 3H3-24512-00-00
$7.22
You save $1.27
-10%
14
Yamaha Motors
Pan Head Screw98580-03008-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98501-03008-00
$3.46
You save $0.38
-10%
15
Yamaha Motors
FILTER NET 13Y1-24514-00-00
Required: 1
. NET, FILTER 1
$45.89
You save $5.10
-10%
$6.74
You save $0.75
-10%
17
Yamaha Motors
Drain Plug2G2-24543-00-00
Required: 1
. PLUG, DRAIN
No longer availableSearch Nationwide Inventory
$3.60
You save $0.40
-20%
19
Yamaha Motors
Plate Washer90202-05187-00
Required: 2
WASHER, PLATE
Supersedes: 90202-06010-00
In stock
Only 4 remaining
$1.36
You save $0.34
-10%
20
Yamaha Motors
Hose90445-10490-00
Required: 1
HOSE
Supersedes: 90445-10458-00
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
21
Yamaha Motors
Clip90467-090A2-00
Required: 2
CLIP
Supersedes: 90467-09006-00
$4.28
You save $0.47
-10%
No longer availableSearch Nationwide Inventory
$39.59
You save $4.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
