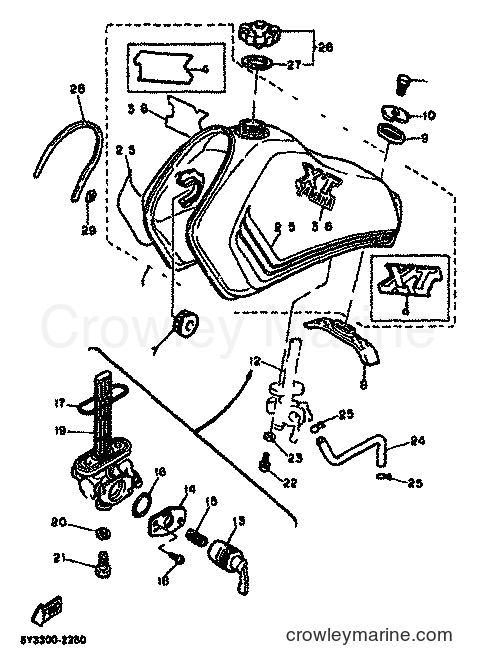

1982 Dirt Bike XT550 - XT550 (5Y3) [999] FUEL TANK diagram
![Yamaha Motors XT550 (5Y3) [999] - FUEL TANK](https://cdn.crowleymarine.com/yamaha/O8bvcdWO.png)
1
Yamaha Motors
FUEL TANK COMP.5Y1-24110-00-02
Required: 1
FUEL TANK COMP.
Price unavailable
1
Yamaha Motors
FUEL TANK COMP.5Y1-24110-00-03
Required: 1
FUEL TANK COMP.
Price unavailable
-10%
1
Yamaha Motors
Fuel Tank5Y1-24110-00-01
Required: 1
FUEL TANK COMP.
No longer availableSearch Nationwide Inventory
$555.29
You save $61.70
2
Yamaha Motors
. GRAPHIC SET5Y3-24240-00
Required: 1
. GRAPHIC SET
Price unavailable
3
Yamaha Motors
. EMBLEM 15G4-24161-20
Required: 2
. EMBLEM 1
Price unavailable
4
Yamaha Motors
. EMBLEM 15G4-24161-00
Required: 2
. EMBLEM 1
Price unavailable
-10%
5
Yamaha Motors
Graphic Set5Y1-24240-00-00
Required: 1
. GRAPHIC SET
No longer availableSearch Nationwide Inventory
$50.27
You save $5.59
-10%
No longer availableSearch Nationwide Inventory
$21.59
You save $2.40
-10%
7
Yamaha Motors
Locating Damper4H7-24181-00-00
Required: 2
DAMPER, LOCATING 1
$6.74
You save $0.75
-10%
8
Yamaha Motors
LOCATING DAMPER15A-24182-00-00
Required: 1
DAMPER, LOCATING 2
Supersedes: 5Y1-24182-01-00
No longer availableSearch Nationwide Inventory
$18.89
You save $2.10
-10%
9
Yamaha Motors
LOCATING DAMPER 33Y6-24183-00-00
Required: 1
DAMPER, LOCATING 3
Supersedes: 5Y1-24183-00-00
$7.64
You save $0.85
-10%
10
Yamaha Motors
Special Washer11H-24186-00-00
Required: 1
WASHER, SPECIAL
Supersedes: 5Y1-24186-00-00
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
-10%
No longer availableSearch Nationwide Inventory
$2.39
You save $0.27
-10%
12
Yamaha Motors
3FY-24500-00-005Y1-24500-10-00
Required: 1
FUEL COCK ASSY 1
Supersedes: 5Y1-24500-00-00
No longer availableSearch Nationwide Inventory
$29.69
You save $3.30
-10%
13
Yamaha Motors
Cock Lever3Y1-24524-00-00
Required: 1
. LEVER, COCK
No longer availableSearch Nationwide Inventory
$3.21
You save $0.36
-10%
14
Yamaha Motors
PLATE,LVR FITTING3Y1-24525-00-00
Required: 1
. PLATE, LEVER FITTING
No longer availableSearch Nationwide Inventory
$1.06
You save $0.12
-10%
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
$3.38
You save $0.38
-15%
17
Yamaha Motors
O-Ring2W6-24512-00-00
Required: 1
. GASKET
Supersedes: 3H3-24512-00-00
$7.22
You save $1.27
-10%
18
Yamaha Motors
Pan Head Screw98580-03008-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98501-03008-00
$3.46
You save $0.38
-10%
19
Yamaha Motors
FILTER NET 15Y1-24514-00-00
Required: 1
. NET, FILTER 1
No longer availableSearch Nationwide Inventory
$10.31
You save $1.15
-10%
$6.74
You save $0.75
-10%
21
Yamaha Motors
Drain Plug2G2-24543-00-00
Required: 1
. PLUG, DRAIN
No longer availableSearch Nationwide Inventory
$3.60
You save $0.40
-20%
23
Yamaha Motors
Plate Washer90202-05187-00
Required: 2
WASHER, PLATE
Supersedes: 90202-06010-00
In stock
Only 4 remaining
$1.36
You save $0.34
-10%
24
Yamaha Motors
Hose90445-10490-00
Required: 1
HOSE
Supersedes: 90445-10638-00
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
25
Yamaha Motors
Clip90467-090A2-00
Required: 2
CLIP
Supersedes: 90467-09006-00
$4.28
You save $0.47
-10%
26
Yamaha Motors
CAP ASSY3Y1-24610-02-00
Required: 1
CAP ASSY
Supersedes: 5Y1-24610-00-00
$35.09
You save $3.90
-10%
27
Yamaha Motors
Gasket Cap5Y1-24612-00-00
Required: 1
. GASKET, CAP
No longer availableSearch Nationwide Inventory
$6.01
You save $0.67
-10%
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-10%
No longer availableSearch Nationwide Inventory
$3.33
You save $0.37
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
