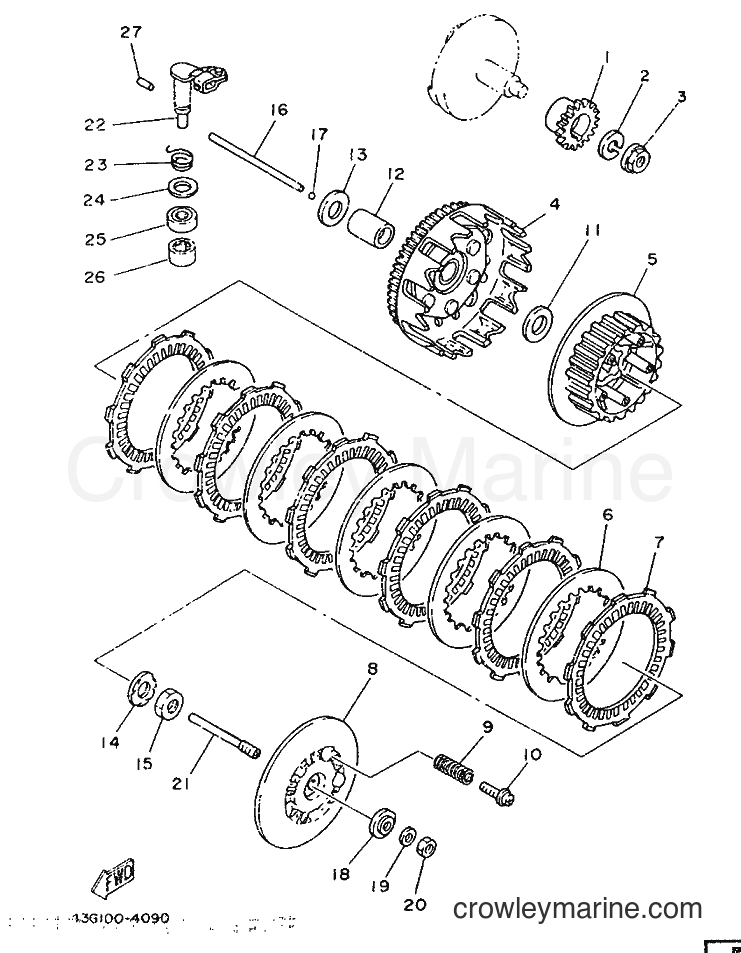

1986 Dirt Bike IT200S - IT200S (1VH) [999] CLUTCH diagram
![Yamaha Motors IT200S (1VH) [999] - CLUTCH](https://cdn.crowleymarine.com/yamaha/dKxwwnKe.png)
-10%
1
Yamaha Motors
Primary Drive Gear43G-16111-00-YX
Required: 1
GEAR, PRIMARY DRIVE
Supersedes: 43G-16111-00-00
No longer availableSearch Nationwide Inventory
$43.19
You save $4.80
-10%
2
Yamaha Motors
SPRING WASHER90204-12007-00
Required: 1
WASHER, SPRING
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$2.97
You save $0.33
-10%
4
Yamaha Motors
Primary Driven Gear43G-16150-00-00
Required: 1
PRIMARY DRIVEN GEAR COMP.
No longer availableSearch Nationwide Inventory
$301.49
You save $33.50
-10%
No longer availableSearch Nationwide Inventory
$101.69
You save $11.30
-10%
6
Yamaha Motors
"PLATE, CLUTCH 2"137-16325-80-00
Required: 5
PLATE, CLUTCH 2
Supersedes: 137-16325-70-00
$16.64
You save $1.85
-10%
7
Yamaha Motors
Friction Plate537-16321-00-00
Required: 6
PLATE, FRICTION
$17.09
You save $1.90
-10%
8
Yamaha Motors
PRESSURE PLATE 11W1-16351-00-00
Required: 1
PLATE, PRESSURE 1
No longer availableSearch Nationwide Inventory
$21.59
You save $2.40
-10%
9
Yamaha Motors
Compression Spring90501-20124-00
Required: 5
SPRING, COMPRESSION
$8.54
You save $0.95
-10%
10
Yamaha Motors
Screw With Washer90159-05011-00
Required: 5
SCREW, WITH WASHER
$3.42
You save $0.38
-10%
11
Yamaha Motors
Plate Washer90201-174E1-00
Required: 1
WASHER, PLATE
$8.54
You save $0.95
-10%
12
Yamaha Motors
Spacer90560-17335-00
Required: 1
SPACER
Supersedes: 90560-17232-00
No longer availableSearch Nationwide Inventory
$18.89
You save $2.10
-10%
13
Yamaha Motors
Plate Washer90201-174E1-00
Required: 1
WASHER, PLATE
$8.54
You save $0.95
-10%
$9.44
You save $1.05
-10%
$9.44
You save $1.05
-10%
$10.79
You save $1.20
-15%
17
Yamaha Motors
Ball93503-16003-00
Required: 1
BALL
Supersedes: 93503-16010-00
In stock
5+ in stock
$2.46
You save $0.44
-10%
18
Yamaha Motors
Push Plate1W1-16358-01-00
Required: 1
PLATE, PUSH
Supersedes: 1W1-16358-00-00
$23.39
You save $2.60
-15%
19
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
WASHER, PLAIN
Supersedes: 92901-06200-00
In stock
5+ in stock
$0.85
You save $0.15
-15%
In stock
5+ in stock
$4.17
You save $0.74
-10%
21
Yamaha Motors
PUSH ROD1W1-16356-02-00
Required: 1
ROD, PUSH 1
Supersedes: 1W1-16356-01-00
$17.09
You save $1.90
-10%
22
Yamaha Motors
PUSH LEVER ASSEMBLY3R3-16380-02-00
Required: 1
PUSH LEVER ASSY
No longer availableSearch Nationwide Inventory
$76.49
You save $8.50
-10%
23
Yamaha Motors
Torsion Spring90508-14426-00
Required: 1
SPRING, TORSION
No longer availableSearch Nationwide Inventory
$7.19
You save $0.80
-10%
24
Yamaha Motors
Plate Washer90201-14217-00
Required: 1
WASHER, PLATE
$10.34
You save $1.15
-10%
No longer availableSearch Nationwide Inventory
$10.79
You save $1.20
-10%
$32.39
You save $3.60
-10%
$3.11
You save $0.34
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
