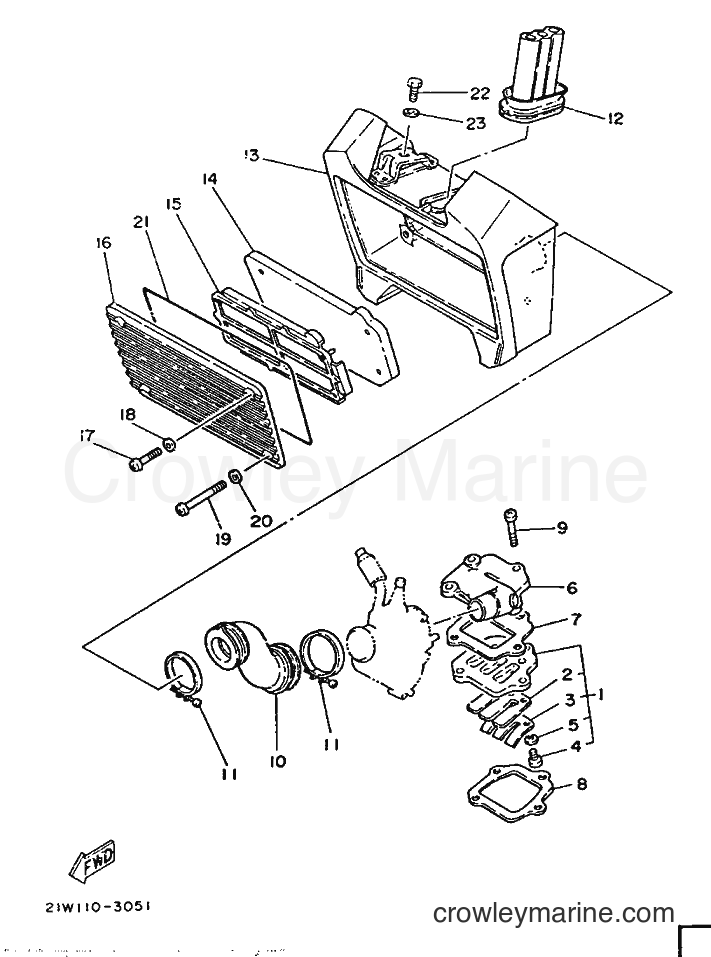

1986 Dirt Bike PW80K - PW80K (21W) [999] INTAKE diagram
![Yamaha Motors PW80K (21W) [999] - INTAKE](https://cdn.crowleymarine.com/yamaha/LJ0w0aAy.png)
-10%
1
Yamaha Motors
REED VALVE ASSEMBLY1HA-13610-01-00
Required: 1
REED VALVE ASSY
Supersedes: 300-13610-01-00
No longer availableSearch Nationwide Inventory
$96.29
You save $10.70
-10%
2
Yamaha Motors
Reed Valve56J-13613-00-00
Required: 1
. REED, VALVE
Supersedes: 300-13613-02-00
$24.29
You save $2.70
-10%
3
Yamaha Motors
REED VALVE STOPPER300-13616-00-00
Required: 1
. STOPPER, REED VALVE
$6.74
You save $0.75
-10%
4
Yamaha Motors
Pan Head Screw98580-03008-00
Required: 3
. SCREW, PAN HEAD
Supersedes: 98501-03008-00
$3.46
You save $0.38
-10%
5
Yamaha Motors
Spring Washer92990-03100-00
Required: 3
. WASHER, SPRING
$8.54
You save $0.95
-10%
6
Yamaha Motors
Intake Manifold21W-13555-00-00
Required: 1
MANIFOLD, INTAKE
$16.19
You save $1.80
-10%
7
Yamaha Motors
Valve Seat Gasket300-13622-10-00
Required: 1
GASKET, VALVE SEAT
Supersedes: 300-13622-02-00
$20.69
You save $2.30
-10%
8
Yamaha Motors
Valve Seat Gasket300-13621-10-00
Required: 1
GASKET, VALVE SEAT
Supersedes: 300-13621-01-00
$19.79
You save $2.20
-10%
9
Yamaha Motors
98580-06030-0098501-06030-00
Required: 4
SCREW, PAN HEAD
Supersedes: 92501-06030-00
No longer availableSearch Nationwide Inventory
$4.55
You save $0.50
-10%
10
Yamaha Motors
Air Cleaner Joint21W-14453-00-00
Required: 1
JOINT, AIR CLEANER 1
$35.09
You save $3.90
-10%
11
Yamaha Motors
90460-37130-0090460-37026-00
Required: 2
CLAMP, HOSE
Supersedes: 90460-37130-00
$9.44
You save $1.05
-10%
$13.94
You save $1.55
-10%
13
Yamaha Motors
Air Cleaner Case1RY-W1441-00-00
Required: 1
AIR CLEANER CASE COMP.
No longer availableSearch Nationwide Inventory
$95.39
You save $10.60
-10%
14
Yamaha Motors
AIR CLEANER ELEMENT21W-14451-00-00
Required: 1
ELEMENT, AIR CLEANER
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$17.09
You save $1.90
-10%
16
Yamaha Motors
CLEANER CASE CAP 121W-14412-00-00
Required: 1
CAP, CLEANER CASE 1
No longer availableSearch Nationwide Inventory
$26.09
You save $2.90
-10%
17
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98506-05025-00
$8.54
You save $0.95
18
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
Supersedes: 92906-05600-00
$1.98
-10%
19
Yamaha Motors
Pan Screw98507-05050-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98506-05050-00
$2.12
You save $0.23
20
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
Supersedes: 92906-05600-00
$1.98
-10%
$17.99
You save $2.00
-10%
No longer availableSearch Nationwide Inventory
$2.30
You save $0.25
-10%
23
Yamaha Motors
WASHER92907-08600-00
Required: 2
WASHER, PLATE
Supersedes: 92906-08600-00
$2.93
You save $0.32
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
