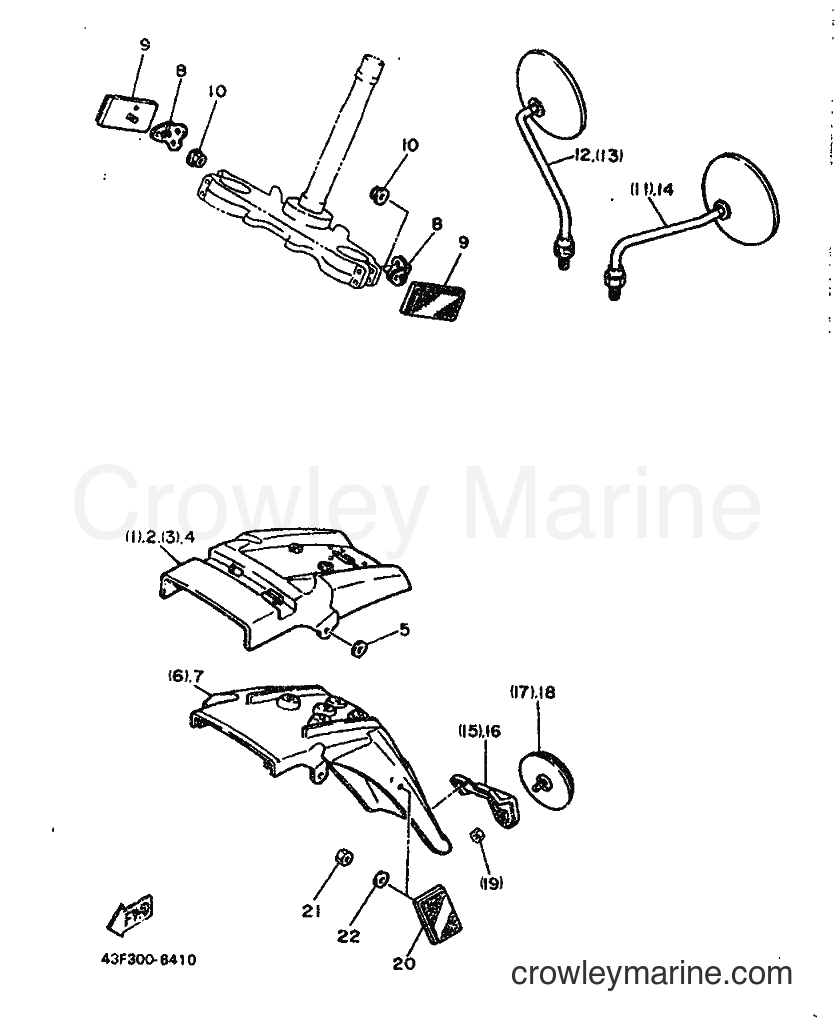

1986 Dirt Bike XT600 - XT600 (43F) [999] ALTERNATE FOR CHASSIS 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XT600 (43F) [999] - ALTERNATE FOR CHASSIS 2
Change View:
-10%
REAR FENDER
1
Yamaha Motors
REAR FENDER34L-21611-20-00
Required: 1
FENDER, REAR
Cross Ship
Leaves in 2-5 days
$38.99
$35.09
You save $3.90
More details
FENDER, REAR
2
Yamaha Motors
FENDER, REAR34L-21611-30
Required: 1
FENDER, REAR
Price unavailable
FENDER, REAR
3
Yamaha Motors
FENDER, REAR43F-21611-10
Required: 1
FENDER, REAR
Price unavailable
FENDER, REAR
4
Yamaha Motors
FENDER, REAR43F-21611-20
Required: 1
FENDER, REAR
Price unavailable
-10%
Plate Washer
5
Yamaha Motors
Plate Washer90201-08020-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
BRACKET, LICENSE
7
Yamaha Motors
BRACKET, LICENSE43F-21685-00
Required: 1
BRACKET, LICENSE
Price unavailable
-10%
REFLECTOR BRACKET
8
Yamaha Motors
REFLECTOR BRACKET49R-85112-00-00
Required: 2
BRACKET, REFLECTOR 1
Cross Ship
Leaves in 2-5 days
$24.99
$22.49
You save $2.50
More details
-10%
Front Reflector Assembly
9
Yamaha Motors
Front Reflector Assembly23V-85110-00-00
Required: 2
REFLECTOR ASSY
Supersedes: 20G-85110-00-00
Cross Ship
Leaves in 2-5 days
$30.99
$27.89
You save $3.10
More details
-10%
Flange Nut
10
Yamaha Motors
Flange Nut95702-05500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.95
$0.85
You save $0.09
More details
REAR VIEW MIRROR ASSY (RIGHT)
11
Yamaha Motors
REAR VIEW MIRROR ASSY (RIGHT)43F-26290-00
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
REAR VIEW MIRROR ASSY (RIGHT)
12
Yamaha Motors
REAR VIEW MIRROR ASSY (RIGHT)30X-26290-01
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
REAR VIEW MIRROR ASSY (RIGHT)
13
Yamaha Motors
REAR VIEW MIRROR ASSY (RIGHT)43F-26290-10
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
REAR VIEW MIRROR ASSY (RIGHT)
14
Yamaha Motors
REAR VIEW MIRROR ASSY (RIGHT)30X-26290-10
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
BRACKET, REFLECTOR 1
16
Yamaha Motors
BRACKET, REFLECTOR 110V-85132-01
Required: 1
BRACKET, REFLECTOR 1
Price unavailable
-10%
Rear Reflector
18
Yamaha Motors
Rear Reflector449-85131-02-00
Required: 1
REFLECTOR, REAR 1
Cross Ship
Leaves in 2-5 days
$33.99
$30.59
You save $3.40
More details
-10%
Front Reflector Assembly
20
Yamaha Motors
Front Reflector Assembly23V-85110-00-00
Required: 2
REFLECTOR ASSY
Supersedes: 20G-85110-00-00
Cross Ship
Leaves in 2-5 days
$30.99
$27.89
You save $3.10
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
