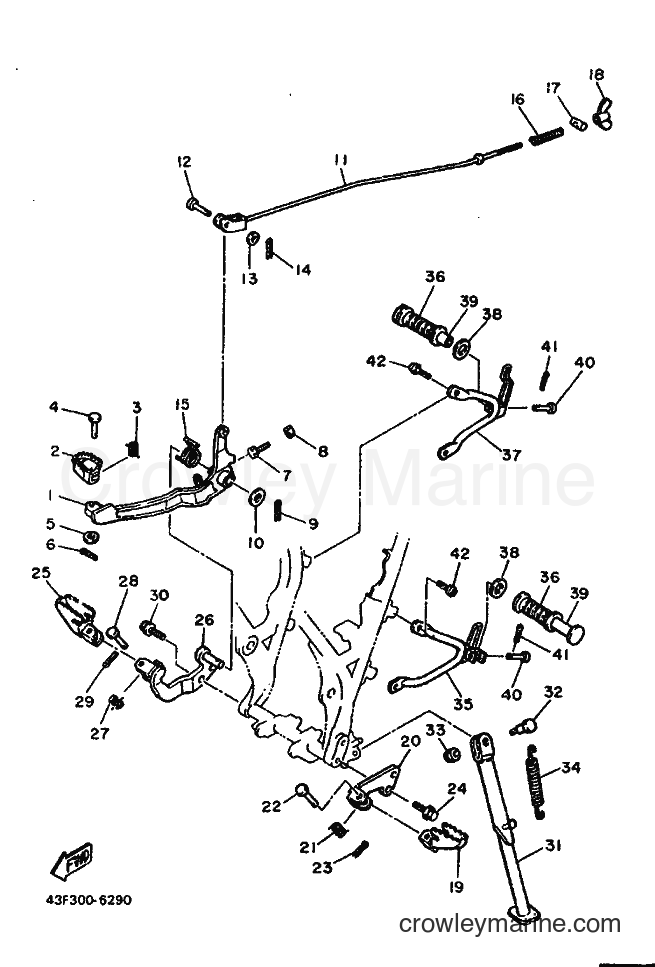

1986 Dirt Bike XT600 - XT600 (43F) [999] STAND & FOOTREST diagram
![Yamaha Motors XT600 (43F) [999] - STAND & FOOTREST](https://cdn.crowleymarine.com/yamaha/eT85vVYn.png)
-10%
1
Yamaha Motors
Brake Pedal1VJ-27200-00-90
Required: 1
PEDAL, BRAKE
Supersedes: 34L-27211-01-90
No longer availableSearch Nationwide Inventory
$98.09
You save $10.90
-10%
$23.39
You save $2.60
-10%
3
Yamaha Motors
Torsion Spring90508-14352-00
Required: 1
SPRING, TORSION
$9.44
You save $1.05
-10%
$2.43
You save $0.27
-15%
5
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
-15%
6
Yamaha Motors
Cotter Pin91490-20015-00
Required: 1
PIN, COTTER
Supersedes: 91401-20015-00
In stock
5+ in stock
$1.87
You save $0.33
-10%
7
Yamaha Motors
Bolt97017-06025-00
Required: 1
BOLT
Supersedes: 90101-06288-00
$4.09
You save $0.46
-15%
In stock
5+ in stock
$4.17
You save $0.74
-15%
9
Yamaha Motors
PIN. COTTER91490-30025-00
Required: 1
PIN, COTTER
Supersedes: 91401-30020-00
In stock
Only 1 remaining
$3.39
You save $0.60
-10%
10
Yamaha Motors
Plate Washer90201-14215-00
Required: 1
WASHER, PLATE
$10.34
You save $1.15
-10%
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-10%
12
Yamaha Motors
Pin Clevis90240-06103-00
Required: 1
PIN, CLEVIS
Supersedes: 90240-06040-00
$7.64
You save $0.85
-15%
13
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
WASHER, PLAIN
Supersedes: 92901-06200-00
In stock
5+ in stock
$0.85
You save $0.15
-15%
14
Yamaha Motors
Cotter Pin91490-20015-00
Required: 1
PIN, COTTER
Supersedes: 91401-20015-00
In stock
5+ in stock
$1.87
You save $0.33
-10%
15
Yamaha Motors
Torsion Spring90508-32690-00
Required: 1
SPRING, TORSION
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
16
Yamaha Motors
Compression Spring90501-10245-00
Required: 1
SPRING, COMPRESSION
$8.54
You save $0.95
17
Yamaha Motors
SCREW90149-12008
Required: 1
SCREW
Price unavailable
-50%
In stock
Only 1 remaining
$2.75
You save $2.75
-10%
19
Yamaha Motors
Footrest22W-27411-01-90
Required: 1
FOOTREST 1
Supersedes: 22W-27411-00-90
$32.39
You save $3.60
-10%
20
Yamaha Motors
Footrest Bracket34L-27412-00-R4
Required: 1
BRACKET, FOOTREST 1
No longer availableSearch Nationwide Inventory
$45.89
You save $5.10
-10%
21
Yamaha Motors
Torsion Spring90508-20023-00
Required: 1
SPRING, TORSION
$3.83
You save $0.42
-10%
$4.00
You save $0.45
No longer availableSearch Nationwide Inventory
$0.61
-50%
24
Yamaha Motors
FLANGE BOLT95817-10025-00
Required: 2
BOLT, FLANGE
Supersedes: 95821-10025-00
In stock
Only 1 remaining
$4.75
You save $4.75
-50%
25
Yamaha Motors
Footrest22W-27421-01-90
Required: 1
FOOTREST 2
Supersedes: 22W-27421-00-90
In stock
Only 1 remaining
$18.00
You save $18.00
-10%
26
Yamaha Motors
Footrest Bracket34L-27422-01-00
Required: 1
BRACKET, FOOTREST 2
Supersedes: 34L-27422-01-R4
No longer availableSearch Nationwide Inventory
$106.19
You save $11.80
-10%
27
Yamaha Motors
Torsion Spring90508-20023-00
Required: 1
SPRING, TORSION
$3.83
You save $0.42
28
Yamaha Motors
PIN, CLEVIS91701-08068
Required: 1
PIN, CLEVIS
Price unavailable
No longer availableSearch Nationwide Inventory
$0.61
-50%
30
Yamaha Motors
FLANGE BOLT95817-10025-00
Required: 2
BOLT, FLANGE
Supersedes: 95821-10025-00
In stock
Only 1 remaining
$4.75
You save $4.75
-10%
31
Yamaha Motors
SIDE STAND55W-27311-01-00
Required: 1
STAND, SIDE
Supersedes: 55W-27311-00-R4
No longer availableSearch Nationwide Inventory
$80.99
You save $9.00
-10%
No longer availableSearch Nationwide Inventory
$8.99
You save $1.00
-10%
33
Yamaha Motors
Self-Locking Nut90185-12119-00
Required: 1
NUT, SELF-LOCKING
$11.24
You save $1.25
-10%
34
Yamaha Motors
TENSION SPRING90507-29009-00
Required: 1
SPRING, TENSION
$20.69
You save $2.30
-10%
No longer availableSearch Nationwide Inventory
$61.19
You save $6.80
-10%
36
Yamaha Motors
RR FOOTREST COVER120-27433-00-00
Required: 2
COVER, REAR FOOTREST
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$41.39
You save $4.60
-10%
38
Yamaha Motors
Plate Washer90201-20279-00
Required: 2
WASHER, PLATE
$8.54
You save $0.95
-10%
39
Yamaha Motors
Footrest2GV-27431-00-00
Required: 2
FOOTREST, REAR 1
Supersedes: 120-27431-00-00
$33.29
You save $3.70
-10%
40
Yamaha Motors
CLEVIS PIN91701-06032-00
Required: 2
PIN, CLEVIS
Supersedes: 90240-06009-00
$9.44
You save $1.05
-10%
41
Yamaha Motors
Cotter Pin91490-16020-00
Required: 2
PIN, COTTER
Supersedes: 91401-16015-00
$6.29
You save $0.70
-10%
$9.44
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
