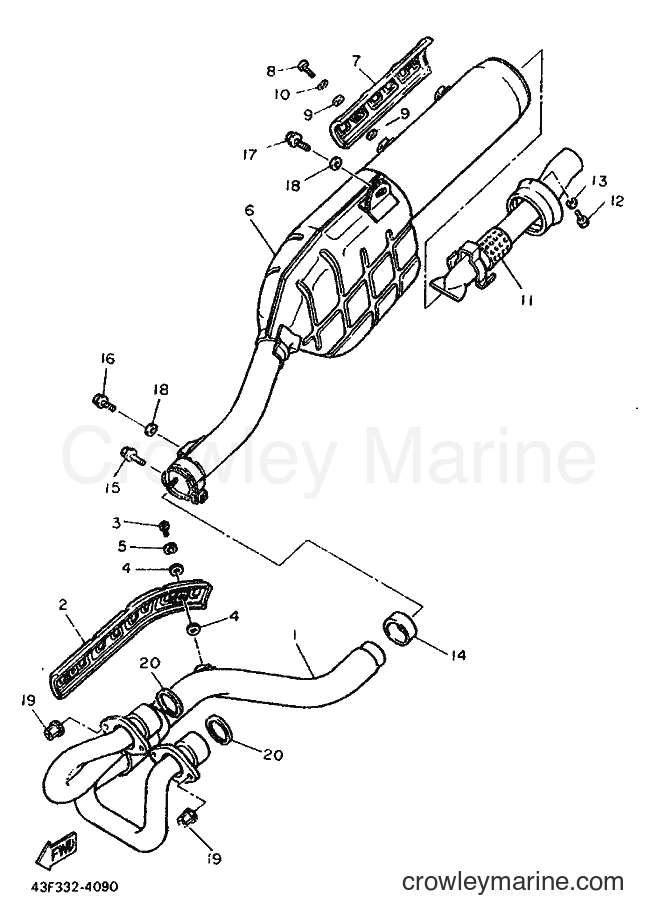

1986 Dirt Bike XT600 - XT600 (49H) [999] EXHAUST diagram
![Yamaha Motors XT600 (49H) [999] - EXHAUST](https://cdn.crowleymarine.com/yamaha/nKXW3M8S.png)
-10%
1
Yamaha Motors
Exhaust Pipe34K-14611-01-00
Required: 1
PIPE, EXHAUST 1
Supersedes: 34K-14611-00-00
No longer availableSearch Nationwide Inventory
$268.19
You save $29.80
-10%
2
Yamaha Motors
EXHAUST PIPE PROTECTOR54G-14628-01-00
Required: 1
PROTECTOR, EXHAUST PIPE
Supersedes: 34K-14628-00-00
No longer availableSearch Nationwide Inventory
$37.79
You save $4.20
-10%
3
Yamaha Motors
Tapping Screw90164-06017-00
Required: 2
SCREW, TAPPING
$8.54
You save $0.95
-10%
4
Yamaha Motors
WASHER PROTECTOR30X-14766-00-00
Required: 4
WASHER, PROTECTOR
No longer availableSearch Nationwide Inventory
$1.98
You save $0.22
-50%
5
Yamaha Motors
Wave Washer90206-06090-00
Required: 2
WASHER, WAVE
Supersedes: 90206-06060-00
In stock
Only 3 remaining
$4.75
You save $4.75
6
Yamaha Motors
MUFFLER 134L-14711-00
Required: 1
MUFFLER 1
Price unavailable
-10%
7
Yamaha Motors
Muffler Protector54G-14728-00-00
Required: 1
PROTECTOR, MUFFLER 2
Supersedes: 34L-14728-00-00
No longer availableSearch Nationwide Inventory
$31.49
You save $3.50
-10%
8
Yamaha Motors
Bind Screw98907-06010-00
Required: 2
SCREW, BIND
Supersedes: 98906-06010-00
$1.62
You save $0.18
-20%
9
Yamaha Motors
Plate Washer90202-05187-00
Required: 4
WASHER, PROTECTOR
Supersedes: 583-14766-00-00
In stock
Only 4 remaining
$1.36
You save $0.34
-50%
10
Yamaha Motors
Wave Washer90206-06090-00
Required: 2
WASHER, WAVE
Supersedes: 90206-06060-00
In stock
Only 3 remaining
$4.75
You save $4.75
11
Yamaha Motors
PIPE, OUTLET43F-14752-61
Required: 1
PIPE, OUTLET
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-15%
13
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
14
Yamaha Motors
Silencer Gasket3YF-14755-00-00
Required: 1
GASKET, MUFFLER
Supersedes: 34K-14714-00-00
$34.19
You save $3.80
-50%
15
Yamaha Motors
Flange Bolt95817-08045-00
Required: 1
BOLT, FLANGE
Supersedes: 95816-08045-00
In stock
Only 1 remaining
$1.84
You save $1.84
-50%
16
Yamaha Motors
Flange Bolt95817-08012-00
Required: 1
BOLT, FLANGE
Supersedes: 95811-08012-00
In stock
Only 1 remaining
$2.75
You save $2.75
-10%
No longer availableSearch Nationwide Inventory
$1.44
You save $0.16
-10%
18
Yamaha Motors
Plate Washer90201-08326-00
Required: 2
WASHER, PLATE
$8.54
You save $0.95
-50%
In stock
Only 1 remaining
$4.25
You save $4.25
-10%
20
Yamaha Motors
EXHAUST PIPE GASKET3YF-14613-01-00
Required: 2
GASKET, EXHAUST PIPE
Supersedes: 5Y1-14613-00-00
$13.04
You save $1.45
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
