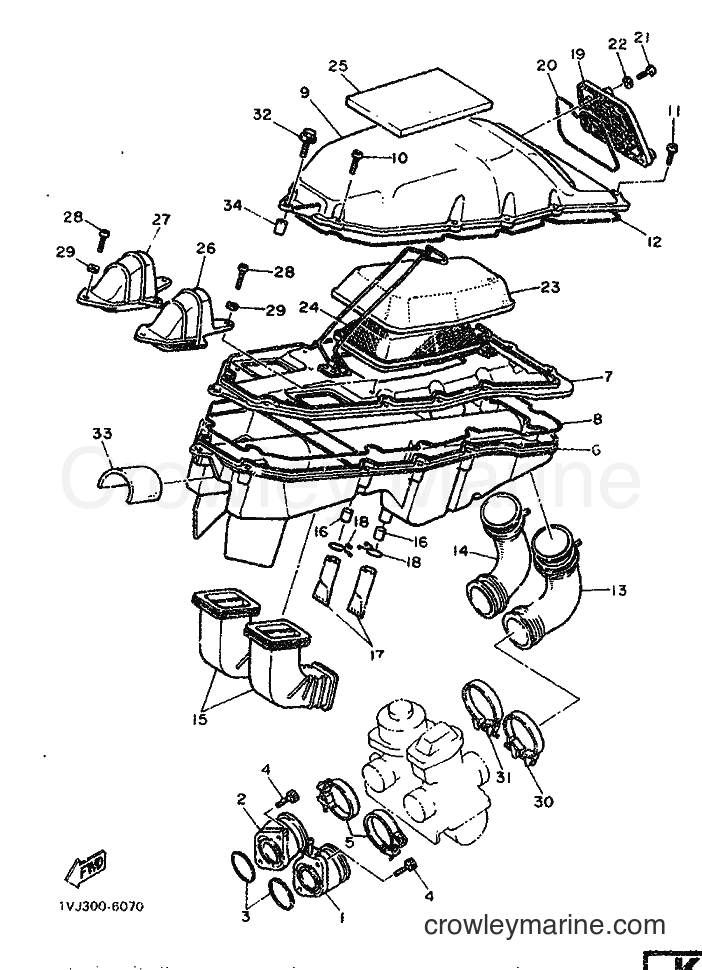

1986 Dirt Bike XT600ZS - XT600ZS (1VJ) [999] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XT600ZS (1VJ) [999] - INTAKE
Change View:
-10%
JOINT, CARB. 1
1
Yamaha Motors
JOINT, CARB. 143F-13586-01-00
Required: 1
JOINT, CARBURETOR 1
Cross Ship
Leaves in 2-5 days
$124.99
$112.49
You save $12.50
More details
-10%
Carburetor Joint
2
Yamaha Motors
Carburetor Joint1VJ-13596-00-00
Required: 1
JOINT, CARBURETOR 2
Cross Ship
Leaves in 2-5 days
$139.99
$125.99
You save $14.00
More details
-10%
O-RING (2TY)
3
Yamaha Motors
O-RING (2TY)93210-36769-00
Required: 2
O-RING
Supersedes: 93210-36549-00
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
CASE, AIR CLEANER 1
6
Yamaha Motors
CASE, AIR CLEANER 11VJ-14411-02
Required: 1
CASE, AIR CLEANER 1
Price unavailable
AIR CLEANER CASE COMP.
7
Yamaha Motors
AIR CLEANER CASE COMP.1VJ-W1441-01
Required: 1
AIR CLEANER CASE COMP.
Price unavailable
-10%
Shift Bracket Seal
8
Yamaha Motors
Shift Bracket Seal1VJ-14462-00-00
Required: 1
SEAL
Cross Ship
Leaves in 2-5 days
$19.99
$17.99
You save $2.00
More details
CASE, AIR CLEANER 2
9
Yamaha Motors
CASE, AIR CLEANER 21VJ-14421-01
Required: 1
CASE, AIR CLEANER 2
Price unavailable
SCREW, TAPPING
10
Yamaha Motors
SCREW, TAPPING97706-50530
Required: 8
SCREW, TAPPING
Price unavailable
SEAL
12
Yamaha Motors
SEAL10V-14452-00
Required: 1
SEAL
Price unavailable
JOINT, AIR CLEANER 1
13
Yamaha Motors
JOINT, AIR CLEANER 11VJ-14453-00
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
JOINT
14
Yamaha Motors
JOINT1VJ-14454-00
Required: 1
JOINT
Price unavailable
DUCT
15
Yamaha Motors
DUCT1VJ-14437-00
Required: 2
DUCT
Price unavailable
-10%
Clip
18
Yamaha Motors
Clip90467-14015-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
CAP, CLEANER CASE 1
19
Yamaha Motors
CAP, CLEANER CASE 11VJ-14412-00
Required: 1
CAP, CLEANER CASE 1
Price unavailable
Plate Washer
22
Yamaha Motors
Plate Washer92907-05600-00
Required: 3
WASHER, PLATE
Supersedes: 92906-05600-00
Cross Ship
Leaves in 2-5 days
$1.98
More details
ELEMENT, AIR CLEANER
23
Yamaha Motors
ELEMENT, AIR CLEANER1VJ-14451-00
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
GUIDE
24
Yamaha Motors
GUIDE1VJ-14458-00
Required: 1
GUIDE
Price unavailable
FUNNEL, AIR
26
Yamaha Motors
FUNNEL, AIR1VJ-14469-00
Required: 1
FUNNEL, AIR
Price unavailable
FUNNEL
27
Yamaha Motors
FUNNEL1VJ-14479-00
Required: 1
FUNNEL
Price unavailable
Plate Washer
29
Yamaha Motors
Plate Washer92907-05600-00
Required: 6
WASHER, PLATE
Supersedes: 92906-05600-00
Cross Ship
Leaves in 2-5 days
$1.98
More details
-10%
Hose Clamp
30
Yamaha Motors
Hose Clamp90460-51059-00
Required: 1
CLAMP, HOSE
Cross Ship
Leaves in 2-5 days
$18.49
$16.64
You save $1.85
More details
-10%
Hose Clamp Assembly
31
Yamaha Motors
Hose Clamp Assembly90450-58002-00
Required: 1
CLAMP, HOSE
Supersedes: 90460-58015-00
Cross Ship
Leaves in 2-5 days
$18.49
$16.64
You save $1.85
More details
-10%
COLLAR
34
Yamaha Motors
COLLAR90387-06158-00
Required: 1
COLLAR
Supersedes: 90387-06388-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
