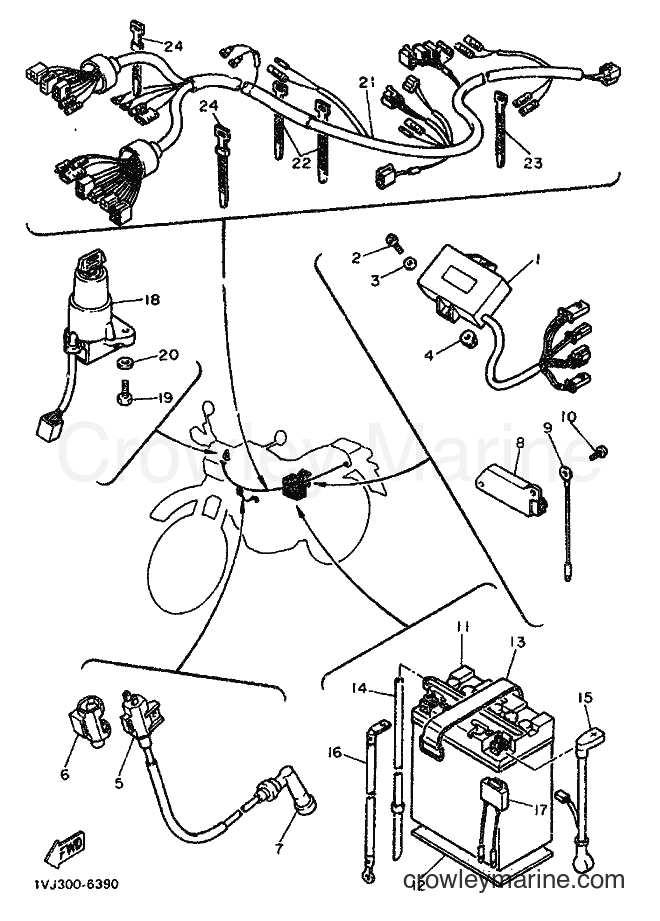

1986 Dirt Bike XT600ZS - XT600ZS (1VJ) [999] ELECTRICAL 1 diagram
![Yamaha Motors XT600ZS (1VJ) [999] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/pddZg9fH.png)
1
Yamaha Motors
C.D.I. UNIT ASSY1VJ-85540-50
Required: 1
C.D.I. UNIT ASSY
Price unavailable
-15%
2
Yamaha Motors
Pan Head Screw98580-06020-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92501-06020-00
In stock
Only 1 remaining
$8.07
You save $1.42
-15%
3
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
-20%
In stock
Only 1 remaining
$2.08
You save $0.52
5
Yamaha Motors
IGNITION COIL ASSY1VJ-82310-50
Required: 1
IGNITION COIL ASSY
Price unavailable
6
Yamaha Motors
DAMPER, IGNITION COIL1VJ-82317-00
Required: 1
DAMPER, IGNITION COIL
Price unavailable
-10%
7
Yamaha Motors
Plug Cap Assembly4VW-82370-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 371-82370-00-00
$68.39
You save $7.60
8
Yamaha Motors
RECTIFIER & REGULATOR ASSY47X-81960-A0
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
-10%
9
Yamaha Motors
EARTH LEAD WIRE1VJ-82519-00-00
Required: 1
WIRE, EARTH LEAD
No longer availableSearch Nationwide Inventory
$1.24
You save $0.14
-10%
10
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06012-00
$3.69
You save $0.41
11
Yamaha Motors
BATTERY ASSY1VJ-82110-60
Required: 1
BATTERY ASSY
Price unavailable
-10%
$7.64
You save $0.85
-10%
$27.89
You save $3.10
-10%
14
Yamaha Motors
Hose (3GG)90445-084J0-00
Required: 1
HOSE
Supersedes: 90445-087E1-00
$18.89
You save $2.10
15
Yamaha Motors
WIRE, PLUS LEAD1VJ-82115-00
Required: 1
WIRE, PLUS LEAD
Price unavailable
-10%
16
Yamaha Motors
MINUS LEAD WIRE1VJ-82116-00-00
Required: 1
WIRE, MINUS LEAD
No longer availableSearch Nationwide Inventory
$36.89
You save $4.10
-10%
17
Yamaha Motors
CIRCUIT BRKR.ASY5Y1-82180-00-00
Required: 1
CIRCUIT BREAKER ASSY
No longer availableSearch Nationwide Inventory
$34.19
You save $3.80
18
Yamaha Motors
MAIN SWITCH STEERING LOCK5Y3-82501-80
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$1.67
You save $0.19
-15%
20
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
21
Yamaha Motors
WIRE HARNESS ASSY1VJ-82590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
-20%
In stock
Only 1 remaining
$4.39
You save $1.10
-10%
23
Yamaha Motors
Band1UA-82591-00-00
Required: 1
BAND
Supersedes: 5A8-82591-00-00
$4.94
You save $0.55
-10%
24
Yamaha Motors
Band1UA-82591-00-00
Required: 2
BAND
Supersedes: 5A8-82591-00-00
$4.94
You save $0.55
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
