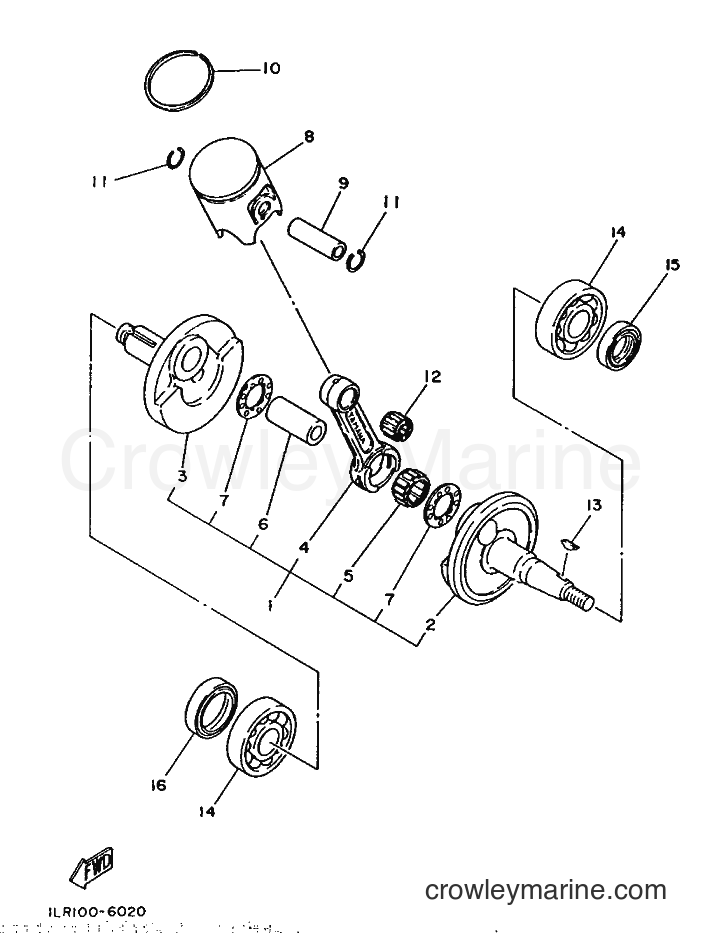

1986 Dirt Bike YZ80 - YZ80 (1LR) [999] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YZ80 (1LR) [999] - CRANKSHAFT & PISTON
Change View:
-10%
BEARING,CYL.#10
5
Yamaha Motors
BEARING,CYL.#1093310-418M6-00
Required: 1
. BEARING
Cross Ship
Leaves in 2-5 days
$79.99
$71.99
You save $8.00
More details
-10%
Washer
7
Yamaha Motors
Washer90209-18112-00
Required: 2
. WASHER
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
PISTON (0.50MM O/S)
8
Yamaha Motors
PISTON (0.50MM O/S)58T-11636-10
Required: 1
PISTON (0.50MM O/S)
Price unavailable
PISTON (0.75MM O/S)
8
Yamaha Motors
PISTON (0.75MM O/S)58T-11637-10
Required: 1
PISTON (0.75MM O/S)
Price unavailable
PISTON (STD)
8
Yamaha Motors
PISTON (STD)58T-11631-10-95
Required: 1
PISTON (STD)
Price unavailable
PISTON (0.25MM O/S)
8
Yamaha Motors
PISTON (0.25MM O/S)58T-11635-10
Required: 1
PISTON (0.25MM O/S)
Price unavailable
PISTON (STD)
8
Yamaha Motors
PISTON (STD)58T-11631-10-94
Required: 1
PISTON (STD)
Price unavailable
PISTON (1.00MM O/S)
8
Yamaha Motors
PISTON (1.00MM O/S)58T-11638-10
Required: 1
PISTON (1.00MM O/S)
Price unavailable
-10%
Piston Pin
9
Yamaha Motors
Piston Pin4V1-11633-00-00
Required: 1
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$12.99
$11.69
You save $1.30
More details
-10%
Piston Ring Set
10
Yamaha Motors
Piston Ring Set43K-11611-00-00
Required: 1
RING, PISTON
Cross Ship
Leaves in 2-5 days
$37.99
$34.19
You save $3.80
More details
RING, PISTON
10
Yamaha Motors
RING, PISTON43K-11611-20
Required: 1
RING, PISTON
Price unavailable
RING, PISTON
10
Yamaha Motors
RING, PISTON43K-11611-10
Required: 1
RING, PISTON
Price unavailable
RING, PISTON
10
Yamaha Motors
RING, PISTON43K-11611-40
Required: 1
RING, PISTON
Price unavailable
RING, PISTON
10
Yamaha Motors
RING, PISTON43K-11611-30
Required: 1
RING, PISTON
Price unavailable
-10%
Circle Clip
11
Yamaha Motors
Circle Clip93450-13130-00
Required: 2
CLIP, PISTON PIN
Supersedes: 5X2-11634-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Woodruff Key
13
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
SW-TYPE OIL SEAL
16
Yamaha Motors
SW-TYPE OIL SEAL93103-28011-00
Required: 1
OIL SEAL
Supersedes: 93103-28126-00
Cross Ship
Leaves in 2-5 days
$16.49
$14.84
You save $1.65
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
