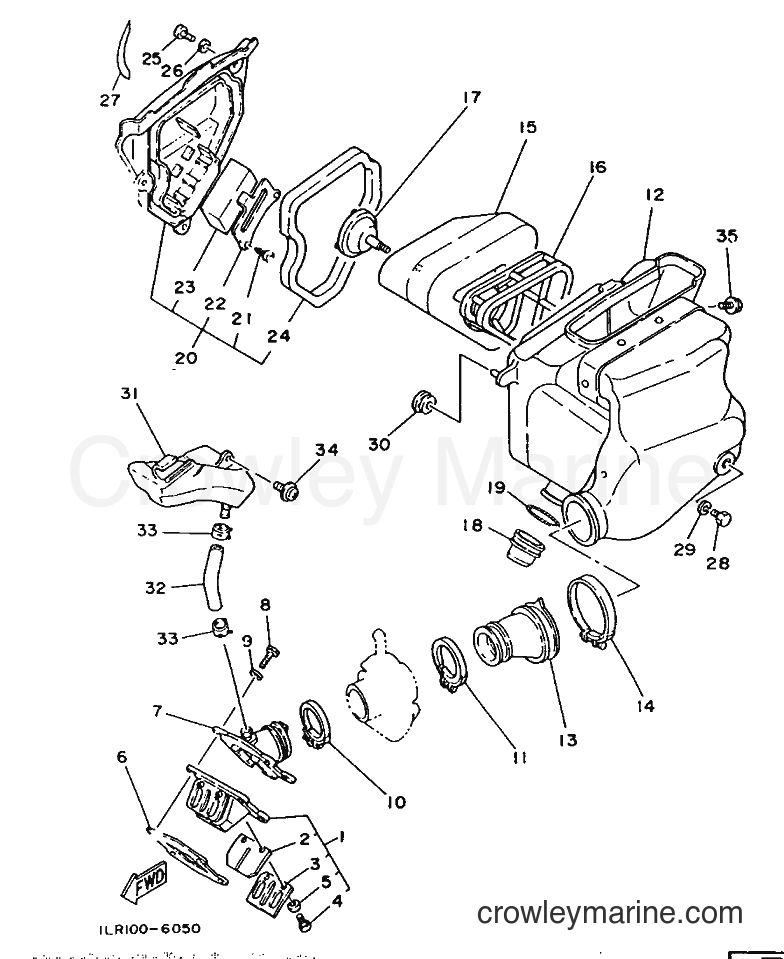

1986 Dirt Bike YZ80 - YZ80 (1LR) [999] INTAKE diagram
![Yamaha Motors YZ80 (1LR) [999] - INTAKE](https://cdn.crowleymarine.com/yamaha/97sJdr1C.png)
-10%
1
Yamaha Motors
REED VALVE ASSEMBLY58T-13610-01-00
Required: 1
REED VALVE ASSY
No longer availableSearch Nationwide Inventory
$84.59
You save $9.40
-10%
2
Yamaha Motors
Reed Valve58T-13613-00-00
Required: 2
. REED, VALVE
No longer availableSearch Nationwide Inventory
$24.29
You save $2.70
-10%
3
Yamaha Motors
REED VALVE STOPPER58T-13616-01-00
Required: 2
. STOPPER, REED VALVE
Supersedes: 58T-13616-00-00
$9.89
You save $1.10
-10%
4
Yamaha Motors
Pan Head Screw98580-03008-00
Required: 4
. SCREW, PAN HEAD
Supersedes: 98501-03008-00
$3.46
You save $0.38
-10%
5
Yamaha Motors
Spring Washer92990-03100-00
Required: 4
. WASHER, SPRING
$8.54
You save $0.95
-10%
6
Yamaha Motors
Valve Seat Gasket3JM-13621-00-00
Required: 1
GASKET, VALVE SEAT
Supersedes: 1LR-13621-00-00
$17.09
You save $1.90
-10%
7
Yamaha Motors
CARBURETOR JOINT1LR-13565-00-00
Required: 1
JOINT, CARBURETOR
No longer availableSearch Nationwide Inventory
$98.99
You save $11.00
-10%
8
Yamaha Motors
Bolt97017-06025-00
Required: 4
BOLT
Supersedes: 97301-06025-00
$4.09
You save $0.46
-15%
9
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
-10%
10
Yamaha Motors
Hose Clamp90460-43179-00
Required: 1
CLAMP, HOSE
Supersedes: 90460-43053-00
$19.79
You save $2.20
-10%
$16.64
You save $1.85
-10%
12
Yamaha Motors
AIR CLNR.CASE ASSY39K-14401-03-00
Required: 1
AIR CLEANER CASE ASSY
Supersedes: 39K-14401-02-00
No longer availableSearch Nationwide Inventory
$156.59
You save $17.40
-10%
13
Yamaha Motors
Air Cleaner Joint39K-14453-00-00
Required: 1
JOINT, AIR CLEANER 1
No longer availableSearch Nationwide Inventory
$56.69
You save $6.30
-10%
14
Yamaha Motors
Hose Clamp Assembly90450-58002-00
Required: 1
CLAMP, HOSE
Supersedes: 90460-58015-00
$16.64
You save $1.85
-10%
15
Yamaha Motors
AIR CLEANER ELEMENT39K-14451-00-00
Required: 1
ELEMENT, AIR CLEANER
No longer availableSearch Nationwide Inventory
$21.82
You save $2.42
-10%
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-10%
17
Yamaha Motors
ELEMENT FITTING PLATE4V2-14468-02-00
Required: 1
PLATE,ELEMENT FITTING
No longer availableSearch Nationwide Inventory
$18.89
You save $2.10
-10%
No longer availableSearch Nationwide Inventory
$14.39
You save $1.60
-10%
19
Yamaha Motors
Compression Spring90504-03033-00
Required: 1
SPRING, COMPRESSION
No longer availableSearch Nationwide Inventory
$3.92
You save $0.44
-10%
20
Yamaha Motors
AIR CLEANER CAP ASSEMBLY1LR-14402-00-00
Required: 1
CAP ASSY, AIR CLEANER
No longer availableSearch Nationwide Inventory
$52.19
You save $5.80
-10%
21
Yamaha Motors
Tapping Screw97780-40116-00
Required: 2
. SCREW, TAPPING
Supersedes: 97702-40116-00
$3.83
You save $0.42
-10%
No longer availableSearch Nationwide Inventory
$3.46
You save $0.38
-10%
No longer availableSearch Nationwide Inventory
$16.64
You save $1.85
-10%
No longer availableSearch Nationwide Inventory
$10.34
You save $1.15
-10%
25
Yamaha Motors
98501-06014-0092501-06014-00
Required: 3
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$0.81
You save $0.09
-15%
26
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
-10%
No longer availableSearch Nationwide Inventory
$4.10
You save $0.46
-50%
28
Yamaha Motors
Bolt97013-06012-00
Required: 1
BOLT
Supersedes: 97301-06012-00
In stock
Only 3 remaining
$3.25
You save $3.25
-15%
29
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
30
Yamaha Motors
GROMMET90480-13197
Required: 1
GROMMET
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$17.09
You save $1.90
-10%
No longer availableSearch Nationwide Inventory
$2.70
You save $0.30
-10%
33
Yamaha Motors
Clip90467-16181-00
Required: 1
CLIP
Supersedes: 90467-16063-00
$7.64
You save $0.85
-10%
34
Yamaha Motors
Screw with Washer90159-06060-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-06033-00
$8.54
You save $0.95
-10%
35
Yamaha Motors
Bolt With Washer90119-06123-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06085-00
$7.64
You save $0.85
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
