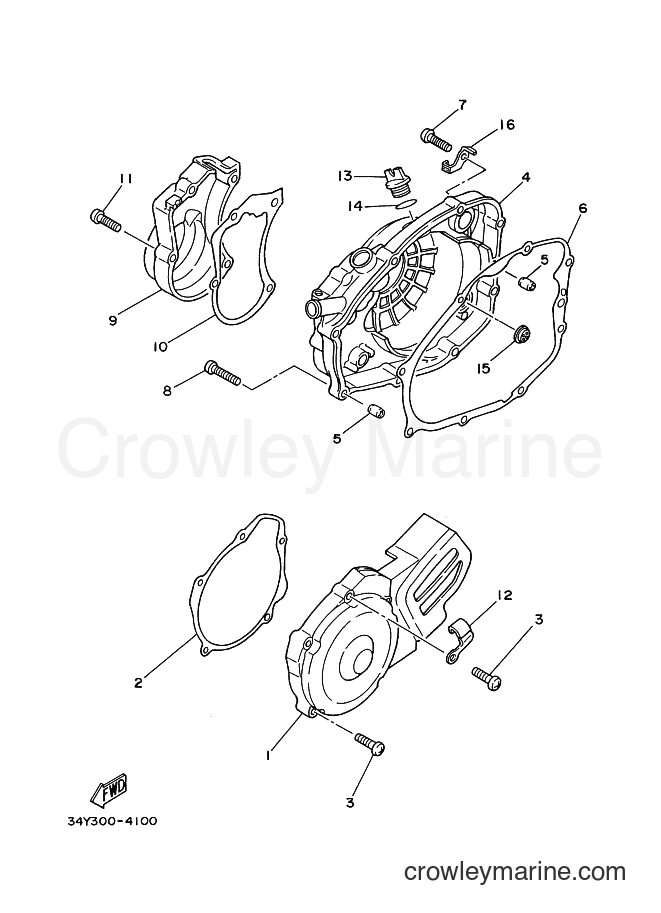

1987 Dirt Bike DT125 - DT125 (35E) [999] CRANKCASE COVER 1 diagram
![Yamaha Motors DT125 (35E) [999] - CRANKCASE COVER 1](https://cdn.crowleymarine.com/yamaha/xRugdE3K.png)
1
Yamaha Motors
COVER, CRANKCASE 110V-15411-01
Required: 1
COVER, CRANKCASE 1
Price unavailable
2
Yamaha Motors
GASKET 110V-15455-01
Required: 1
GASKET 1
Price unavailable
-10%
3
Yamaha Motors
98516-06030-0092516-06030-00
Required: 5
SCREW, PAN HEAD
Supersedes: 92506-06030-00
No longer availableSearch Nationwide Inventory
$3.02
You save $0.33
4
Yamaha Motors
COVER, CRANKCASE 234X-15421-00
Required: 1
COVER, CRANKCASE 2
Price unavailable
-15%
5
Yamaha Motors
Dowel Pin99530-10114-00
Required: 2
PIN, DOWEL
Supersedes: 99530-10014-00
In stock
Only 1 remaining
$2.25
You save $0.40
-10%
6
Yamaha Motors
Crankcase Cover Gasket3JM-15451-11-00
Required: 1
GASKET, CRANKCASE COVER 1
Supersedes: 10V-15451-01-00
$23.39
You save $2.60
-10%
7
Yamaha Motors
98516-06030-0092516-06030-00
Required: 7
SCREW, PAN HEAD
Supersedes: 92506-06030-00
No longer availableSearch Nationwide Inventory
$3.02
You save $0.33
-10%
8
Yamaha Motors
98506-06035-0092506-06035-00
Required: 1
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$0.95
You save $0.10
9
Yamaha Motors
COVER, OIL PUMP10V-15416-00
Required: 1
COVER, OIL PUMP
Price unavailable
10
Yamaha Motors
GASKET, OIL PUMP COVER 110V-15456-00
Required: 1
GASKET, OIL PUMP COVER 1
Price unavailable
-10%
11
Yamaha Motors
98516-06030-0092516-06030-00
Required: 4
SCREW, PAN HEAD
Supersedes: 92506-06030-00
No longer availableSearch Nationwide Inventory
$3.02
You save $0.33
-10%
$11.24
You save $1.25
-10%
13
Yamaha Motors
Oil Plug3Y1-15363-10-00
Required: 1
PLUG, OIL
Supersedes: 1RG-15363-00-00
$17.99
You save $2.00
-15%
In stock
Only 3 remaining
$7.64
You save $1.35
-10%
$30.59
You save $3.40
16
Yamaha Motors
CLAMP90465-16272
Required: 1
CLAMP
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
