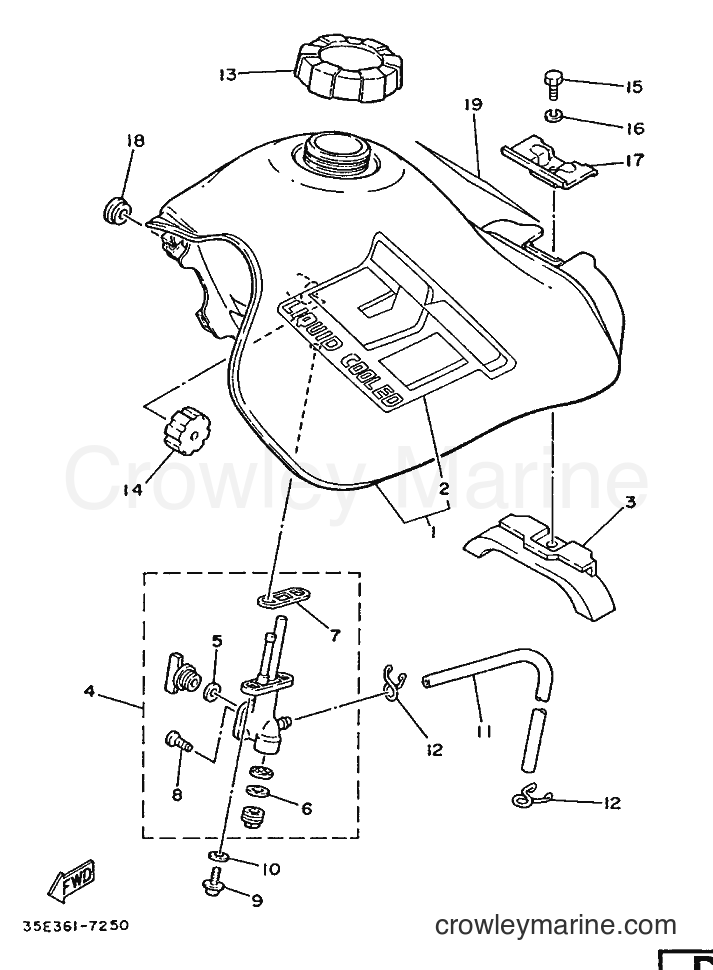

1987 Dirt Bike DT125 - DT125 (35E) [999] FUEL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors DT125 (35E) [999] - FUEL TANK
Change View:
FUEL TANK COMP.
1
Yamaha Motors
FUEL TANK COMP.34X-24110-01-X7
Required: 1
FUEL TANK COMP.
Price unavailable
FUEL TANK COMP.
1
Yamaha Motors
FUEL TANK COMP.34X-24110-01-X8
Required: 1
FUEL TANK COMP.
Price unavailable
. GRAPHIC, FUEL TANK 1
2
Yamaha Motors
. GRAPHIC, FUEL TANK 135E-24244-00
Required: 2
. GRAPHIC, FUEL TANK 1
Price unavailable
. GRAPHIC, FUEL TANK 1
2
Yamaha Motors
. GRAPHIC, FUEL TANK 135E-24244-10
Required: 2
. GRAPHIC, FUEL TANK 1
Price unavailable
DAMPER, LOCATING 2
3
Yamaha Motors
DAMPER, LOCATING 234X-24182-00
Required: 1
DAMPER, LOCATING 2
Price unavailable
FUEL COCK ASSY 1
4
Yamaha Motors
FUEL COCK ASSY 110V-24500-00
Required: 1
FUEL COCK ASSY 1
Price unavailable
-10%
O-Ring
7
Yamaha Motors
O-Ring4X8-24512-00-00
Required: 1
. GASKET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
Screw
9
Yamaha Motors
Screw90149-06011-00
Required: 2
SCREW
Cross Ship
Leaves in 2-5 days
$2.84
More details
-10%
Scissor Clip
12
Yamaha Motors
Scissor Clip90467-08003-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
-10%
Locating Damper
14
Yamaha Motors
Locating Damper3TB-24181-00-00
Required: 2
DAMPER, LOCATING 1
Supersedes: 278-24181-00-00
Cross Ship
Leaves in 2-5 days
$15.49
$13.94
You save $1.55
More details
WASHER, SPECIAL
17
Yamaha Motors
WASHER, SPECIAL34X-24186-01
Required: 1
WASHER, SPECIAL
Price unavailable
GROMMET
18
Yamaha Motors
GROMMET90480-13197
Required: 1
GROMMET
Price unavailable
LABEL, SAFETY
19
Yamaha Motors
LABEL, SAFETY34X-21659-00
Required: 1
LABEL, SAFETY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
