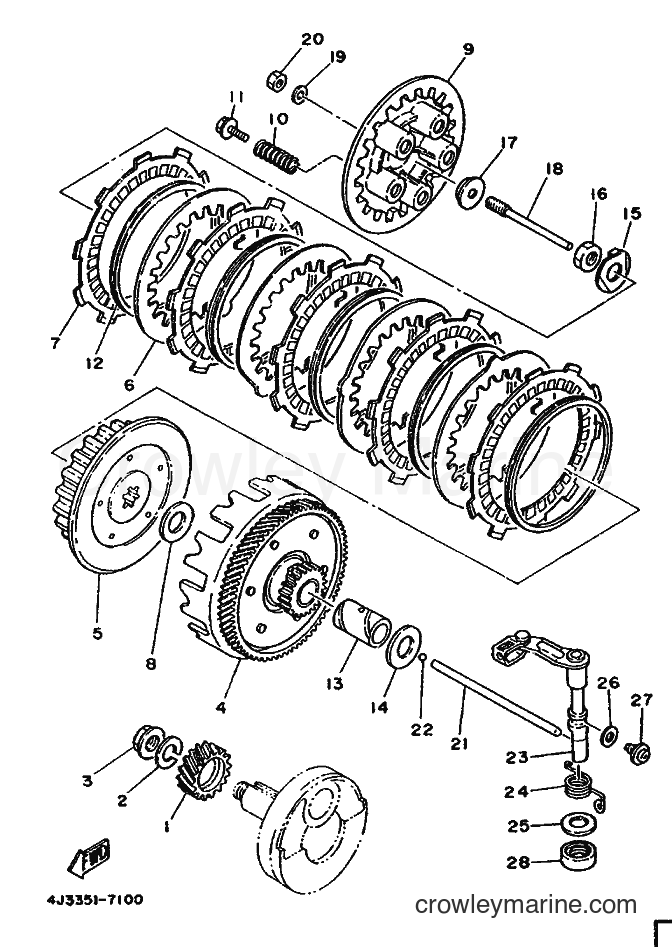

1987 Dirt Bike DT125-MX - DT125-MX (4J3) [999] CLUTCH diagram
![Yamaha Motors DT125-MX (4J3) [999] - CLUTCH](https://cdn.crowleymarine.com/yamaha/QY3qNRGI.png)
-10%
1
Yamaha Motors
PRIMARY DRIVE GEAR4FU-16111-00-00
Required: 1
GEAR, PRIMARY DRIVE
Supersedes: 2A6-16111-00-00
$53.09
You save $5.90
-10%
2
Yamaha Motors
SPRING WASHER90204-12007-00
Required: 1
WASHER, SPRING
$8.54
You save $0.95
-10%
In stock
Only 1 remaining
$8.54
You save $0.95
-10%
4
Yamaha Motors
Primary Driven Gear1W1-16150-01-00
Required: 1
PRIMARY DRIVEN GEAR COMP.
No longer availableSearch Nationwide Inventory
$239.39
You save $26.60
-10%
No longer availableSearch Nationwide Inventory
$81.89
You save $9.10
-10%
6
Yamaha Motors
PLATE, CLUTCH 12A6-16324-10-00
Required: 4
PLATE, CLUTCH 1
Supersedes: 2A6-16324-00-00
$14.84
You save $1.65
-10%
7
Yamaha Motors
Friction Plate36X-16321-00-00
Required: 5
PLATE, FRICTION
Supersedes: 559-16321-01-00
$17.09
You save $1.90
-10%
8
Yamaha Motors
Plate Washer90201-174E1-00
Required: 1
WASHER, PLATE
$8.54
You save $0.95
-10%
9
Yamaha Motors
PRESSURE PLATE 12A6-16351-00-00
Required: 1
PLATE, PRESSURE 1
No longer availableSearch Nationwide Inventory
$54.89
You save $6.10
-10%
10
Yamaha Motors
Compression Spring90501-20474-00
Required: 5
SPRING, COMPRESSION
$9.44
You save $1.05
-10%
11
Yamaha Motors
Screw With Washer90159-05011-00
Required: 5
SCREW, WITH WASHER
$3.42
You save $0.38
-10%
No longer availableSearch Nationwide Inventory
$16.19
You save $1.80
-10%
$29.69
You save $3.30
-10%
14
Yamaha Motors
Plate Washer90201-174E1-00
Required: 1
WASHER, PLATE
$8.54
You save $0.95
-10%
$9.44
You save $1.05
-10%
$9.44
You save $1.05
-10%
17
Yamaha Motors
Push Plate1W1-16358-01-00
Required: 1
PLATE, PUSH
Supersedes: 30X-16358-00-00
$23.39
You save $2.60
-10%
18
Yamaha Motors
PUSH ROD1W1-16356-02-00
Required: 1
ROD, PUSH 1
Supersedes: 1W1-16356-01-00
$17.09
You save $1.90
-15%
19
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
WASHER
Supersedes: 92900-06200-00
In stock
5+ in stock
$0.85
You save $0.15
-15%
In stock
5+ in stock
$4.17
You save $0.74
-10%
$20.69
You save $2.30
-15%
22
Yamaha Motors
Ball93503-16003-00
Required: 1
BALL
Supersedes: 93503-16010-00
In stock
5+ in stock
$2.46
You save $0.44
-10%
23
Yamaha Motors
PUSH LEVER ASSEMBLY2X3-16380-01-00
Required: 1
PUSH LEVER ASSY
Supersedes: 2X3-16380-00-00
No longer availableSearch Nationwide Inventory
$77.39
You save $8.60
-10%
24
Yamaha Motors
Torsion Spring90508-20345-00
Required: 1
SPRING, TORSION
$9.44
You save $1.05
-10%
25
Yamaha Motors
Plate Washer90201-14217-00
Required: 1
WASHER, PLATE
$10.34
You save $1.15
-10%
26
Yamaha Motors
Tank Cap Gasket90430-08204-00
Required: 1
GASKET
Supersedes: 90430-08069-00
$8.09
You save $0.90
-10%
$15.74
You save $1.75
-10%
28
Yamaha Motors
OIL SEAL,SO-TYPE93104-14059-00
Required: 1
OIL SEAL
Supersedes: 93104-14004-00
$13.04
You save $1.45
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
