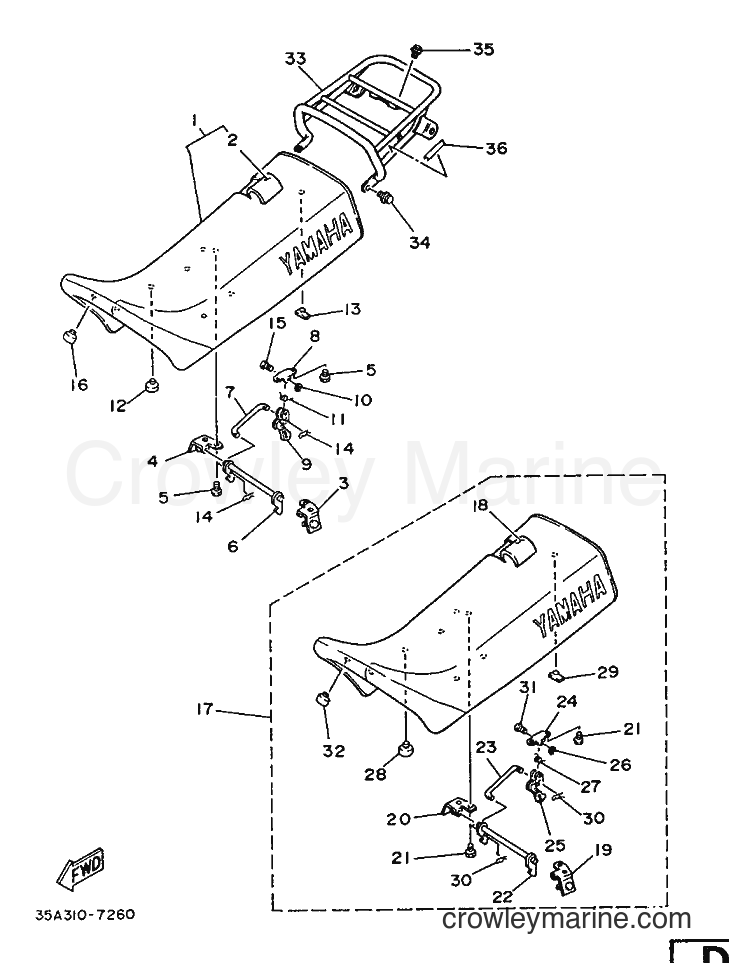

1987 Dirt Bike DT125LC - DT125LC (57U) [999] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors DT125LC (57U) [999] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY34X-W2472-10
Required: 1
DOUBLE SEAT ASSY
Price unavailable
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY34X-W2472-00
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. COVER, SEAT
2
Yamaha Motors
. COVER, SEAT34X-24731-00
Required: 1
. COVER, SEAT
Price unavailable
. COVER, SEAT
2
Yamaha Motors
. COVER, SEAT34X-24731-10
Required: 1
. COVER, SEAT
Price unavailable
BRACKET, SEAT
3
Yamaha Motors
BRACKET, SEAT34X-24738-10
Required: 1
BRACKET, SEAT
Price unavailable
BRACKET, SEAT
4
Yamaha Motors
BRACKET, SEAT34X-24748-10
Required: 1
BRACKET, SEAT
Price unavailable
-10%
BOLT
5
Yamaha Motors
BOLT90101-06304-00
Required: 6
BOLT
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
HOOK, SEAT
6
Yamaha Motors
HOOK, SEAT34X-24754-00
Required: 1
HOOK, SEAT
Price unavailable
PIN
7
Yamaha Motors
PIN34X-24774-00
Required: 1
PIN
Price unavailable
BRACKET, SEAT
8
Yamaha Motors
BRACKET, SEAT10V-24728-01
Required: 1
BRACKET, SEAT
Price unavailable
LEVER, SEAT
9
Yamaha Motors
LEVER, SEAT10V-24776-01
Required: 1
LEVER, SEAT
Price unavailable
SPRING, TORSION
11
Yamaha Motors
SPRING, TORSION90508-23565
Required: 1
SPRING, TORSION
Price unavailable
-10%
Seat Damper
13
Yamaha Motors
Seat Damper509-24724-00-00
Required: 1
DAMPER, SEAT
Cross Ship
Leaves in 2-5 days
$11.99
$10.79
You save $1.20
More details
-10%
Clip
14
Yamaha Motors
Clip90468-10050-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$3.05
$2.75
You save $0.30
More details
PIN
15
Yamaha Motors
PIN10V-24784-00
Required: 1
PIN
Price unavailable
-10%
SEAT PAD
16
Yamaha Motors
SEAT PAD22W-24741-00-00
Required: 2
PAD, SEAT
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
DOUBLE SEAT ASSY
17
Yamaha Motors
DOUBLE SEAT ASSY57U-24730-00
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. COVER, SEAT
18
Yamaha Motors
. COVER, SEAT57U-24731-00
Required: 1
. COVER, SEAT
Price unavailable
. BRACKET, SEAT
19
Yamaha Motors
. BRACKET, SEAT34X-24738-10
Required: 1
. BRACKET, SEAT
Price unavailable
. BRACKET, SEAT
20
Yamaha Motors
. BRACKET, SEAT34X-24748-10
Required: 1
. BRACKET, SEAT
Price unavailable
-10%
BOLT
21
Yamaha Motors
BOLT90101-06304-00
Required: 6
. BOLT
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
. HOOK, SEAT
22
Yamaha Motors
. HOOK, SEAT34X-24754-00
Required: 1
. HOOK, SEAT
Price unavailable
. PIN
23
Yamaha Motors
. PIN34X-24774-00
Required: 1
. PIN
Price unavailable
. BRACKET, SEAT
24
Yamaha Motors
. BRACKET, SEAT10V-24728-01
Required: 1
. BRACKET, SEAT
Price unavailable
. LEVER, SEAT
25
Yamaha Motors
. LEVER, SEAT10V-24776-01
Required: 1
. LEVER, SEAT
Price unavailable
. SPRING, TENSION
27
Yamaha Motors
. SPRING, TENSION90506-23465
Required: 1
. SPRING, TENSION
Price unavailable
-10%
Seat Damper
29
Yamaha Motors
Seat Damper509-24724-00-00
Required: 1
. DAMPER, SEAT
Cross Ship
Leaves in 2-5 days
$11.99
$10.79
You save $1.20
More details
-10%
Clip
30
Yamaha Motors
Clip90468-10050-00
Required: 2
. CLIP
Cross Ship
Leaves in 2-5 days
$3.05
$2.75
You save $0.30
More details
. PIN
31
Yamaha Motors
. PIN10V-24784-00
Required: 1
. PIN
Price unavailable
-10%
SEAT PAD
32
Yamaha Motors
SEAT PAD22W-24741-00-00
Required: 2
. PAD, SEAT
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
SUB CARRIER ASSY
33
Yamaha Motors
SUB CARRIER ASSY34Y-24830-00
Required: 1
SUB CARRIER ASSY
Price unavailable
LABEL, CAUTION
36
Yamaha Motors
LABEL, CAUTION55V-24877-00
Required: 1
LABEL, CAUTION
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
