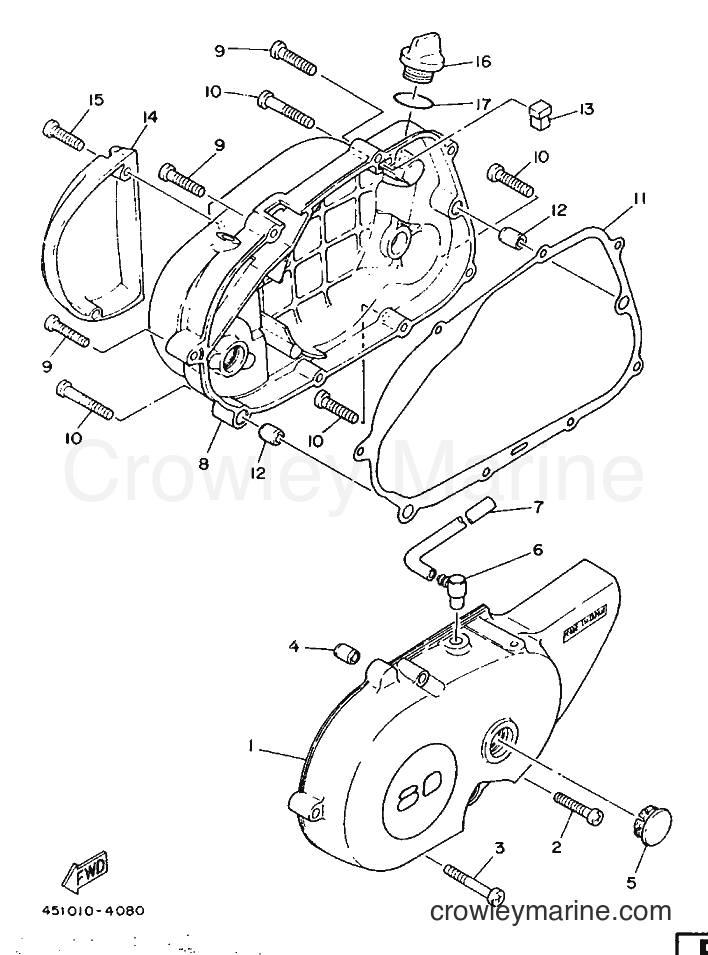

1987 Dirt Bike TY80B (SUPPLEMENT - - TY80B (SUPPLEMENT - (451) [999] CRANKCASE COVER 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TY80B (SUPPLEMENT - (451) [999] - CRANKCASE COVER 1
Change View:
-10%
Pan Head Screw
3
Yamaha Motors
Pan Head Screw98580-06545-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92503-06045-00
Cross Ship
Backordered
$6.49
$5.84
You save $0.65
More details
-10%
BREATHER ASSEMBLY
6
Yamaha Motors
BREATHER ASSEMBLY583-15371-00-00
Required: 1
BREATHER
Supersedes: 498-15371-00-00
Cross Ship
Leaves in 2-5 days
$7.49
$6.74
You save $0.75
More details
-10%
CRANKCASE COVER GASKET
11
Yamaha Motors
CRANKCASE COVER GASKET3MT-15451-00-00
Required: 1
GASKET, CRANKCASE COVER 1
Supersedes: 353-15451-00-00
Cross Ship
Leaves in 2-5 days
$28.99
$26.09
You save $2.90
More details
-10%
O-Ring
17
Yamaha Motors
O-Ring93210-21190-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
