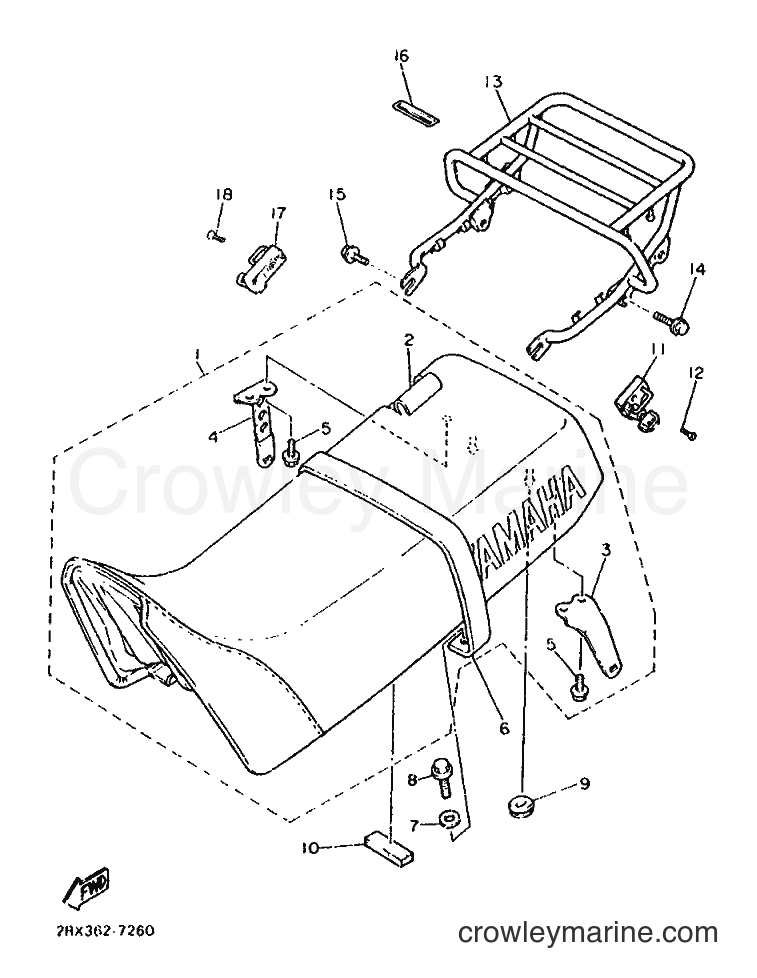

1987 Dirt Bike XT500Z - XT500Z (2RX) [999] SEAT & CARRIER diagram
![Yamaha Motors XT500Z (2RX) [999] - SEAT & CARRIER](https://cdn.crowleymarine.com/yamaha/jnIDIvu7.png)
1
Yamaha Motors
SEMI-DOUBLE SEAT ASSY1VJ-24770-20
Required: 1
SEMI-DOUBLE SEAT ASSY
Price unavailable
1
Yamaha Motors
SEMI-DOUBLE SEAT ASSY1VJ-24770-30
Required: 1
SEMI-DOUBLE SEAT ASSY
Price unavailable
2
Yamaha Motors
. COVER, SEAT1VJ-24731-10
Required: 1
. COVER, SEAT
Price unavailable
2
Yamaha Motors
. COVER, SEAT1VJ-24731-00
Required: 1
. COVER, SEAT
Price unavailable
3
Yamaha Motors
. BRACKET, SEAT1VJ-24738-00
Required: 1
. BRACKET, SEAT
Price unavailable
4
Yamaha Motors
. BRACKET, SEAT1VJ-24748-00
Required: 1
. BRACKET, SEAT
Price unavailable
-10%
5
Yamaha Motors
Flange Bolt95024-06012-00
Required: 2
. BOLT, FLANGE
Supersedes: 95023-06012-00
$4.28
You save $0.47
6
Yamaha Motors
BAND, SEAT1VJ-24734-00
Required: 1
BAND, SEAT
Price unavailable
6
Yamaha Motors
BAND, SEAT1VJ-24734-10
Required: 1
BAND, SEAT
Price unavailable
7
Yamaha Motors
WASHER, PLATE90201-06022
Required: 2
WASHER, PLATE
Price unavailable
8
Yamaha Motors
BOLT, FLANGE95021-06015
Required: 2
BOLT, FLANGE
Price unavailable
9
Yamaha Motors
GROMMET90480-01451
Required: 2
GROMMET
Price unavailable
-10%
10
Yamaha Motors
Damper34M-21639-00-00
Required: 1
DAMPER, SEAT
Supersedes: 1VJ-24723-00-00
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
11
Yamaha Motors
HELMET HANGER ASSEMBLY5A8-21308-00-00
Required: 1
HELMET HANGER ASSY
No longer availableSearch Nationwide Inventory
$95.39
You save $10.60
-10%
12
Yamaha Motors
98707-06025-0098706-06025-00
Required: 1
SCREW, FLAT HEAD
Supersedes: 92706-06025-00
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
13
Yamaha Motors
SUB CARRIER ASSY1VJ-24830-00
Required: 1
SUB CARRIER ASSY
Price unavailable
14
Yamaha Motors
BOLT, FLANGE91026-08020
Required: 2
BOLT, FLANGE
Price unavailable
-10%
15
Yamaha Motors
Flange Bolt95816-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 91026-06012-00
No longer availableSearch Nationwide Inventory
$1.26
You save $0.14
16
Yamaha Motors
LABEL, CAUTION55V-24877-00
Required: 1
LABEL, CAUTION
Price unavailable
17
Yamaha Motors
SEAT LOCK ASSY1VJ-24780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
-10%
18
Yamaha Motors
98707-06025-0098706-06025-00
Required: 1
SCREW, FLAT HEAD
Supersedes: 92706-06025-00
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
