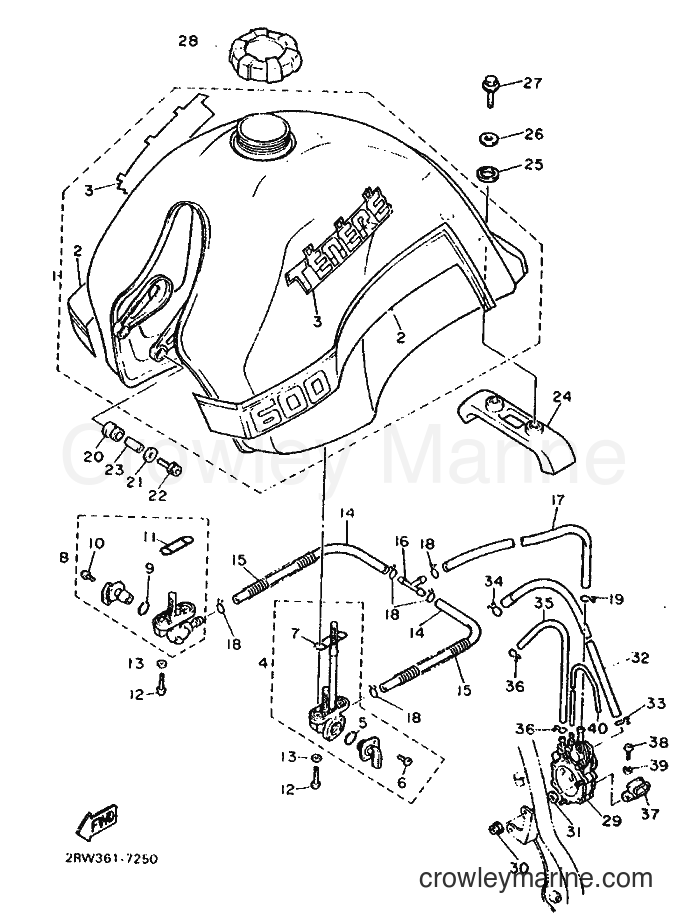

1987 Dirt Bike XT600Z - XT600Z (2RW) [999] FUEL TANK diagram
![Yamaha Motors XT600Z (2RW) [999] - FUEL TANK](https://cdn.crowleymarine.com/yamaha/XUIuJPXU.png)
1
Yamaha Motors
FUEL TANK COMP.1VJ-24110-00-01
Required: 1
FUEL TANK COMP.
Price unavailable
1
Yamaha Motors
PIPE, FUEL 11VJ-24311-00
Required: 1
PIPE, FUEL 1
Price unavailable
2
Yamaha Motors
. GRAPHIC SET1VJ-24240-00
Required: 1
. GRAPHIC SET
Price unavailable
2
Yamaha Motors
. GRAPHIC SET1VJ-24240-10
Required: 1
. GRAPHIC SET
Price unavailable
3
Yamaha Motors
. EMBLEM 11VJ-24161-10
Required: 2
. EMBLEM 1
Price unavailable
3
Yamaha Motors
. EMBLEM 11VJ-24161-00
Required: 2
. EMBLEM 1
Price unavailable
4
Yamaha Motors
FUEL COCK ASSY 11VJ-24500-00
Required: 1
FUEL COCK ASSY 1
Price unavailable
-50%
In stock
Only 1 remaining
$7.24
You save $7.24
-10%
6
Yamaha Motors
Pan Head Screw98580-03008-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 97801-03008-00
$3.46
You save $0.38
-10%
$8.54
You save $0.95
8
Yamaha Motors
FUEL COCK ASSY 11VJ-24500-10
Required: 1
FUEL COCK ASSY 1
Price unavailable
-50%
In stock
Only 1 remaining
$7.24
You save $7.24
10
Yamaha Motors
. SCREW, PAN HEAD97801-06011
Required: 2
. SCREW, PAN HEAD
Price unavailable
-10%
$8.54
You save $0.95
-20%
13
Yamaha Motors
Plate Washer90202-05187-00
Required: 4
WASHER, PLATE
Supersedes: 90202-06010-00
In stock
Only 4 remaining
$1.36
You save $0.34
-10%
No longer availableSearch Nationwide Inventory
$1.65
You save $0.18
-10%
15
Yamaha Motors
Compression Spring90501-101J5-00
Required: 2
SPRING, COMPRESSION
Supersedes: 90501-08486-00
No longer availableSearch Nationwide Inventory
$19.79
You save $2.20
-10%
$13.94
You save $1.55
-10%
No longer availableSearch Nationwide Inventory
$9.44
You save $1.05
-10%
18
Yamaha Motors
Clip90467-100A1-00
Required: 5
CLIP
Supersedes: 90467-10008-00
$7.64
You save $0.85
-10%
$10.34
You save $1.15
-10%
20
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-18549-00
Required: 2
GROMMET
Supersedes: 90480-18354-00
$10.34
You save $1.15
-10%
21
Yamaha Motors
Plain Washer90201-06020-00
Required: 2
WASHER, PLATE
Supersedes: 90201-065F3-00
In stock
Only 1 remaining
$9.44
You save $1.05
-20%
22
Yamaha Motors
HEX SOCKET HEAD BOLT90110-06138-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
In stock
Only 1 remaining
$5.19
You save $1.30
-10%
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
24
Yamaha Motors
DAMPER, LOCATING 21VJ-24182-00
Required: 1
DAMPER, LOCATING 2
Price unavailable
25
Yamaha Motors
DAMPER, LOCATING 334L-24183-00
Required: 2
DAMPER, LOCATING 3
Price unavailable
-10%
26
Yamaha Motors
Plate Washer90201-065G8-00
Required: 2
WASHER, PLATE
$8.54
You save $0.95
-15%
27
Yamaha Motors
Flange Bolt95817-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 95801-06012-00
In stock
Only 2 remaining
$1.66
You save $0.29
-10%
No longer availableSearch Nationwide Inventory
$38.69
You save $4.30
29
Yamaha Motors
FUEL PUMP ASSY1VJ-13910-00
Required: 1
FUEL PUMP ASSY
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$2.48
You save $0.27
-10%
31
Yamaha Motors
Plate Washer90201-05029-00
Required: 2
WASHER, PLATE
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$9.59
You save $1.06
-10%
$10.34
You save $1.15
-10%
$8.54
You save $0.95
-10%
35
Yamaha Motors
Hose90445-10490-00
Required: 1
HOSE
Supersedes: 90445-10638-00
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
36
Yamaha Motors
Clip90467-090A2-00
Required: 2
CLIP
Supersedes: 90467-09006-00
$4.28
You save $0.47
-10%
$5.84
You save $0.65
-10%
38
Yamaha Motors
PAN SCREW98507-06100-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92501-06100-00
$8.54
You save $0.95
-15%
39
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
$8.54
You save $0.95
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
