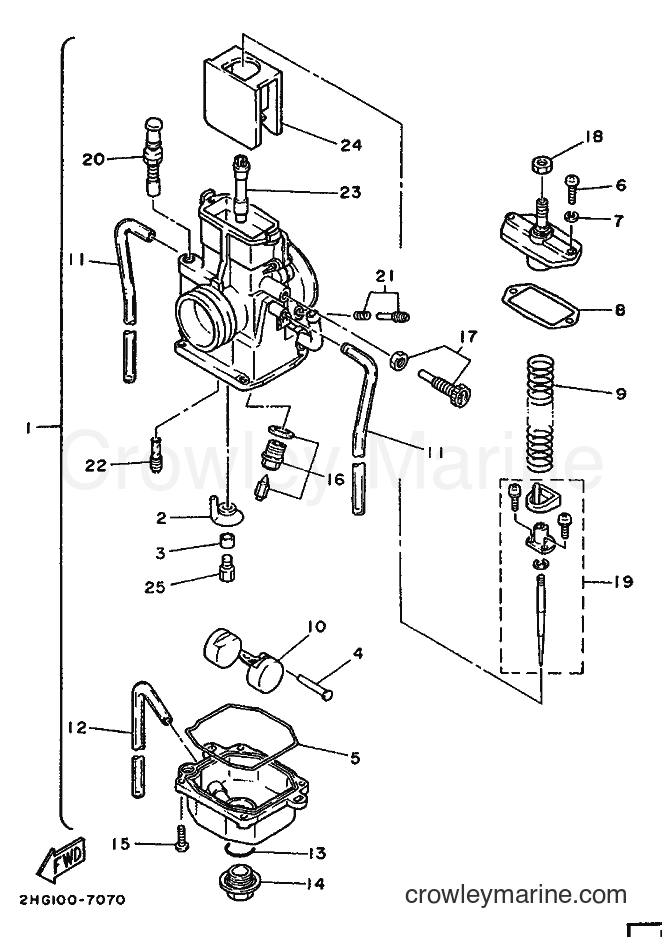

1987 Dirt Bike YZ125 - YZ125 (2HG) [999] CARBURETOR diagram
![Yamaha Motors YZ125 (2HG) [999] - CARBURETOR](https://cdn.crowleymarine.com/yamaha/9rrx1V6J.png)
1
Yamaha Motors
CARBURETOR ASSY 12HG-14101-10
Required: 1
CARBURETOR ASSY 1
Price unavailable
-10%
2
Yamaha Motors
Main Jet Washer1LX-14153-10-00
Required: 1
. WASHER, MAIN JET
No longer availableSearch Nationwide Inventory
$6.39
You save $0.71
-10%
3
Yamaha Motors
NEEDLE JET SETTER509-14145-00-00
Required: 1
. SETTER, NEEDLE JET
No longer availableSearch Nationwide Inventory
$16.19
You save $1.80
-50%
In stock
Only 1 remaining
$4.25
You save $4.25
-10%
No longer availableSearch Nationwide Inventory
$17.09
You save $1.90
-10%
6
Yamaha Motors
98580-04014-0098504-04014-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98503-04014-00
No longer availableSearch Nationwide Inventory
$1.80
You save $0.20
7
Yamaha Motors
WASHER92903-04100-00
Required: 2
. WASHER, SPRING
Supersedes: 92902-04100-00
No longer availableSearch Nationwide Inventory
$1.43
-10%
No longer availableSearch Nationwide Inventory
$15.29
You save $1.70
-10%
9
Yamaha Motors
THROTTLE VALVE SPRING1LK-14131-00-00
Required: 1
. SPRING, THROTTLE VALVE
Supersedes: 1LX-14131-00-00
No longer availableSearch Nationwide Inventory
$19.79
You save $2.20
-10%
No longer availableSearch Nationwide Inventory
$35.09
You save $3.90
-10%
11
Yamaha Motors
Air Vent Pipe510-14197-00-00
Required: 2
. PIPE
Supersedes: 432-14197-00-00
No longer availableSearch Nationwide Inventory
$7.19
You save $0.80
-10%
No longer availableSearch Nationwide Inventory
$8.09
You save $0.90
-10%
$9.89
You save $1.10
-10%
14
Yamaha Motors
Screw Plug500-14115-00-00
Required: 1
. PLUG, SCREW
$29.69
You save $3.30
-10%
15
Yamaha Motors
Pan Head Screw98511-04012-00
Required: 4
. SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$1.89
You save $0.21
-10%
16
Yamaha Motors
Needle Valve Set24X-14107-33-00
Required: 1
. NEEDLE VALVE SET
$50.39
You save $5.60
-10%
17
Yamaha Motors
THROTTLE SCREW SET40T-14103-00-00
Required: 1
. THROTTLE SCREW SET
$17.09
You save $1.90
-10%
18
Yamaha Motors
CABLE ADJUSTMENT NUT802-14161-00-00
Required: 1
. NUT, CABLE ADJUSTING
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$15.29
You save $1.70
-10%
20
Yamaha Motors
Starter Set24X-1410A-00-00
Required: 1
. STARTER SET
No longer availableSearch Nationwide Inventory
$98.99
You save $11.00
-10%
21
Yamaha Motors
Air Screw Kit1LX-14104-00-00
Required: 1
. AIR SCREW SET
No longer availableSearch Nationwide Inventory
$3.65
You save $0.40
-10%
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
-10%
No longer availableSearch Nationwide Inventory
$4.50
You save $0.50
-10%
No longer availableSearch Nationwide Inventory
$4.09
You save $0.46
-10%
No longer availableSearch Nationwide Inventory
$29.69
You save $3.30
-10%
23
Yamaha Motors
MAIN NOZZLE1LX-14141-52-00
Required: 1
. NOZZLE, MAIN
No longer availableSearch Nationwide Inventory
$22.81
You save $2.53
-10%
23
Yamaha Motors
Main Nozzle1LX-14141-54-00
Required: 1
. NOZZLE, MAIN
No longer availableSearch Nationwide Inventory
$29.69
You save $3.30
-10%
24
Yamaha Motors
VALVE,THROTTLE 2.51LX-14112-25-00
Required: 1
. VALVE, THROTTLE 1
No longer availableSearch Nationwide Inventory
$81.84
You save $9.09
-10%
24
Yamaha Motors
VALVE,THROTTLE 3.51LX-14112-35-00
Required: 1
. VALVE, THROTTLE 1
No longer availableSearch Nationwide Inventory
$88.19
You save $9.80
-10%
24
Yamaha Motors
VALVE,THROTTLE 3.01LX-14112-30-00
Required: 1
. VALVE, THROTTLE 1
No longer availableSearch Nationwide Inventory
$94.49
You save $10.50
-10%
$11.69
You save $1.30
-10%
$11.69
You save $1.30
-10%
25
Yamaha Motors
MAIN JET #310137-14143-62-A1
Required: 1
. JET, MAIN
Supersedes: 137-14143-62-00
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
25
Yamaha Motors
. JET, MAIN137-14143-53
Required: 1
. JET, MAIN
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
