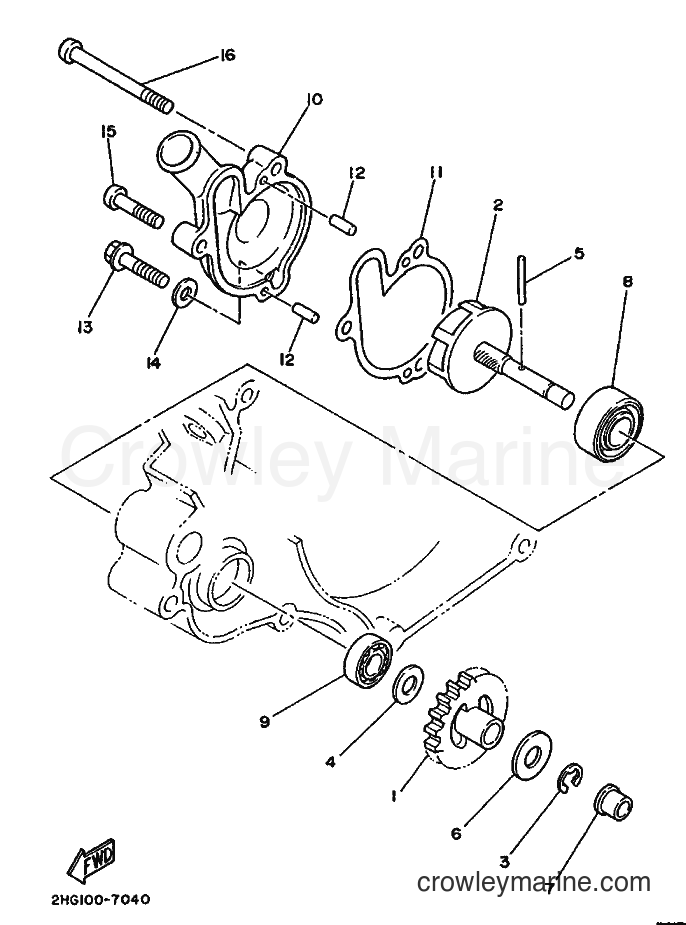

1987 Dirt Bike YZ125 - YZ125 (2HG) [999] WATER PUMP diagram
![Yamaha Motors YZ125 (2HG) [999] - WATER PUMP](https://cdn.crowleymarine.com/yamaha/G7PJWZBA.png)
-10%
1
Yamaha Motors
GEAR,IMPELLER SHAFT4SS-12459-00-00
Required: 1
GEAR, IMPELLER SHAFT
Supersedes: 1LX-12459-00-00
No longer availableSearch Nationwide Inventory
$49.49
You save $5.50
-10%
2
Yamaha Motors
IMPELLER SHAFT ASSEMBLY1LX-12450-01-00
Required: 1
IMPELLER SHAFT ASSY
Supersedes: 1LX-12450-00-00
$83.69
You save $9.30
-20%
3
Yamaha Motors
Clip99080-07600-00
Required: 1
CIRCLIP
Supersedes: 99001-07600-00
In stock
Only 3 remaining
$2.92
You save $0.73
-50%
4
Yamaha Motors
Plate Washer90201-08512-00
Required: 1
WASHER, PLATE
In stock
Only 1 remaining
$4.75
You save $4.75
-10%
$3.65
You save $0.40
-10%
6
Yamaha Motors
Plate Washer90201-08784-00
Required: 1
WASHER, PLATE
$3.15
You save $0.35
-10%
$11.24
You save $1.25
-10%
8
Yamaha Motors
SW-TYPE OIL SEAL93103-10168-00
Required: 1
OIL SEAL
Supersedes: 93103-10147-00
No longer availableSearch Nationwide Inventory
$26.09
You save $2.90
9
Yamaha Motors
BEARING93330-50814
Required: 1
BEARING
Price unavailable
-10%
10
Yamaha Motors
Housing Cover1LX-12422-01-00
Required: 1
COVER, HOUSING
Supersedes: 1LX-12422-00-00
No longer availableSearch Nationwide Inventory
$71.99
You save $8.00
-10%
11
Yamaha Motors
1LX-12428-01-001LX-12428-00-00
Required: 1
GASKET, HOUSING COVER 2
No longer availableSearch Nationwide Inventory
$8.09
You save $0.90
-10%
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$1.48
You save $0.17
-50%
In stock
Only 1 remaining
$2.02
You save $2.02
-10%
15
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92506-06025-00
$3.65
You save $0.40
-10%
16
Yamaha Motors
98507-06060-0098506-06060-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92506-06060-00
No longer availableSearch Nationwide Inventory
$1.57
You save $0.18
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
