1987 Dirt Bike YZ250 - YZ250 (2HH) [999] STAND & FOOTREST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

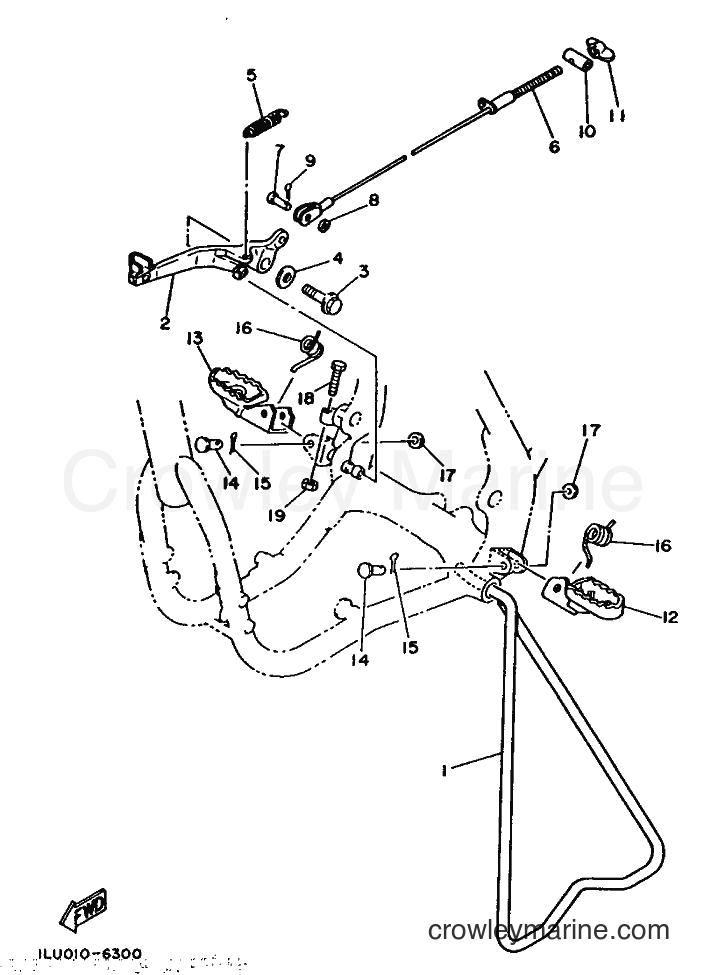

Yamaha Motors YZ250 (2HH) [999] - STAND & FOOTREST
Change View:
-10%
Flange Bolt (3JPE)
3
Yamaha Motors
Flange Bolt (3JPE)95024-08016-00
Required: 1
BOLT, FLANGE
Supersedes: 95023-08016-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Plate Washer
4
Yamaha Motors
Plate Washer90201-087F0-00
Required: 1
WASHER, PLATE
Supersedes: 90201-08730-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
TENSION SPRING
5
Yamaha Motors
TENSION SPRING90506-16372-00
Required: 1
SPRING, TENSION
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
CLEVIS PIN
14
Yamaha Motors
CLEVIS PIN90240-10117-00
Required: 2
PIN, CLEVIS
Cross Ship
Leaves in 2-5 days
$16.49
$14.84
You save $1.65
More details
-10%
Torsion Spring
16
Yamaha Motors
Torsion Spring90508-20583-00
Required: 2
SPRING, TORSION
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
