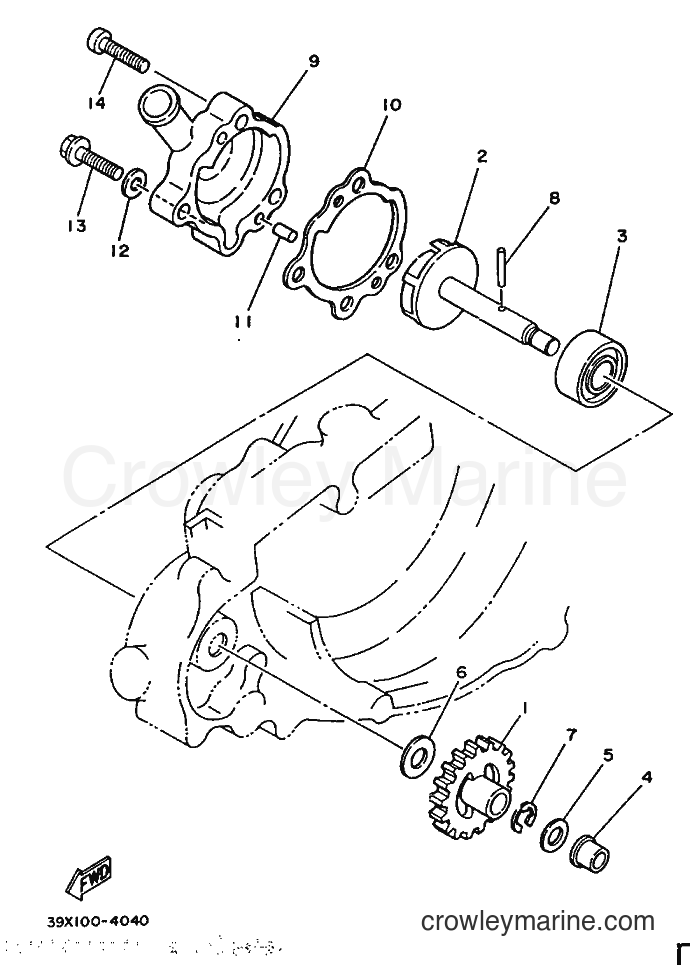

1987 Dirt Bike YZ250 - YZ250 (2HH) [999] WATER PUMP diagram
![Yamaha Motors YZ250 (2HH) [999] - WATER PUMP](https://cdn.crowleymarine.com/yamaha/T5molERW.png)
-10%
1
Yamaha Motors
GEAR,IMPELLER SHAFT2HH-12459-00-00
Required: 1
GEAR, IMPELLER SHAFT
No longer availableSearch Nationwide Inventory
$22.49
You save $2.50
-10%
2
Yamaha Motors
Impeller Shaft Assembly39X-12450-00-00
Required: 1
IMPELLER SHAFT ASSY
$64.79
You save $7.20
-10%
3
Yamaha Motors
SW-TYPE OIL SEAL93103-10168-00
Required: 1
OIL SEAL
Supersedes: 93103-10147-00
No longer availableSearch Nationwide Inventory
$26.09
You save $2.90
-10%
$11.24
You save $1.25
-50%
5
Yamaha Motors
Plate Washer90201-08512-00
Required: 1
WASHER, PLATE
In stock
Only 1 remaining
$4.75
You save $4.75
-10%
6
Yamaha Motors
Plate Washer90201-106M5-00
Required: 1
WASHER, PLATE
Supersedes: 90201-105H9-00
$10.34
You save $1.15
-20%
7
Yamaha Motors
Clip99080-07600-00
Required: 1
CIRCLIP
Supersedes: 99001-07600-00
In stock
Only 3 remaining
$2.92
You save $0.73
-10%
$3.65
You save $0.40
-10%
9
Yamaha Motors
Housing Cover39X-12422-00-00
Required: 1
COVER, HOUSING
No longer availableSearch Nationwide Inventory
$34.19
You save $3.80
-10%
10
Yamaha Motors
Housing Cover Gasket5X5-12428-01-00
Required: 1
GASKET, HOUSING COVER 2
Supersedes: 5X5-12428-00-00
No longer availableSearch Nationwide Inventory
$4.28
You save $0.47
-10%
$7.64
You save $0.85
-50%
In stock
Only 1 remaining
$2.02
You save $2.02
-10%
No longer availableSearch Nationwide Inventory
$1.48
You save $0.17
-10%
14
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 3
SCREW, PAN HEAD
Supersedes: 92506-06025-00
$3.65
You save $0.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
