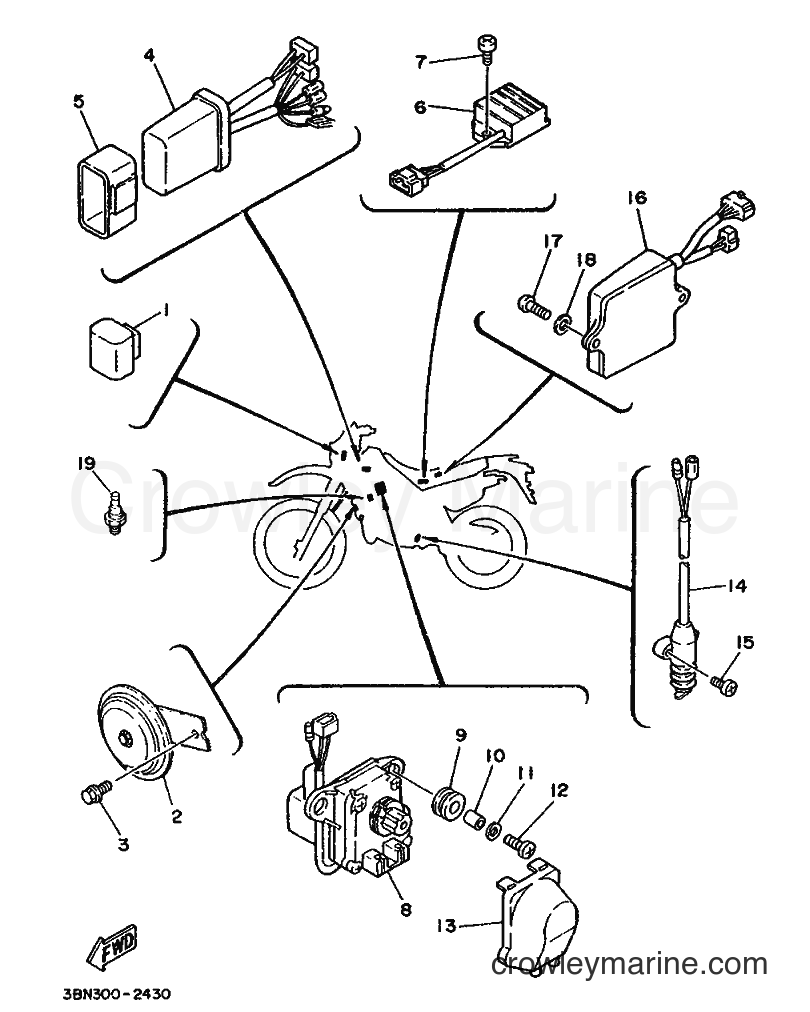

1988 Dirt Bike DT125R - DT125R (3BN1) [999] ELECTRICAL 2 diagram
![Yamaha Motors DT125R (3BN1) [999] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/R0iE3C5p.png)
-10%
1
Yamaha Motors
Flasher Relay Assembly34L-83350-20-00
Required: 1
FLASHER RELAY ASSY
No longer availableSearch Nationwide Inventory
$25.78
You save $2.86
-10%
2
Yamaha Motors
Horn2KG-83371-00-00
Required: 1
HORN
Supersedes: 3BN-83371-00-00
$84.59
You save $9.40
-10%
3
Yamaha Motors
Flange Bolt95816-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 91006-06012-00
No longer availableSearch Nationwide Inventory
$1.26
You save $0.14
4
Yamaha Motors
C.D.I. UNIT ASSY3BN-85540-00
Required: 1
C.D.I. UNIT ASSY
Price unavailable
5
Yamaha Motors
BAND3BN-85546-00
Required: 1
BAND
Price unavailable
6
Yamaha Motors
RECTIFIER & REGULATOR ASSY3BN-81960-00
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
-10%
7
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06012-00
$3.69
You save $0.41
8
Yamaha Motors
SERVO MOTOR ASSY3BN-85820-00
Required: 1
SERVO MOTOR ASSY
Price unavailable
-10%
$7.64
You save $0.85
-50%
In stock
Only 1 remaining
$5.25
You save $5.25
-10%
11
Yamaha Motors
Plate Washer90201-06380-00
Required: 2
WASHER, PLATE
Supersedes: 90201-06067-00
$0.59
You save $0.06
-10%
12
Yamaha Motors
Pan Head Screw98511-06025-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06025-00
No longer availableSearch Nationwide Inventory
$1.94
You save $0.21
-10%
13
Yamaha Motors
Wire Cover34X-85825-01-00
Required: 1
COVER, WIRE
Supersedes: 34X-85825-00-00
No longer availableSearch Nationwide Inventory
$14.84
You save $1.65
-10%
14
Yamaha Motors
SIDE STAND SWITCH5Y1-82566-00-00
Required: 1
SWITCH, SIDE STAND
$129.59
You save $14.40
-10%
15
Yamaha Motors
Flat Screw98707-05016-00
Required: 2
SCREW, COUNTERSUNK
Supersedes: 90152-05021-00
$7.19
You save $0.80
-10%
16
Yamaha Motors
Control Unit Assembly4Y3-85590-M0-00
Required: 1
CONTROL UNIT ASSY
No longer availableSearch Nationwide Inventory
$84.13
You save $9.35
-15%
17
Yamaha Motors
Pan Head Screw98580-06020-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92501-06020-00
In stock
Only 1 remaining
$8.07
You save $1.42
-15%
18
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
-10%
$103.49
You save $11.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
