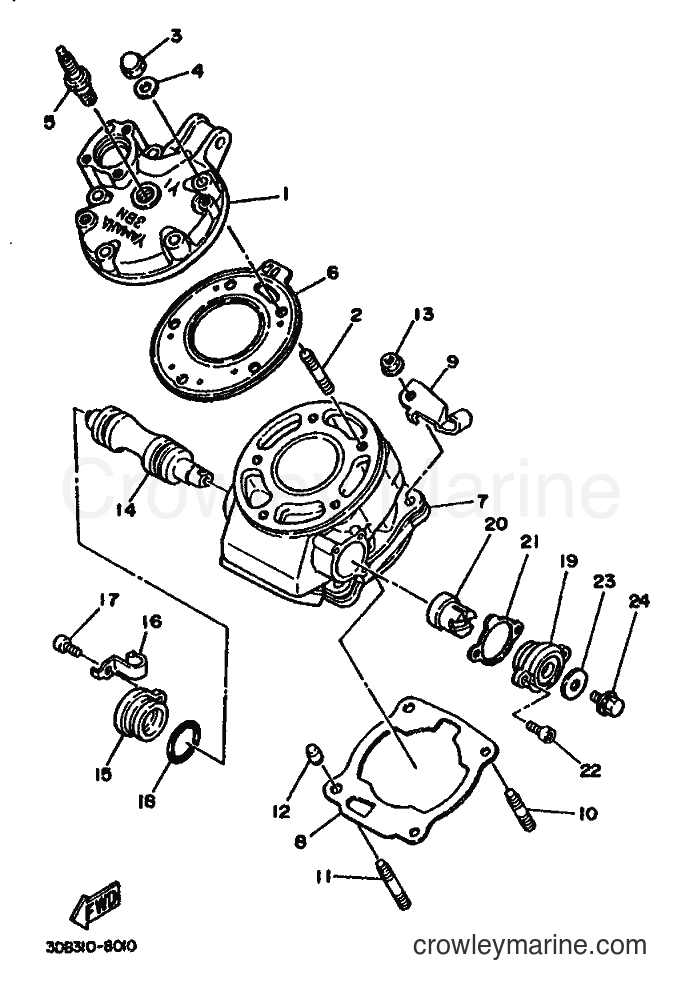

1988 Dirt Bike DT125R - DT125R (3DB1) [999] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors DT125R (3DB1) [999] - CYLINDER
Change View:
HEAD, CYLINDER 1
1
Yamaha Motors
HEAD, CYLINDER 13BN-11111-00
Required: 1
HEAD, CYLINDER 1
Price unavailable
-10%
Stud Bolt
2
Yamaha Motors
Stud Bolt90116-08394-00
Required: 5
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
-10%
Crown Nut
3
Yamaha Motors
Crown Nut90176-08040-00
Required: 5
NUT, CROWN
Cross Ship
Leaves in 2-5 days
$4.85
$4.37
You save $0.49
More details
-10%
Plate Washer
4
Yamaha Motors
Plate Washer90201-08649-00
Required: 5
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
PLUG, SPARK
5
Yamaha Motors
PLUG, SPARK94701-00188
Required: 1
PLUG, SPARK
Price unavailable
GASKET, CYLINDER HEAD 1
6
Yamaha Motors
GASKET, CYLINDER HEAD 13BN-11181-20
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
CYLINDER 1
7
Yamaha Motors
CYLINDER 13BN-11311-00
Required: 1
CYLINDER 1
Price unavailable
GASKET, CYLINDER
8
Yamaha Motors
GASKET, CYLINDER3BN-11351-00
Required: 1
GASKET, CYLINDER
Price unavailable
HOLDER, CLUTCH CABLE
9
Yamaha Motors
HOLDER, CLUTCH CABLE3BN-15441-00
Required: 1
HOLDER, CLUTCH CABLE
Price unavailable
-10%
Stud Bolt
10
Yamaha Motors
Stud Bolt90116-08318-00
Required: 2
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Stud Bolt
11
Yamaha Motors
Stud Bolt90116-08388-00
Required: 2
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Nut
13
Yamaha Motors
Nut90179-08491-00
Required: 4
NUT
Cross Ship
Leaves in 2-5 days
$2.80
$2.52
You save $0.28
More details
VALVE 1
14
Yamaha Motors
VALVE 13BN-1131A-00
Required: 1
VALVE 1
Price unavailable
HOLDER 1
15
Yamaha Motors
HOLDER 13BN-1131E-00
Required: 1
HOLDER 1
Price unavailable
CLAMP
16
Yamaha Motors
CLAMP90462-08174
Required: 11
CLAMP
Price unavailable
-10%
BOLT
17
Yamaha Motors
BOLT91317-05012-00
Required: 1
BOLT
Supersedes: 91316-05012-00
Cross Ship
Leaves in 2-5 days
$2.75
$2.48
You save $0.27
More details
-10%
O-Ring
18
Yamaha Motors
O-Ring93210-30734-00
Required: 1
O-RING
Supersedes: 93210-30640-00
Cross Ship
Leaves in 2-5 days
$16.49
$14.84
You save $1.65
More details
HOLDER 3
19
Yamaha Motors
HOLDER 33DB-1131U-00
Required: 1
HOLDER 3
Price unavailable
HOLDER 2
20
Yamaha Motors
HOLDER 23DB-1131F-00
Required: 1
HOLDER 2
Price unavailable
GASKET, HOLDER
21
Yamaha Motors
GASKET, HOLDER2RK-1131N-00
Required: 1
GASKET, HOLDER
Price unavailable
GASKET, HOLDER
22
Yamaha Motors
GASKET, HOLDER2RK-1131N-00
Required: 1
GASKET, HOLDER
Price unavailable
-10%
Plain Washer
23
Yamaha Motors
Plain Washer90201-06086-00
Required: 1
WASHER, PLATE
Supersedes: 90201-060A3-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Bolt With Washer
24
Yamaha Motors
Bolt With Washer90119-06063-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06061-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
