1988 Dirt Bike DT200U - DT200U (40R0) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

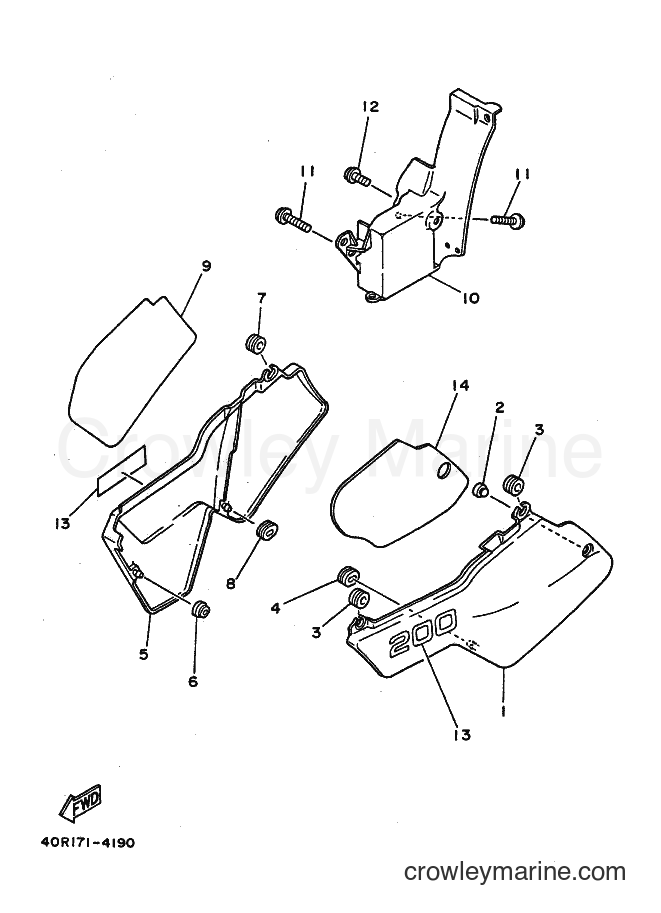

Yamaha Motors DT200U (40R0) [010] - SIDE COVER
Change View:
COVER, side 1
1
Yamaha Motors
COVER, side 134X-21711-00-98
Required: 1
COVER, side 1
Price unavailable
-10%
Locating Damper
2
Yamaha Motors
Locating Damper22W-24181-00-00
Required: 1
DAMPER, locating 1
Cross Ship
Leaves in 2-5 days
$7.49
$6.74
You save $0.75
More details
-10%
GROMMET, WATER TUBE (UPPER)
3
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-12325-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
GROMMET
4
Yamaha Motors
GROMMET90480-01141
Required: 1
GROMMET
Price unavailable
COVER, side 2
5
Yamaha Motors
COVER, side 234X-21721-00-98
Required: 1
COVER, side 2
Price unavailable
GROMMET
6
Yamaha Motors
GROMMET90480-13197
Required: 1
GROMMET
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
7
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-12325-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
GROMMET
8
Yamaha Motors
GROMMET90480-01141
Required: 1
GROMMET
Price unavailable
EMBLEM 4
9
Yamaha Motors
EMBLEM 434X-21784-00
Required: 1
EMBLEM 4
Price unavailable
BOX
10
Yamaha Motors
BOX34X-2177A-00
Required: 1
BOX
Price unavailable
-10%
Bolt with Washer
11
Yamaha Motors
Bolt with Washer90119-06152-00
Required: 3
BOLT, with washer
Supersedes: 90119-06056-00
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details
-10%
Screw with Washer
12
Yamaha Motors
Screw with Washer90159-06060-00
Required: 1
SCREW, with washer
Supersedes: 90159-06033-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
EMBLEM 1
13
Yamaha Motors
EMBLEM 140R-21781-00
Required: 2
EMBLEM 1
Price unavailable
INSULATOR, side cover
14
Yamaha Motors
INSULATOR, side cover34X-2174A-00
Required: 1
INSULATOR, side cover
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
