1988 Dirt Bike DT200U - DT200U (40R0) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

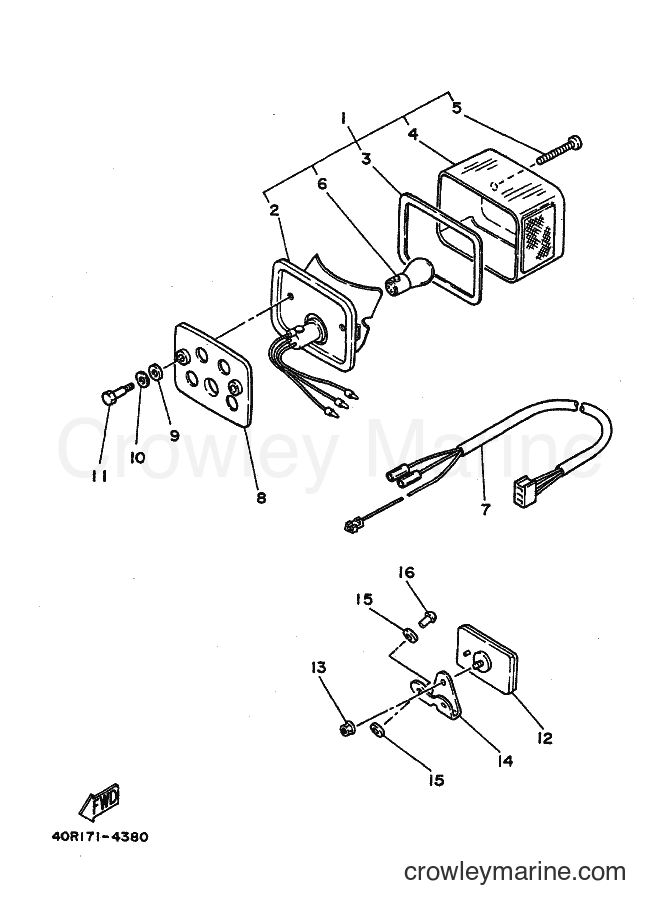

Yamaha Motors DT200U (40R0) [010] - TAILLIGHT
Change View:
-10%
TAILLIGHT UNIT ASSEMBLY
1
Yamaha Motors
TAILLIGHT UNIT ASSEMBLY1W9-84710-61-00
Required: 1
TAILLIGHT UNIT ASSY
Supersedes: 1W9-84710-60-00
Cross Ship
Leaves in 2-5 days
$119.99
$107.99
You save $12.00
More details
-10%
Lens Gasket
3
Yamaha Motors
Lens Gasket1M1-84523-60-00
Required: 1
.GASKET, lens
Cross Ship
Leaves in 2-5 days
$14.49
$13.04
You save $1.45
More details
-10%
TAIL LIGHT LENS
4
Yamaha Motors
TAIL LIGHT LENS1M1-84521-60-00
Required: 1
.LENS, taillight
Cross Ship
Leaves in 2-5 days
$43.99
$39.59
You save $4.40
More details
-10%
Adjuster Screw
5
Yamaha Motors
Adjuster Screw5BF-8433E-00-00
Required: 2
.SCREW, lens fitting
Supersedes: 1M1-84524-60-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
BULB 12V32/3CP
6
Yamaha Motors
BULB 12V32/3CP256-84714-61-00
Required: 1
.BULB (12V-27/8W)
Cross Ship
Leaves in 2-5 days
$12.99
$11.69
You save $1.30
More details
-10%
DAMPER 2
8
Yamaha Motors
DAMPER 24L0-84753-00-00
Required: 1
DAMPER
Cross Ship
Leaves in 2-5 days
$16.49
$14.84
You save $1.65
More details
-10%
Plate Washer
9
Yamaha Motors
Plate Washer90201-083A0-00
Required: 2
WASHER, plate
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Special Shape Washer
10
Yamaha Motors
Special Shape Washer90209-08125-00
Required: 2
WASHER
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
-10%
Plate Washer
15
Yamaha Motors
Plate Washer90201-044H9-00
Required: 4
WASHER, plate
Supersedes: 90201-044A2-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
BLIND RIVET
16
Yamaha Motors
BLIND RIVET90267-40076-00
Required: 2
RIVET, blind
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
