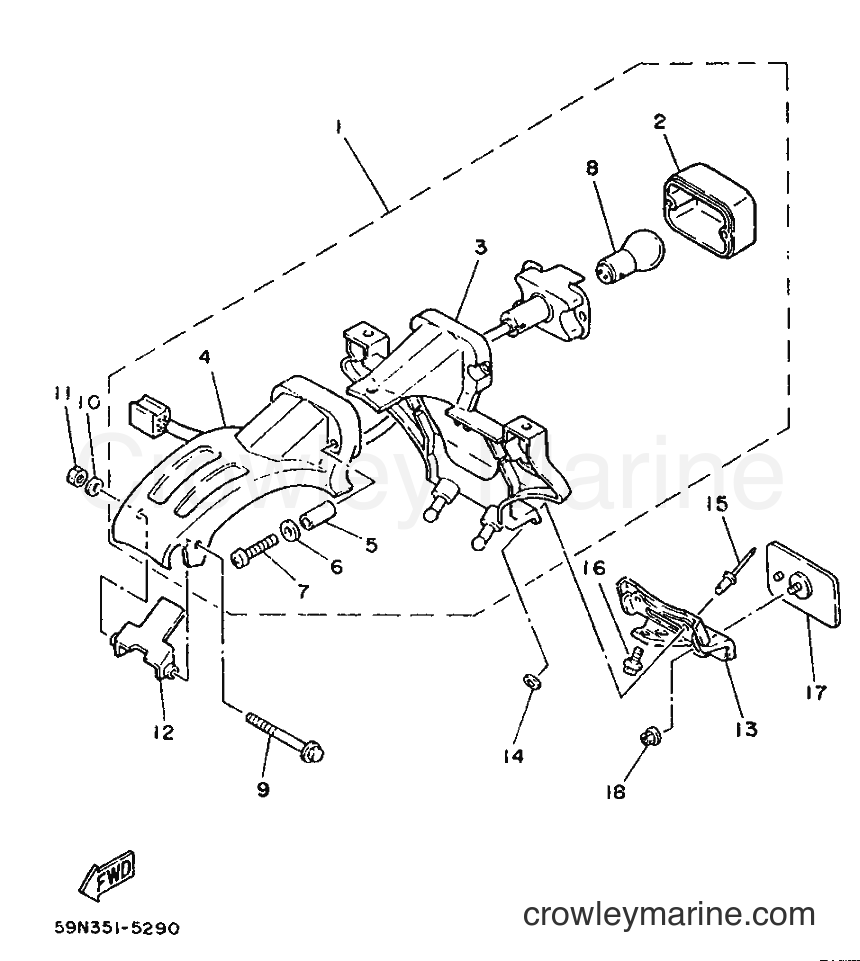

1988 Dirt Bike TY250 - TY250 (59N) [999] TAILLIGHT diagram
![Yamaha Motors TY250 (59N) [999] - TAILLIGHT](https://cdn.crowleymarine.com/yamaha/bmvv236I.png)
1
Yamaha Motors
TAILLIGHT ASSY59N-84500-00
Required: 1
TAILLIGHT ASSY
Price unavailable
-10%
2
Yamaha Motors
TAIL LIGHT LENS434-84521-69-00
Required: 1
. LENS, TAILLIGHT
$35.99
You save $4.00
3
Yamaha Motors
. BRACKET, LICENCE53Y-84551-00
Required: 1
. BRACKET, LICENCE
Price unavailable
4
Yamaha Motors
. DAMPER53Y-84527-00
Required: 1
. DAMPER
Price unavailable
5
Yamaha Motors
. COLLAR29W-84557-00
Required: 2
. COLLAR
Price unavailable
-10%
6
Yamaha Motors
Washer92907-04200-00
Required: 2
. WASHER, PLAIN
Supersedes: 92906-04200-00
$1.62
You save $0.18
-10%
7
Yamaha Motors
Pan Head Screw98517-04030-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98506-04030-00
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
8
Yamaha Motors
. BULB1M8-84514-41
Required: 1
. BULB
Price unavailable
9
Yamaha Motors
BOLT, FLANGE95806-06065
Required: 1
BOLT, FLANGE
Price unavailable
-10%
10
Yamaha Motors
Washer92907-06200-00
Required: 1
WASHER, PLAIN
Supersedes: 92906-06200-00
$8.54
You save $0.95
-10%
11
Yamaha Motors
NUT95307-06800-00
Required: 1
NUT
Supersedes: 95306-06800-00
$3.74
You save $0.42
12
Yamaha Motors
BRACKET, TAILLIGHT53Y-84519-00
Required: 1
BRACKET, TAILLIGHT
Price unavailable
13
Yamaha Motors
BRACKET, REFLECTOR53Y-21641-00
Required: 1
BRACKET, REFLECTOR
Price unavailable
-10%
14
Yamaha Motors
Plate Washer90201-044H9-00
Required: 2
WASHER, PLATE
Supersedes: 90201-044A2-00
$8.54
You save $0.95
-10%
$8.54
You save $0.95
-15%
16
Yamaha Motors
Flange Bolt95817-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95826-06012-00
In stock
Only 2 remaining
$1.66
You save $0.29
-10%
17
Yamaha Motors
4KM-85130-00-003G1-85130-01-00
Required: 1
REAR REFLECTOR ASSY
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
-10%
No longer availableSearch Nationwide Inventory
$2.48
You save $0.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
