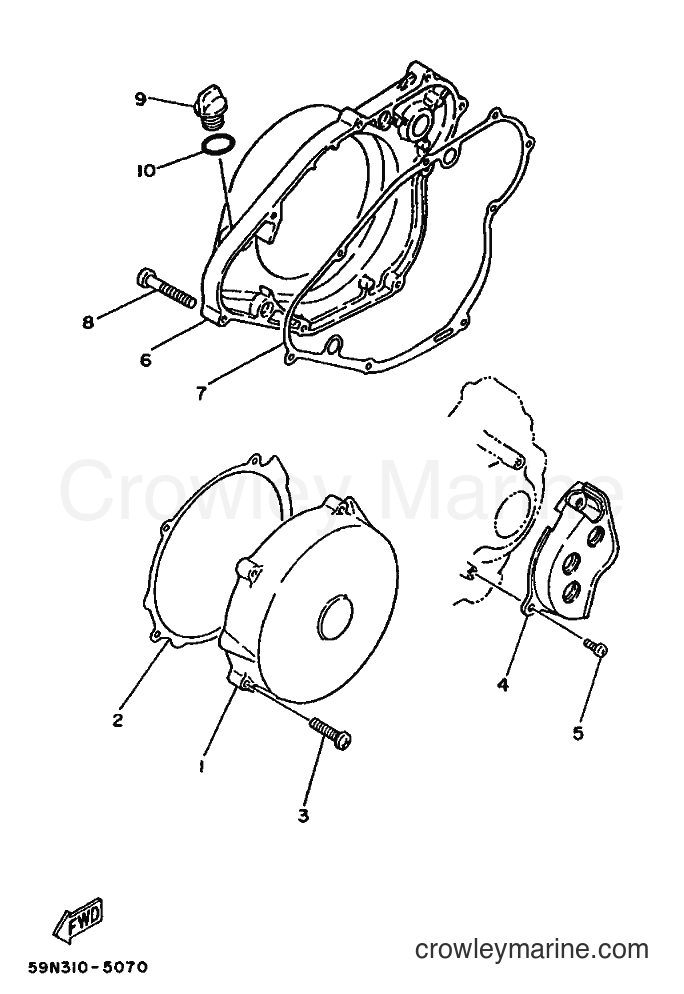

1988 Dirt Bike TY250 - TY250 (59N) [99A] CRANKCASE COVER 1 diagram
![Yamaha Motors TY250 (59N) [99A] - CRANKCASE COVER 1](https://cdn.crowleymarine.com/yamaha/5Dr28nRa.png)
-10%
1
Yamaha Motors
CRANKCASE COVER38V-15411-00-00
Required: 1
COVER, CRANKCASE 1
No longer availableSearch Nationwide Inventory
$134.09
You save $14.90
-10%
2
Yamaha Motors
Crankcase Cover Gasket38V-15451-10-00
Required: 1
GASKET, CRANKCASE COVER 1
Supersedes: 38V-15451-00-00
$22.49
You save $2.50
-10%
3
Yamaha Motors
Pan Head Screw98511-06025-00
Required: 4
SCREW, PAN HEAD
Supersedes: 92501-06025-00
No longer availableSearch Nationwide Inventory
$1.94
You save $0.21
4
Yamaha Motors
COVER, CRANKCASE 253Y-15421-00
Required: 1
COVER, CRANKCASE 2
Price unavailable
-10%
5
Yamaha Motors
Pan Head Screw98516-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92506-06012-00
No longer availableSearch Nationwide Inventory
$2.07
You save $0.23
-10%
6
Yamaha Motors
CRANKCASE COVER 338V-15431-00-00
Required: 1
COVER, CRANKCASE 3
No longer availableSearch Nationwide Inventory
$210.59
You save $23.40
-10%
7
Yamaha Motors
Crankcase Cover Gasket38V-15462-10-00
Required: 1
GASKET, CRANKCASE COVER 3
Supersedes: 38V-15462-00-00
$33.29
You save $3.70
-10%
8
Yamaha Motors
98506-06035-0092506-06035-00
Required: 8
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$0.95
You save $0.10
-10%
9
Yamaha Motors
Oil Level Plug1G8-15362-00-00
Required: 1
PLUG, OIL LEVEL
No longer availableSearch Nationwide Inventory
$15.74
You save $1.75
-50%
10
Yamaha Motors
O-Ring93210-14579-00
Required: 1
O-RING
Supersedes: 93210-14104-00
In stock
Only 5 remaining
$4.00
You save $4.00
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
