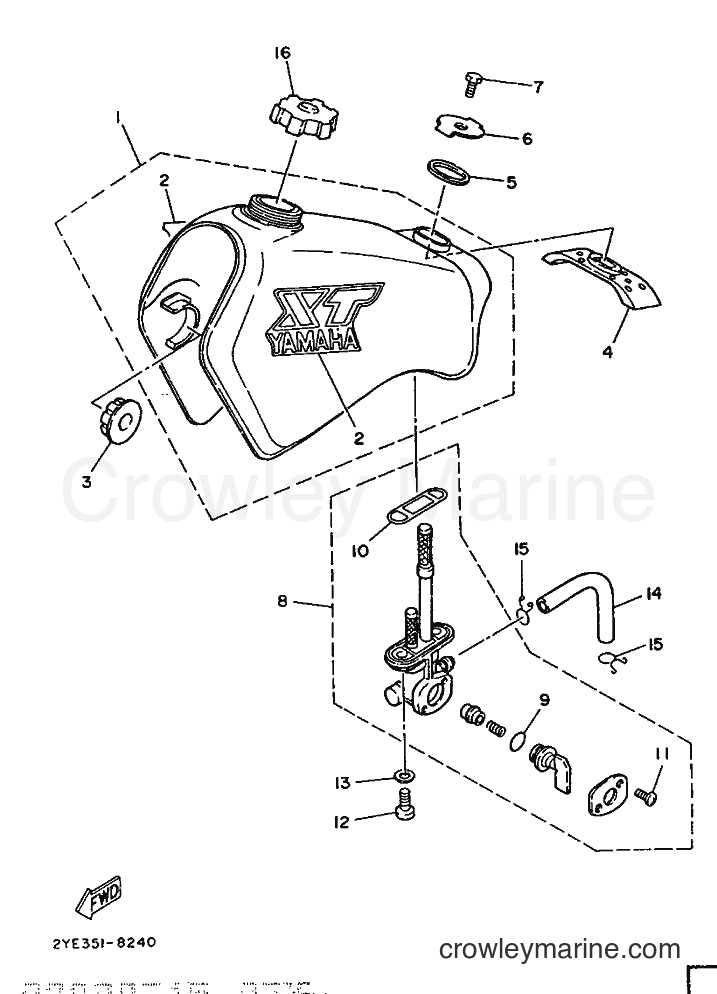

1988 Dirt Bike XT125 - XT125 (2YE1) [99A] FUEL TANK diagram
![Yamaha Motors XT125 (2YE1) [99A] - FUEL TANK](https://cdn.crowleymarine.com/yamaha/pmioVSH7.png)
1
Yamaha Motors
FUEL TANK COMP.15A-24110-00-08
Required: 1
FUEL TANK COMP.
Price unavailable
2
Yamaha Motors
. EMBLEM 147J-24161-00
Required: 2
. EMBLEM 1
Price unavailable
-10%
3
Yamaha Motors
Locating Damper4H7-24181-00-00
Required: 2
DAMPER, LOCATING 1
$6.74
You save $0.75
-10%
4
Yamaha Motors
LOCATING DAMPER15A-24182-00-00
Required: 1
DAMPER, LOCATING 2
No longer availableSearch Nationwide Inventory
$18.89
You save $2.10
-10%
5
Yamaha Motors
LOCATING DAMPER 33Y6-24183-00-00
Required: 1
DAMPER, LOCATING 3
Supersedes: 11H-24183-00-00
$7.64
You save $0.85
-10%
6
Yamaha Motors
Special Washer11H-24186-00-00
Required: 1
WASHER, SPECIAL
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
-10%
No longer availableSearch Nationwide Inventory
$2.56
You save $0.29
-10%
8
Yamaha Motors
23F-24500-01-0015A-24500-03-00
Required: 1
FUEL COCK ASSY 1
Supersedes: 15A-24500-02-00
No longer availableSearch Nationwide Inventory
$23.39
You save $2.60
-10%
$8.54
You save $0.95
-10%
$8.54
You save $0.95
-10%
11
Yamaha Motors
Pan Head Screw98580-03008-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 97801-03008-00
$3.46
You save $0.38
-20%
13
Yamaha Motors
Plate Washer90202-05187-00
Required: 2
WASHER, PLATE
Supersedes: 90202-06010-00
In stock
Only 4 remaining
$1.36
You save $0.34
-10%
14
Yamaha Motors
Hose90445-10490-00
Required: 1
HOSE (L145)
Supersedes: 90445-10638-00
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
15
Yamaha Motors
Clip90467-090A2-00
Required: 2
CLIP
Supersedes: 90467-09006-00
$4.28
You save $0.47
-10%
No longer availableSearch Nationwide Inventory
$39.59
You save $4.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
