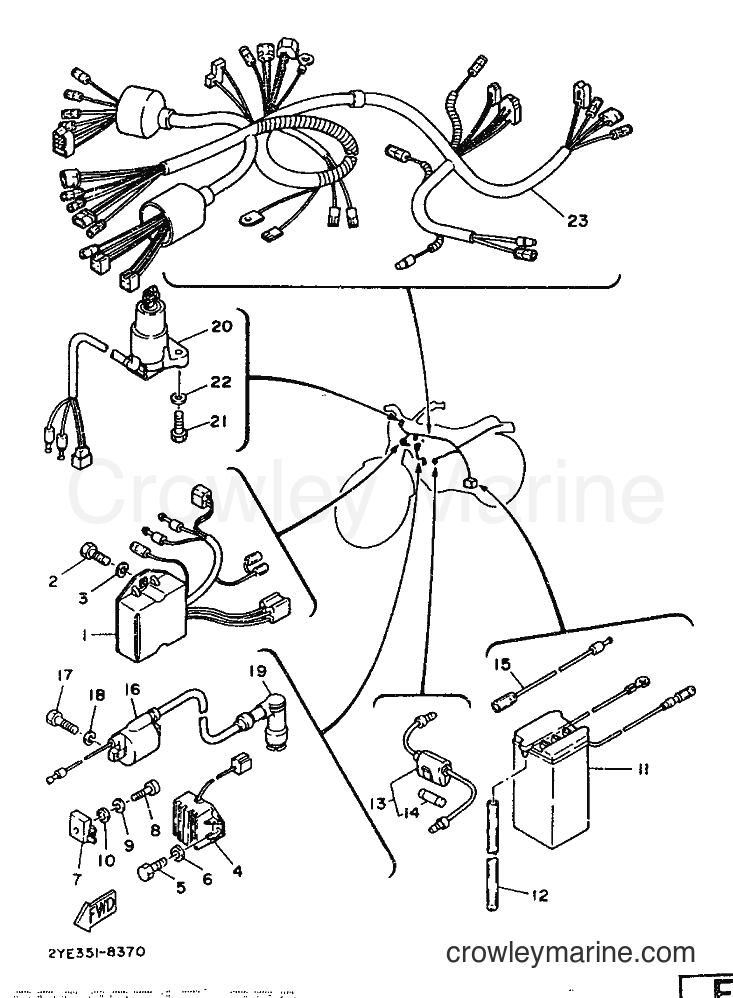

1988 Dirt Bike XT125 - XT125 (2YE1) [99A] PARTIE ELECTRIQUE 1 diagram
![Yamaha Motors XT125 (2YE1) [99A] - PARTIE ELECTRIQUE 1](https://cdn.crowleymarine.com/yamaha/j5z3CBRp.png)
1
Yamaha Motors
C.D.I. UNIT ASSY12V-85540-M0
Required: 1
C.D.I. UNIT ASSY
Price unavailable
-10%
2
Yamaha Motors
Hexagon bolt97313-06016-00
Required: 2
BOLT, HEXAGON
Supersedes: 97002-06016-00
No longer availableSearch Nationwide Inventory
$1.67
You save $0.19
-15%
3
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
4
Yamaha Motors
VOLTAGE REGULATOR ASSEMBLY10V-81910-60-00
Required: 1
VOLTAGE REGULATOR ASSY
No longer availableSearch Nationwide Inventory
$204.29
You save $22.70
-10%
No longer availableSearch Nationwide Inventory
$1.80
You save $0.20
-15%
6
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
-10%
7
Yamaha Motors
RECTIFIER ASSY353-81970-M1-00
Required: 1
RECTIFIER ASSY
Supersedes: 353-81970-63-00
No longer availableSearch Nationwide Inventory
$16.19
You save $1.80
-10%
8
Yamaha Motors
Pan Head Screw98511-05020-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98501-05020-00
No longer availableSearch Nationwide Inventory
$1.13
You save $0.13
-15%
9
Yamaha Motors
Spring Washer92990-05100-00
Required: 1
WASHER, SPRING
$0.30
You save $0.05
-15%
10
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER, PLATE
Supersedes: 92901-05600-00
In stock
Only 1 remaining
$0.68
You save $0.12
-10%
11
Yamaha Motors
6N4A4D YUASA BATTER6N4-A4DY0-00-00
Required: 1
BATTERY ASSY (6N4A-4D)
Supersedes: 104-82110-29-00
No longer availableSearch Nationwide Inventory
$28.79
You save $3.20
-10%
12
Yamaha Motors
90445-084G9-0090445-08720-00
Required: 1
HOSE (L250)
Supersedes: 90445-08619-00
No longer availableSearch Nationwide Inventory
$9.44
You save $1.05
-10%
13
Yamaha Motors
55K-82150-01-0055K-82150-00-00
Required: 1
FUSE HOLDER ASSY
Supersedes: 353-82150-00-00
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
-10%
14
Yamaha Motors
Obsolete Yamaha Part1A0-82151-00-00
Required: 1
. FUSE (10A)
Supersedes: 116-82151-00-00
$16.19
You save $1.80
-10%
15
Yamaha Motors
Plus Lead Wire15A-82115-00-00
Required: 1
WIRE, PLUS LEAD
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
-10%
16
Yamaha Motors
IGNITION COIL ASSY4RP-82310-26-00
Required: 1
IGNITION COIL ASSY
Supersedes: 15A-82310-M0-00
No longer availableSearch Nationwide Inventory
$71.99
You save $8.00
-10%
17
Yamaha Motors
BOLT97011-06020-00
Required: 2
BOLT
Supersedes: 97001-06020-00
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-15%
18
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
No longer availableSearch Nationwide Inventory
$26.99
You save $3.00
20
Yamaha Motors
MAIN SWITCH STEERING LOCK12V-82501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
-10%
$9.44
You save $1.05
-15%
22
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
23
Yamaha Motors
WIRE HARNESS ASSY2YE-82590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
