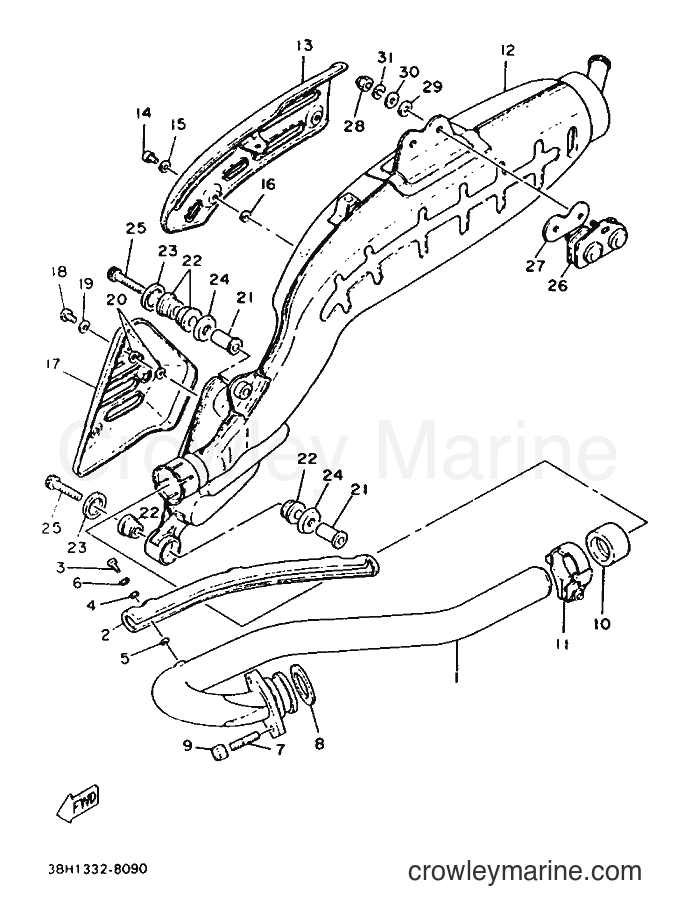

1988 Dirt Bike XT500 - XT500 (3BH1) [999] EXHAUST diagram
![Yamaha Motors XT500 (3BH1) [999] - EXHAUST](https://cdn.crowleymarine.com/yamaha/01aQrtg2.png)
-10%
1
Yamaha Motors
Exhaust Pipe1T1-14611-03-00
Required: 1
PIPE, EXHAUST 1
No longer availableSearch Nationwide Inventory
$230.39
You save $25.60
2
Yamaha Motors
PROTECTOR, EXHAUST PIPE3BH-14628-00
Required: 1
PROTECTOR, EXHAUST PIPE
Price unavailable
-10%
3
Yamaha Motors
Bind Screw98907-06010-00
Required: 2
SCREW, BIND
Supersedes: 98906-06010-00
$1.62
You save $0.18
-20%
4
Yamaha Motors
Plate Washer90202-05187-00
Required: 2
WASHER, PROTECTOR
Supersedes: 583-14766-00-00
In stock
Only 4 remaining
$1.36
You save $0.34
-10%
5
Yamaha Motors
3WX-14766-00-001E6-14766-01-00
Required: 2
WASHER, PROTECTOR
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-50%
6
Yamaha Motors
Wave Washer90206-06090-00
Required: 2
WASHER, WAVE
Supersedes: 90206-06060-00
In stock
Only 3 remaining
$4.75
You save $4.75
-10%
7
Yamaha Motors
Stud Bolt95617-08615-00
Required: 2
BOLT, STUD
Supersedes: 95621-08615-00
$5.84
You save $0.65
-10%
$13.94
You save $1.55
-10%
$9.44
You save $1.05
-10%
10
Yamaha Motors
Muffler Gasket3EG-14714-00-00
Required: 1
GASKET, MUFFLER
Supersedes: 42X-14714-00-00
$71.09
You save $7.90
-10%
11
Yamaha Motors
BAND,SILENCER1T1-14788-00-00
Required: 1
BAND, SILENCER
No longer availableSearch Nationwide Inventory
$61.19
You save $6.80
12
Yamaha Motors
MUFFLER ASSY 11U6-14710-51
Required: 1
MUFFLER ASSY 1
Price unavailable
13
Yamaha Motors
PROTECTOR, MUFFLER 13BH-14718-00
Required: 1
PROTECTOR, MUFFLER 1
Price unavailable
-10%
14
Yamaha Motors
Bind Screw98907-06010-00
Required: 3
SCREW, BIND
Supersedes: 98906-06010-00
$1.62
You save $0.18
-20%
15
Yamaha Motors
Plate Washer90202-05187-00
Required: 3
WASHER, PROTECTOR
Supersedes: 583-14766-00-00
In stock
Only 4 remaining
$1.36
You save $0.34
-10%
16
Yamaha Motors
3WX-14766-00-001E6-14766-01-00
Required: 3
WASHER, PROTECTOR
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
17
Yamaha Motors
PROTECTOR, MUFFLER 23BH-14728-00
Required: 1
PROTECTOR, MUFFLER 2
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$2.56
You save $0.29
-20%
19
Yamaha Motors
Plate Washer90202-05187-00
Required: 3
WASHER, PROTECTOR
Supersedes: 583-14766-00-00
In stock
Only 4 remaining
$1.36
You save $0.34
-10%
20
Yamaha Motors
3WX-14766-00-001E6-14766-01-00
Required: 6
WASHER, PROTECTOR
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$9.44
You save $1.05
-10%
22
Yamaha Motors
Muffler Damper1T1-14747-01-00
Required: 4
DAMPER, MUFFLER
$17.09
You save $1.90
-10%
23
Yamaha Motors
WASHER90209-08008-00
Required: 2
WASHER
Supersedes: 90209-08098-00
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-50%
In stock
Only 2 remaining
$4.75
You save $4.75
-10%
No longer availableSearch Nationwide Inventory
$71.99
You save $8.00
-10%
27
Yamaha Motors
Silencer Gasket1T1-14755-02-00
Required: 1
GASKET, SILENCER
Supersedes: 1T1-14755-01-00
No longer availableSearch Nationwide Inventory
$3.24
You save $0.36
-10%
28
Yamaha Motors
NUT95617-08100-00
Required: 2
NUT, U
Supersedes: 95616-08100-00
$9.44
You save $1.05
-10%
29
Yamaha Motors
Plate Washer90202-08103-00
Required: 2
WASHER, PLATE
No longer availableSearch Nationwide Inventory
$2.56
You save $0.29
-10%
30
Yamaha Motors
Plate Washer90201-08326-00
Required: 2
WASHER, PLATE
Supersedes: 90201-081H4-00
$8.54
You save $0.95
-10%
31
Yamaha Motors
Spring Washer92907-08100-00
Required: 2
WASHER, SPRING
Supersedes: 92906-08100-00
$8.54
You save $0.95
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
