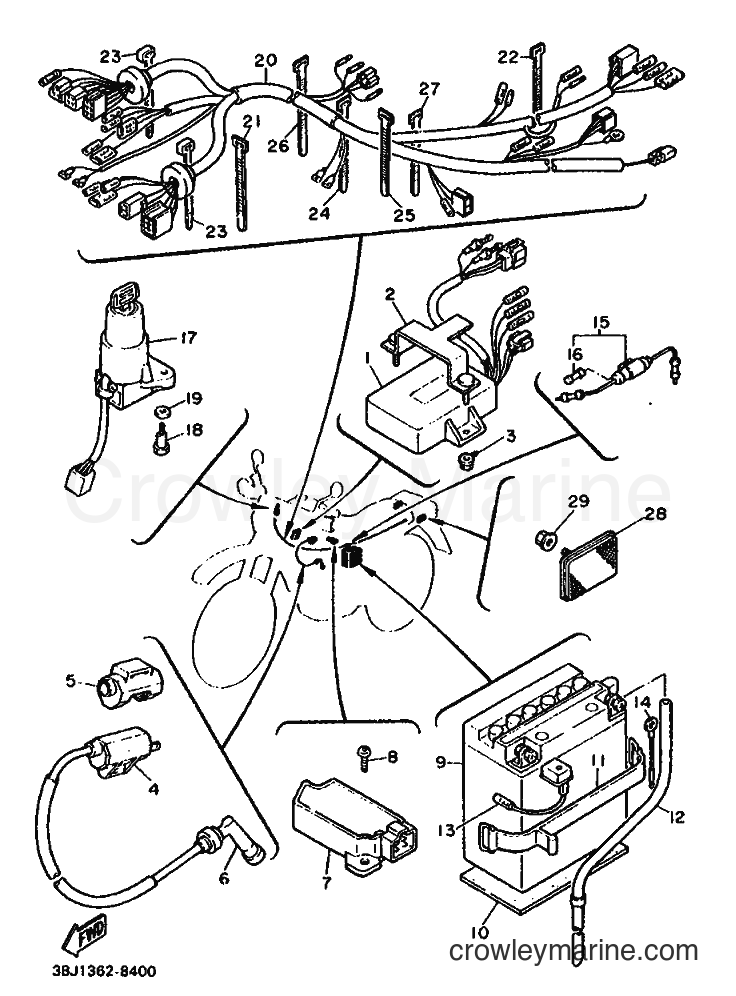

1988 Dirt Bike XT500T - XT500T (3BJ1) [999] ELECTRICAL 1 diagram
![Yamaha Motors XT500T (3BJ1) [999] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/Qf26LPzq.png)
1
Yamaha Motors
C.D.I. UNIT ASSY2KF-85540-50
Required: 1
C.D.I. UNIT ASSY
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$2.12
You save $0.23
4
Yamaha Motors
IGNITION COIL ASSY2KF-82310-50
Required: 1
IGNITION COIL ASSY
Price unavailable
5
Yamaha Motors
DAMPER, IGNITION COIL1VJ-82317-00
Required: 1
DAMPER, IGNITION COIL
Price unavailable
-10%
6
Yamaha Motors
Plug Cap Assembly4VW-82370-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 371-82370-00-00
$68.39
You save $7.60
-10%
7
Yamaha Motors
RECTIFIER/REGULATOR ASSEMBLY1JK-81960-A1-00
Required: 1
RECTIFIER & REGULATOR ASSY
$103.49
You save $11.50
-10%
8
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06012-00
$3.69
You save $0.41
-10%
9
Yamaha Motors
YB5LB YUASA BATTERYYB5-LB000-00-00
Required: 1
BATTERY ASSY
Supersedes: 43F-82110-60-00
No longer availableSearch Nationwide Inventory
$31.45
You save $3.49
-10%
$7.64
You save $0.85
-10%
$29.69
You save $3.30
-10%
No longer availableSearch Nationwide Inventory
$2.49
You save $0.28
-10%
13
Yamaha Motors
Plus Lead Wire1M1-82115-00-00
Required: 1
WIRE, PLUS LEAD
$28.79
You save $3.20
14
Yamaha Motors
WIRE, MINUS LEAD2KF-82116-00
Required: 1
WIRE, MINUS LEAD
Price unavailable
-10%
15
Yamaha Motors
Fuse Holder Assembly2UJ-82150-01-00
Required: 1
FUSE HOLDER ASSY
Supersedes: 2UJ-82150-00-00
No longer availableSearch Nationwide Inventory
$8.99
You save $1.00
-10%
16
Yamaha Motors
Fuse1A0-82161-00-00
Required: 1
. FUSE
Supersedes: 148-82151-00-00
$7.64
You save $0.85
17
Yamaha Motors
MAIN SWITCH STEERING LOCK55V-82501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
-10%
$9.44
You save $1.05
-15%
19
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
20
Yamaha Motors
WIRE HARNESS ASSY2KF-82590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
-20%
21
Yamaha Motors
Switch Cord Band25G-83936-01-00
Required: 1
BAND, SWITCH CORD
Supersedes: 25G-83936-00-00
In stock
Only 1 remaining
$4.39
You save $1.10
-10%
22
Yamaha Motors
Switch Cord Band437-83936-11-00
Required: 1
BAND, SWITCH CORD
Supersedes: 437-83936-10-00
No longer availableSearch Nationwide Inventory
$4.50
You save $0.50
-10%
23
Yamaha Motors
Band1UA-82591-00-00
Required: 2
BAND
Supersedes: 12R-82591-00-00
$4.94
You save $0.55
24
Yamaha Motors
BAND, SWITCH CORD4N0-83936-10
Required: 1
BAND, SWITCH CORD
Price unavailable
-10%
25
Yamaha Motors
Switch Cord Band437-83936-11-00
Required: 1
BAND, SWITCH CORD
Supersedes: 437-83936-10-00
No longer availableSearch Nationwide Inventory
$4.50
You save $0.50
-10%
26
Yamaha Motors
Switch Cord Band437-83936-11-00
Required: 1
BAND, SWITCH CORD
Supersedes: 437-83936-10-00
No longer availableSearch Nationwide Inventory
$4.50
You save $0.50
-10%
27
Yamaha Motors
CLAMP90464-30014-00
Required: 1
BAND, SWITCH CORD
Supersedes: 437-83936-00-00
$5.04
You save $0.56
-10%
$27.89
You save $3.10
-10%
No longer availableSearch Nationwide Inventory
$2.48
You save $0.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
