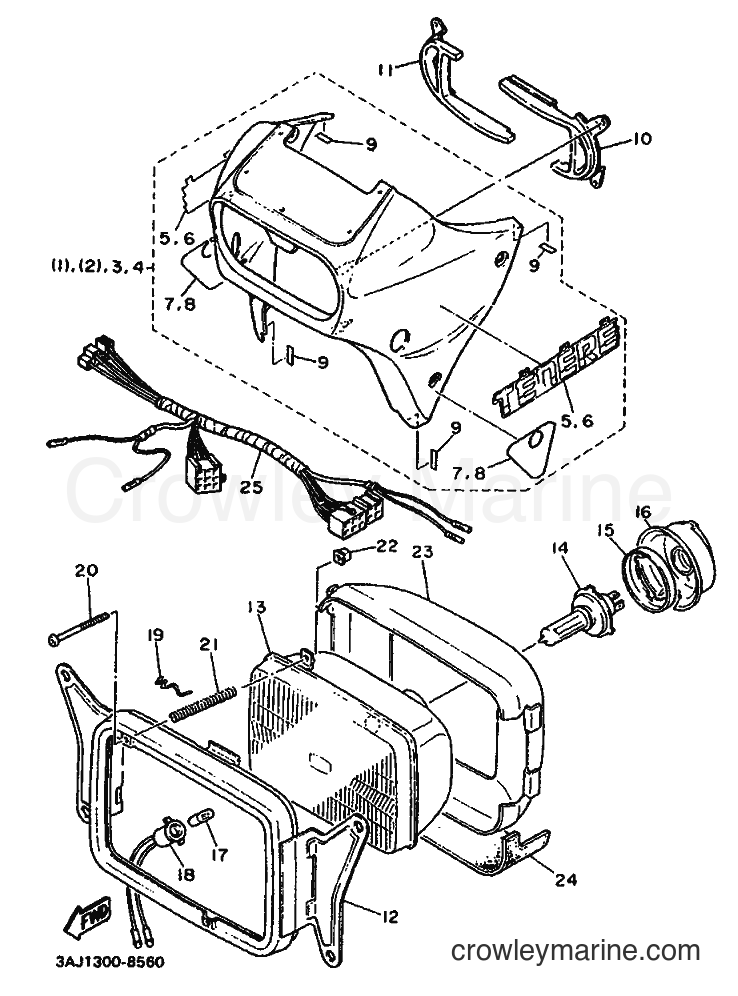

1988 Dirt Bike XT600Z - XT600Z (3AJ3) [999] ALTERNATE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XT600Z (3AJ3) [999] - ALTERNATE
Change View:
COWLING ASS'Y
1
Yamaha Motors
COWLING ASS'Y3AJ-Y2835-00-36
Required: 1
COWLING ASS'Y
Price unavailable
COWLING ASS'Y
2
Yamaha Motors
COWLING ASS'Y3AJ-Y2835-00-NJ
Required: 1
COWLING ASS'Y
Price unavailable
COWLING ASS'Y
3
Yamaha Motors
COWLING ASS'Y3AJ-Y2835-30-36
Required: 1
COWLING ASS'Y
Price unavailable
COWLING ASS'Y
4
Yamaha Motors
COWLING ASS'Y3AJ-Y2835-30-NJ
Required: 1
COWLING ASS'Y
Price unavailable
. EMBLEM
5
Yamaha Motors
. EMBLEM3AJ-28315-00
Required: 2
. EMBLEM
Price unavailable
. EMBLEM
6
Yamaha Motors
. EMBLEM3AJ-28315-10
Required: 2
. EMBLEM
Price unavailable
. GRAPHIC SET, COWLING
7
Yamaha Motors
. GRAPHIC SET, COWLING3AJ-28390-00
Required: 1
. GRAPHIC SET, COWLING
Price unavailable
. GRAPHIC SET, COWLING
8
Yamaha Motors
. GRAPHIC SET, COWLING3AJ-28390-10
Required: 1
. GRAPHIC SET, COWLING
Price unavailable
-10%
LOCATING DAMPER
9
Yamaha Motors
LOCATING DAMPER18A-21778-00-00
Required: 4
. PROTECTOR, FUEL TANK
Supersedes: 2JX-24141-00-00
Cross Ship
Leaves in 2-5 days
$7.49
$6.74
You save $0.75
More details
PANEL 1
10
Yamaha Motors
PANEL 13AJ-2835U-00
Required: 1
PANEL 1
Price unavailable
PANEL 2
11
Yamaha Motors
PANEL 23AJ-2835V-00
Required: 1
PANEL 2
Price unavailable
RIM, HEADLIGHT
12
Yamaha Motors
RIM, HEADLIGHT2LF-84315-00
Required: 1
RIM, HEADLIGHT
Price unavailable
LENS ASSY
13
Yamaha Motors
LENS ASSY11U-84321-G0
Required: 1
LENS ASSY
Price unavailable
BULB, HEADLIGHT (12V-60/55W)
14
Yamaha Motors
BULB, HEADLIGHT (12V-60/55W)*
Required: 1
BULB, HEADLIGHT (12V-60/55W)
Price unavailable
-10%
BULB FITTING PLATE
15
Yamaha Motors
BULB FITTING PLATE2F9-84375-00-00
Required: 1
FITTING PLATE, BULB
Cross Ship
Leaves in 2-5 days
$14.99
$13.49
You save $1.50
More details
-10%
Socket Cover
16
Yamaha Motors
Socket Cover2F9-84397-01-00
Required: 1
COVER, SOCKET
Cross Ship
Leaves in 2-5 days
$33.99
$30.59
You save $3.40
More details
BULB (12V-4W)
17
Yamaha Motors
BULB (12V-4W)*
Required: 1
BULB (12V-4W)
Price unavailable
SOKET
18
Yamaha Motors
SOKET2LF-84312-00
Required: 1
SOKET
Price unavailable
-10%
Spring Set
19
Yamaha Motors
Spring Set55X-84124-00-00
Required: 1
SPRING, REFLECTOR
Supersedes: 5G2-84324-A0-00
Cross Ship
Leaves in 2-5 days
$12.99
$11.69
You save $1.30
More details
-10%
RIM ADJUSTER SCREW
20
Yamaha Motors
RIM ADJUSTER SCREW43F-84131-00-00
Required: 2
SCREW, RIM ADJUSTER
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details
-10%
Screw Spring
21
Yamaha Motors
Screw Spring341-84332-60-00
Required: 2
SPRING, SCREW
Supersedes: 5G2-84332-60-00
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details
-10%
Adjusting Nut
22
Yamaha Motors
Adjusting Nut198-84334-60-00
Required: 2
NUT, ADJUSTING
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
COVER
23
Yamaha Motors
COVER2LF-84396-00
Required: 1
COVER
Price unavailable
DAMPER, HEADLIGHT
24
Yamaha Motors
DAMPER, HEADLIGHT2LF-84345-00
Required: 1
DAMPER, HEADLIGHT
Price unavailable
CORD, HEADLIGHT
25
Yamaha Motors
CORD, HEADLIGHT3AJ-84359-30
Required: 1
CORD, HEADLIGHT
Price unavailable
