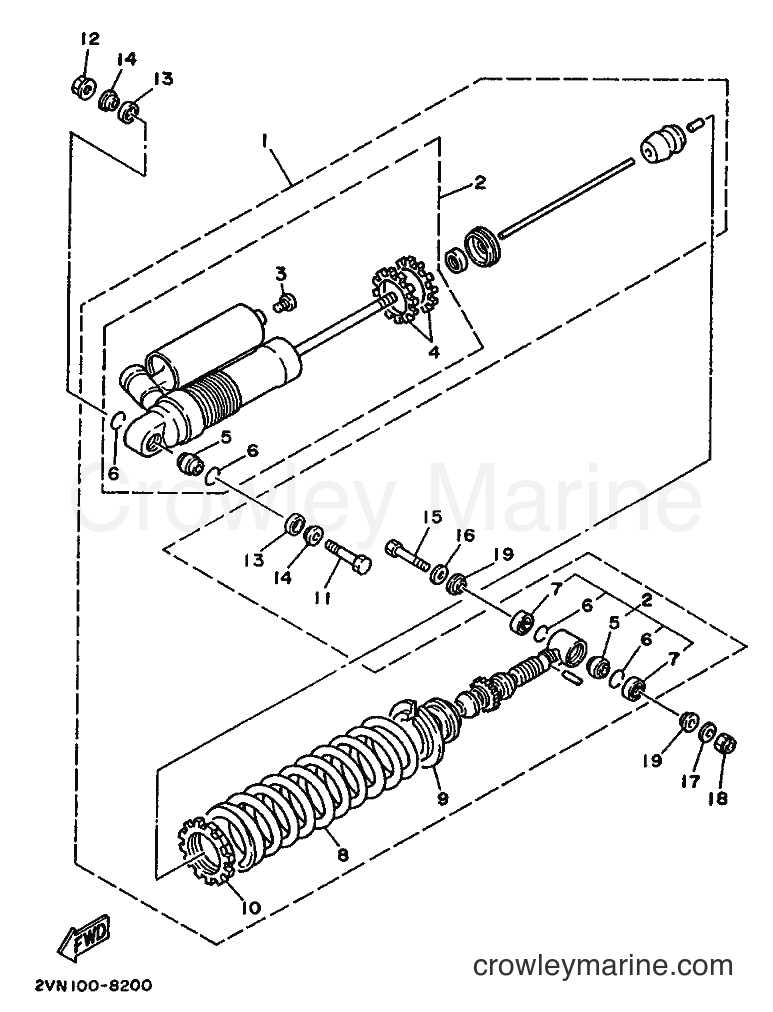

1988 Dirt Bike YZ250 - YZ250 (2VM0) [030] REAR SUSPENSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YZ250 (2VM0) [030] - REAR SUSPENSION
Change View:
..SCREW, pan head
3
Yamaha Motors
..SCREW, pan head98501-04006
Required: 1
..SCREW, pan head
Price unavailable
-10%
Circlip (Outer)
6
Yamaha Motors
Circlip (Outer)93440-30113-00
Required: 4
..CIRCLIP
Cross Ship
Leaves in 2-5 days
$1.85
$1.67
You save $0.19
More details
-10%
OIL SEAL,SO-TYPE
7
Yamaha Motors
OIL SEAL,SO-TYPE93104-18077-00
Required: 2
..OIL SEAL
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
-10%
Self-Locking Nut
12
Yamaha Motors
Self-Locking Nut90185-10115-00
Required: 1
NUT, self-locking
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
SEAL COVER
13
Yamaha Motors
SEAL COVER23X-22211-00-00
Required: 2
COVER
Cross Ship
Leaves in 2-5 days
$12.99
$11.69
You save $1.30
More details
-10%
COLLAR
14
Yamaha Motors
COLLAR90387-127G8-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
-10%
Plain Washer
16
Yamaha Motors
Plain Washer90201-12027-00
Required: 1
WASHER, plate
Supersedes: 90201-120E6-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Plate Washer
17
Yamaha Motors
Plate Washer90201-10M05-00
Required: 1
WASHER, plate
Supersedes: 90201-100E9-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Self-Locking Nut
18
Yamaha Motors
Self-Locking Nut90185-10120-00
Required: 1
NUT, self-locking
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
COLLAR
19
Yamaha Motors
COLLAR90387-126H8-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$31.99
$28.79
You save $3.20
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
