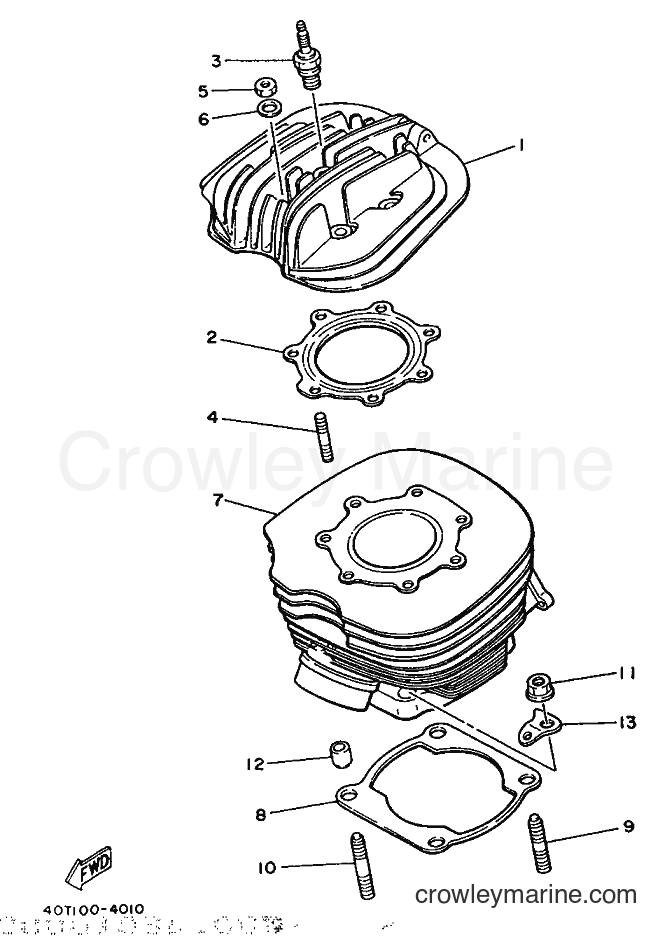

1988 Dirt Bike YZ490 - YZ490 (2WH0) [030] CYLINDER diagram
![Yamaha Motors YZ490 (2WH0) [030] - CYLINDER](https://cdn.crowleymarine.com/yamaha/UnGdV7ao.png)
-10%
1
Yamaha Motors
CYLINDER HEAD40T-11111-00-00
Required: 1
HEAD, cylinder 1
No longer availableSearch Nationwide Inventory
$174.59
You save $19.40
-10%
2
Yamaha Motors
CYLINDER HEAD GASKET40T-11181-00-00
Required: 1
GASKET, cylinder head 1
No longer availableSearch Nationwide Inventory
$35.99
You save $4.00
3
Yamaha Motors
PLUG, spark (NGK BR8EG)94701-00326
Required: 1
PLUG, spark (NGK BR8EG)
Price unavailable
3
Yamaha Motors
PLUG, spark (NGK B8EG)94701-00323
Required: 1
PLUG, spark (NGK B8EG)
Price unavailable
-10%
$4.94
You save $0.55
-15%
5
Yamaha Motors
Nut95333-08600-00
Required: 7
NUT
Supersedes: 95303-08600-00
$3.23
You save $0.57
-10%
6
Yamaha Motors
Plate Washer90201-08649-00
Required: 7
WASHER, plate
$9.44
You save $1.05
-10%
7
Yamaha Motors
Cylinder4AA-11311-00-00
Required: 1
CYLINDER 1
Supersedes: 2HJ-11311-00-00
No longer availableSearch Nationwide Inventory
$718.19
You save $79.80
-10%
8
Yamaha Motors
CYLINDER GASKET1LV-11351-10-00
Required: 1
GASKET, cylinder
Supersedes: 1LV-11351-00-00
No longer availableSearch Nationwide Inventory
$18.89
You save $2.10
-10%
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$3.06
You save $0.34
-10%
12
Yamaha Motors
DOWEL PIN (MHO)91815-16017-00
Required: 2
PIN, dowel
Supersedes: 91810-17016-00
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$14.39
You save $1.60
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
