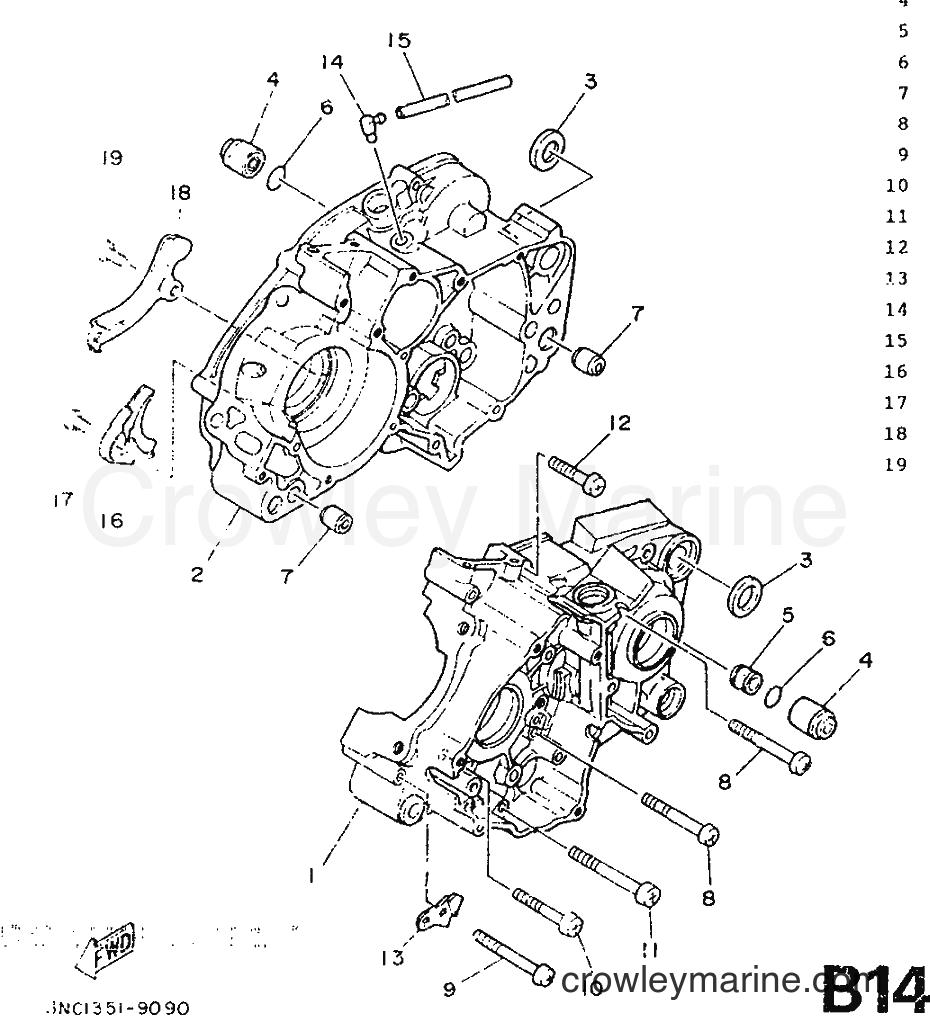

1989 Dirt Bike DT125R - DT125R (3NC1) [999] CRANKCASE diagram
![Yamaha Motors DT125R (3NC1) [999] - CRANKCASE](https://cdn.crowleymarine.com/yamaha/XAJkt1Fu.png)
1
Yamaha Motors
CRANKCASE 13NC-E5111-00
Required: 1
CRANKCASE 1
Price unavailable
2
Yamaha Motors
CRANKCASE 23NC-E5121-00
Required: 1
CRANKCASE 2
Price unavailable
-10%
3
Yamaha Motors
Plain Washer90201-16021-00
Required: 2
WASHER, PLATE
Supersedes: 90201-170M2-00
$8.54
You save $0.95
-10%
4
Yamaha Motors
DAMPER 290388-08003-00
Required: 2
DAMPER 1
Supersedes: 328-15316-00-00
$17.54
You save $1.95
5
Yamaha Motors
SPACER, ENGINE MOUNT3NC-E5317-00
Required: 1
SPACER, ENGINE MOUNT
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$3.15
You save $0.35
-50%
7
Yamaha Motors
Dowel Pin99530-12016-00
Required: 2
PIN, DOWEL
Supersedes: 99510-12016-00
In stock
Only 2 remaining
$2.45
You save $2.45
-10%
8
Yamaha Motors
Pan Head Screw98580-06560-00
Required: 4
SCREW, PAN HEAD
Supersedes: 92501-06060-00
$9.44
You save $1.05
-10%
9
Yamaha Motors
98580-06565-0098501-06065-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92501-06065-00
No longer availableSearch Nationwide Inventory
$5.84
You save $0.65
-10%
10
Yamaha Motors
Pan Head Screw98580-06550-00
Required: 5
SCREW, PAN HEAD
Supersedes: 92501-06050-00
$8.54
You save $0.95
-10%
11
Yamaha Motors
Pan Head Screw98580-06570-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06070-00
$18.89
You save $2.10
-10%
12
Yamaha Motors
98580-06040-0098501-06040-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92501-06040-00
No longer availableSearch Nationwide Inventory
$3.24
You save $0.36
13
Yamaha Motors
BRACKET3NC-E5199-00
Required: 1
BRACKET
Price unavailable
14
Yamaha Motors
BREATHER3FN-E5371-00
Required: 1
BREATHER
Price unavailable
15
Yamaha Motors
HOSE90446-07321
Required: 1
HOSE
Price unavailable
16
Yamaha Motors
HOLDER3FN-E5128-00
Required: 1
HOLDER
Price unavailable
-10%
17
Yamaha Motors
PAN SCREW98507-08010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92501-08010-00
$8.54
You save $0.95
18
Yamaha Motors
BOLT 23FN-E5482-00
Required: 1
BOLT 2
Price unavailable
-10%
19
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06012-00
$3.69
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
