1989 Dirt Bike DT125R - DT125R (3NC1) [999] FOURCHE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

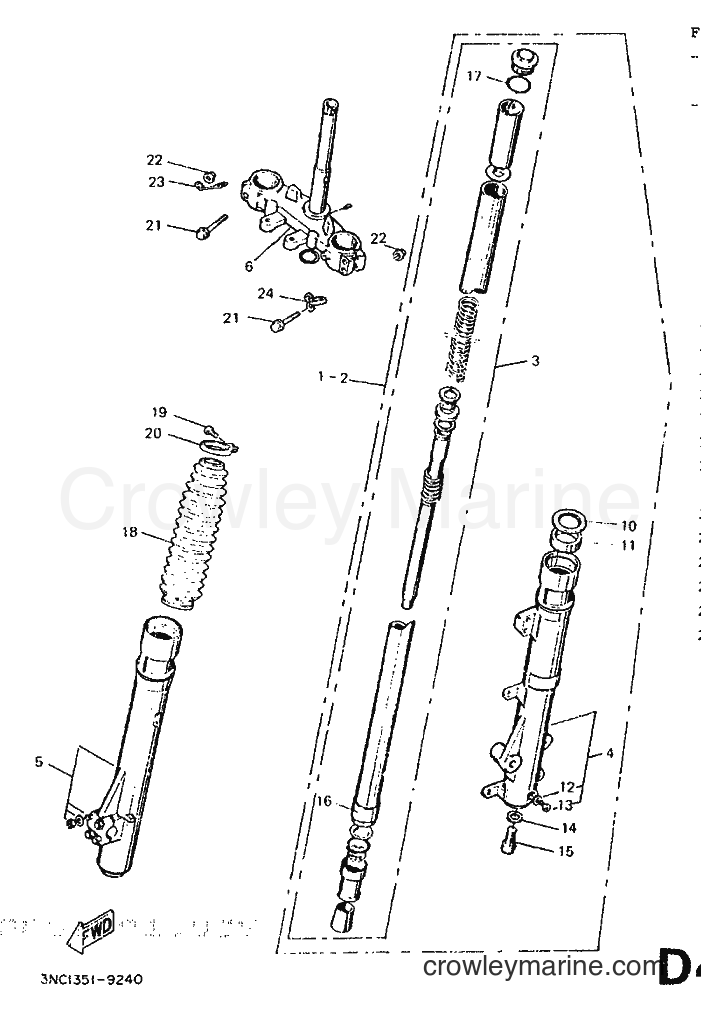

Yamaha Motors DT125R (3NC1) [999] - FOURCHE
Change View:
FRONT FORK ASSY (L.H)
1
Yamaha Motors
FRONT FORK ASSY (L.H)3NC-F3102-00
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
FRONT FORK ASSY (R.H)
2
Yamaha Motors
FRONT FORK ASSY (R.H)3NC-F3103-00
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
INNER TUBE COMP.1
3
Yamaha Motors
INNER TUBE COMP.13NC-F3110-00
Required: 1
INNER TUBE COMP.1
Price unavailable
TUBE, OUTER (L.H)
4
Yamaha Motors
TUBE, OUTER (L.H)3NC-F3126-10
Required: 1
TUBE, OUTER (L.H)
Price unavailable
PIECE, FRICTION
5
Yamaha Motors
PIECE, FRICTION3NC-43136-00
Required: 1
PIECE, FRICTION
Price unavailable
UNDER BRACKET COMP.
6
Yamaha Motors
UNDER BRACKET COMP.3NC-F3340-00
Required: 1
UNDER BRACKET COMP.
Price unavailable
RING, SNAP
10
Yamaha Motors
RING, SNAP3NC-F3156-00
Required: 1
RING, SNAP
Price unavailable
OIL SEAL
11
Yamaha Motors
OIL SEAL3NC-F3145-00
Required: 1
OIL SEAL
Price unavailable
GASKET, DRAIN PLUG
12
Yamaha Motors
GASKET, DRAIN PLUG3HL-F3129-00
Required: 1
GASKET, DRAIN PLUG
Price unavailable
SCREW
13
Yamaha Motors
SCREW3NC-F3119-00
Required: 1
SCREW
Price unavailable
WASHER, SPRING, LOWER
14
Yamaha Motors
WASHER, SPRING, LOWER3NC-F3159-00
Required: 1
WASHER, SPRING, LOWER
Price unavailable
BOLT, HEXAGON SOCKET HEAD
15
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD3NC-F3181-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
Price unavailable
SPINDLE, TAPER
16
Yamaha Motors
SPINDLE, TAPER3NC-F3173-00
Required: 1
SPINDLE, TAPER
Price unavailable
GASKET
17
Yamaha Motors
GASKET3NC-F3114-00
Required: 1
GASKET
Price unavailable
-10%
Front Fork Boot
18
Yamaha Motors
Front Fork Boot43F-23191-11-00
Required: 1
BOOT
Supersedes: 43F-23191-10-00
Cross Ship
Leaves in 2-5 days
$166.99
$150.29
You save $16.70
More details
BOOT
18
Yamaha Motors
BOOT3BN-23191-10
Required: 1
BOOT
Price unavailable
-10%
Band
20
Yamaha Motors
Band43M-23192-L0-00
Required: 2
BAND
Cross Ship
Leaves in 2-5 days
$22.99
$20.69
You save $2.30
More details
-10%
Flange Bolt
21
Yamaha Motors
Flange Bolt95817-08055-00
Required: 4
BOLT, FLANGE
Supersedes: 95821-08055-00
Cross Ship
Leaves in 2-5 days
$4.21
$3.79
You save $0.42
More details
-10%
Cable Guide
23
Yamaha Motors
Cable Guide4V5-23389-00-00
Required: 1
GUIDE, CABLE
Cross Ship
Leaves in 2-5 days
$42.99
$38.69
You save $4.30
More details
HOLDER, CABLE
24
Yamaha Motors
HOLDER, CABLE3BN-23317-00
Required: 1
HOLDER, CABLE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
