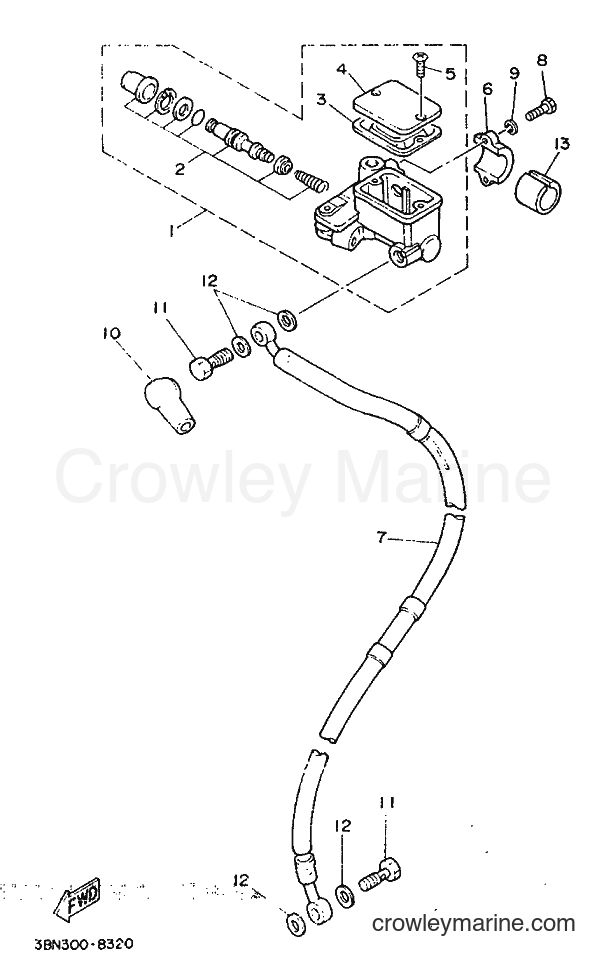

1989 Dirt Bike DT125R - DT125R (3NC1) [999] FRONT MASTER CYLINDER diagram
![Yamaha Motors DT125R (3NC1) [999] - FRONT MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/ZsPPFyOw.png)
-10%
1
Yamaha Motors
Master Cylinder Assembly5CG-2583T-12-00
Required: 1
MASTER CYLINDER ASSY
Supersedes: 2KF-25850-00-00
$225.95
You save $25.04
-10%
2
Yamaha Motors
Master Cylinder Kit5VK-25807-00-00
Required: 1
CYLINDER KIT, MASTER
Supersedes: 59X-W0041-00-00
$69.29
You save $7.70
-10%
3
Yamaha Motors
Reservoir Diaphragm55U-25854-00-00
Required: 1
DIAPHRAGM, RESERVOIR
$27.89
You save $3.10
-10%
4
Yamaha Motors
FRONT RESERVOIR CAP2KF-25852-02-00
Required: 1
CAP, RESERVOIR
Supersedes: 2KF-25852-01-00
No longer availableSearch Nationwide Inventory
$26.99
You save $3.00
-10%
5
Yamaha Motors
98507-04012-0098506-04012-00
Required: 2
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$1.89
You save $0.21
-10%
6
Yamaha Motors
Master Cylinder Bracket56A-25867-00-00
Required: 1
BRACKET, MASTER CYLINDER
$28.79
You save $3.20
7
Yamaha Motors
HOSE, BRAKE 13BN-25872-00
Required: 1
HOSE, BRAKE 1
Price unavailable
-10%
8
Yamaha Motors
Bolt97017-06025-00
Required: 2
BOLT
Supersedes: 97016-06025-00
$4.09
You save $0.46
-50%
9
Yamaha Motors
Spring Washer92907-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$0.65
You save $0.65
-10%
10
Yamaha Motors
MASTER CYLINDER BOOT4L0-25862-01-00
Required: 1
BOOT, MASTER CYLINDER
Supersedes: 4L0-25862-00-00
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
11
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 2
BOLT, UNION
Supersedes: 90401-10034-00
$11.24
You save $1.25
-20%
12
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
In stock
Only 5 remaining
$3.04
You save $0.76
-10%
$21.59
You save $2.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
